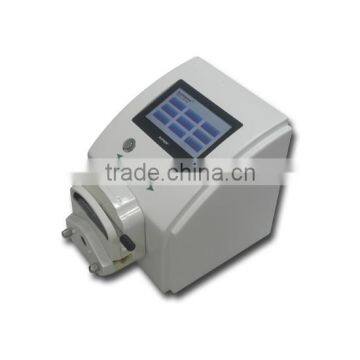

Single-channel screen touch peristaltic pump

Single-channel peristaltic pump is mainly used in laboratories, research institutes, industrial-grade precision flow transmission. With advanced ergonomic design and full touch screen operation, users is easy to operate.
Features:
True color LCD display, touch screen plus key operation;
Dosing three operating modes;
Precise motor rotation angle control technology, reducing the traditional time control allocation error distribution pattern due to the slow start motors and other factors;
Start and stop, reverse, speed, state memory (memory down), and other functions;
Resolution: 0.0375 speed rev / min;
Full function: a key control work at full speed for cleaning, emptying, etc.
Flow display, flow control, flow accumulation;
With flow correction function;
Super anti-jamming features, wide voltage design, suitable for complex power supply environment; You can install different head, pump head and the drive to achieve different combinations External foot switch enables start-stop control
With button lock function
Technical indicators:
Speed range 0.1 ~ 300rpm reversing reversible
Adjustment method Touch screen control
Display method 4.3-inch LCD screen
Speed Resolution 0.0375rpm
Power supply AC 220V ± 20% / 300W
External control: digital communication interface RS485 communication
Working environment
Ambient temperature: 0-40 ℃ Relative humidity<100%
Drive Dimensions: (L × W × H)170×176×187mm
Drive Weight: 2.5Kg
IP rating IP31
External control interface Start-stop control, direction control, speed control
Flow accuracy error:<0.5%

FOB Shanghai, Delivery Date:10 working days after payment
