Home > Products > glass cutting machine > Tempered Glass Cutting Machine Price With Optical Glass

Tempered Glass Cutting Machine Price With Optical Glass

FOB Price

US$ 4,000 - 8,000 / Set

1 Set(Min. Order)

Port China port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Glass Cutting Machine
Production Capacity	100%	Place of Origin	Shandong, China
Brand Name	PENN	Model Number	PC-3425
Voltage	AC380V	Power(W)	10.5KW
Dimension(LWH)	as per your request	Weight	1000kg
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

tempered glass cutting machine price with Optical glass

1) Taiwan HIWIN linear guideway and slider

2) The working table is artificial stone

3) Max. cutting speed: 1500mm/min

4) cutting 3-19mm glass thickness

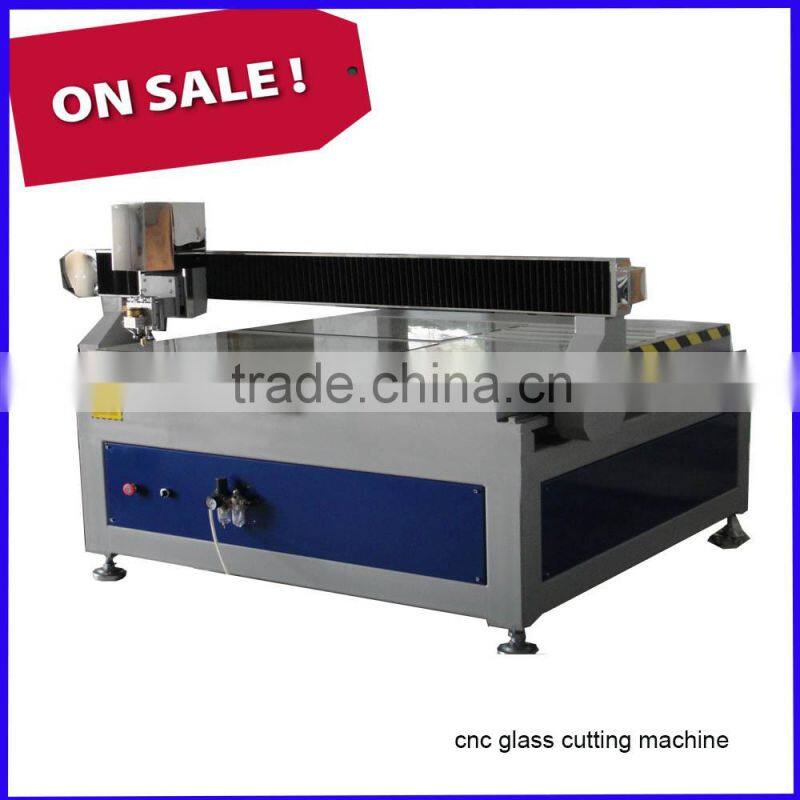

glass cutting machine

Product Description

1. Three axes with Taiwan HIWIN linear guideway and slider.

2. The system enables the machine high reliability, efficiency and lower error.

3. CAD designed graph and figure,automatic cutting,all the cutting data are fully

computer controlled.

4.The cutting machine programs of standard patterns and the combinations enable

users to cut out any shapes of ordinary glass at one direction.

5.Automatically looks for the zero position(X axis,the Y axis,the Z axis),After opening

machine and cutting finished,the three axle distinction automatically returns to the

initial zero position return.

6.Each kind of protection function causes the equipment movement to be reliable.

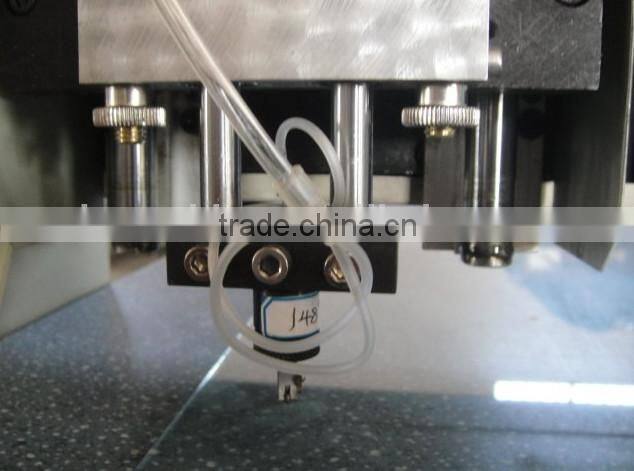

Tool bit protection.overload,hot protection,Around X axis,Y axis limit hardware,software

protection,the mutual function of locking.

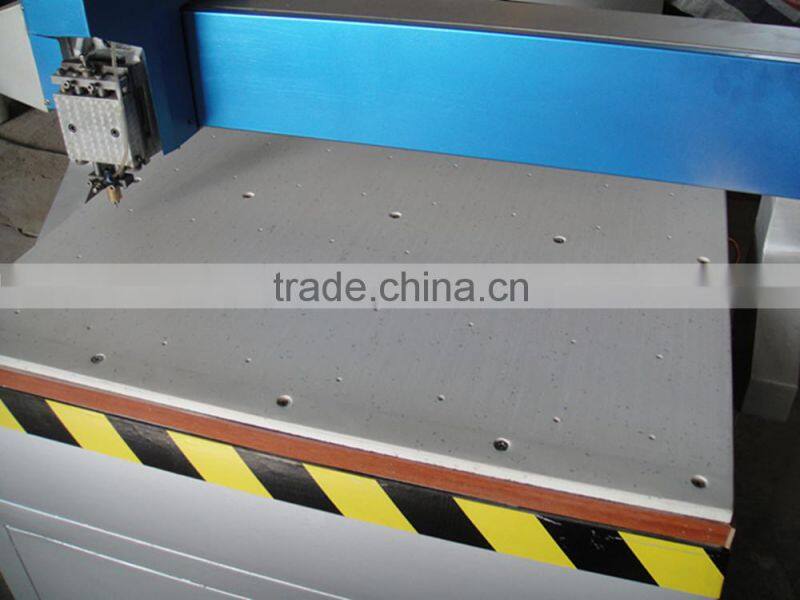

7.The working table of the machine is artificial stone,it is quite stable and flat.

8.It can cut any shape of glass.

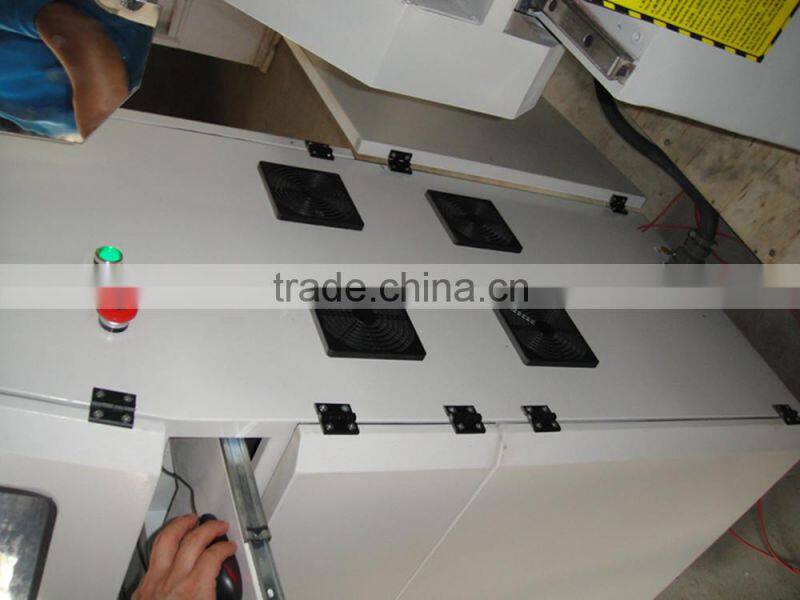

Production Photo

Technical Parameters

Model	PC-8070G	PC-1210G	PC2620G	PC-3425G

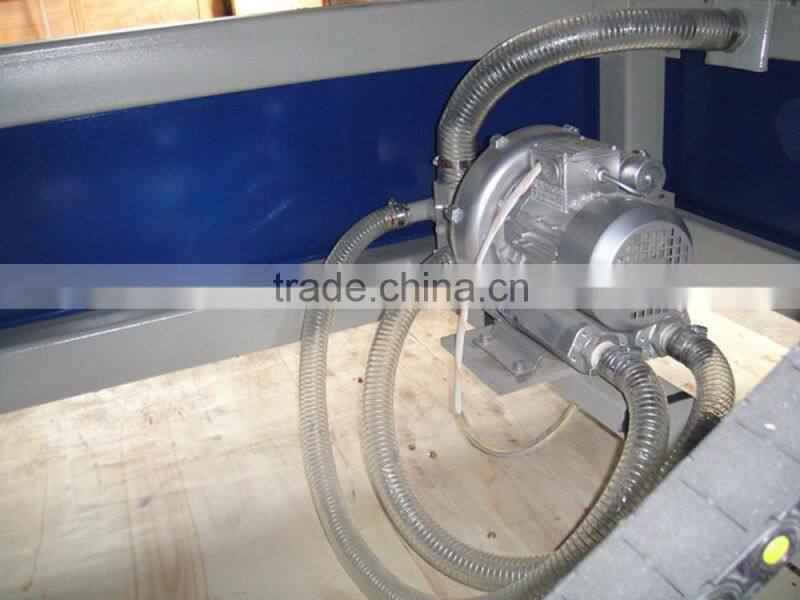

Air blower electrical machinery power	1.5KW	3KW	4KW	5.5KW
Cutting glass thickness scope	3-19mm	3-19mm	3-19mm	3-19mm
End product glass size error	±0.2mm	±0.2mm	±0.2mm	±0.2mm
Total output	6kw	8kw	9.6kw	10.5kw
Air course system pressure	0.5-0.8Mpa
Cutting precision	Parallelism: ±0.15mm
Cutting precision	Catercorner: ±0.20mm
Max cutting speed of different shape	650mm/min
Tool bit degrees rotation scope	0°-360°
Min cutting radius of curvature	3mm
Max straight line cutting speed	1500mm/min

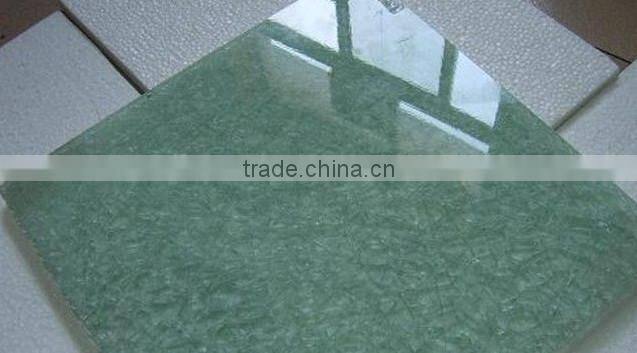

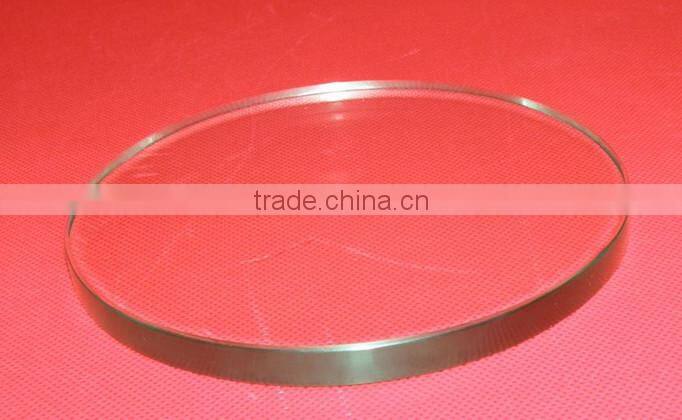

Samples

Machining Process

glass cutting machine

Factory Photo

Other machine

glass cutting machine

FAQ

1.Delivery time

Standard machine: 2 weeks after getting your deposit.

2.Logo& model no.

Machine with your logo&model no. is available

3.OEM

Available

4.Guarantee

1 year since you get the machine.(lens and mirrors 3 monthes,laser tube 8 monthes)

5.After sales service 24 hours online service in SKYPE,TRADEMANAGER,WHATSAPP type.

If machine has problems because of bad quality parts during guaranty,

we change new parts Free, Out of guaranty, we charge parts at cost price.

Whole lifetime technical support.

6.Packing

LCL: plywood case inner film with steel pipe, Silica gel dryer.

FCL: film cover, fixed in the container, Silica gel dryer.
