Home > Products > glass cutting machine > Glass Cutting Machine for Cutting 3-19mm Glass Thickness Scope Cheap Price China

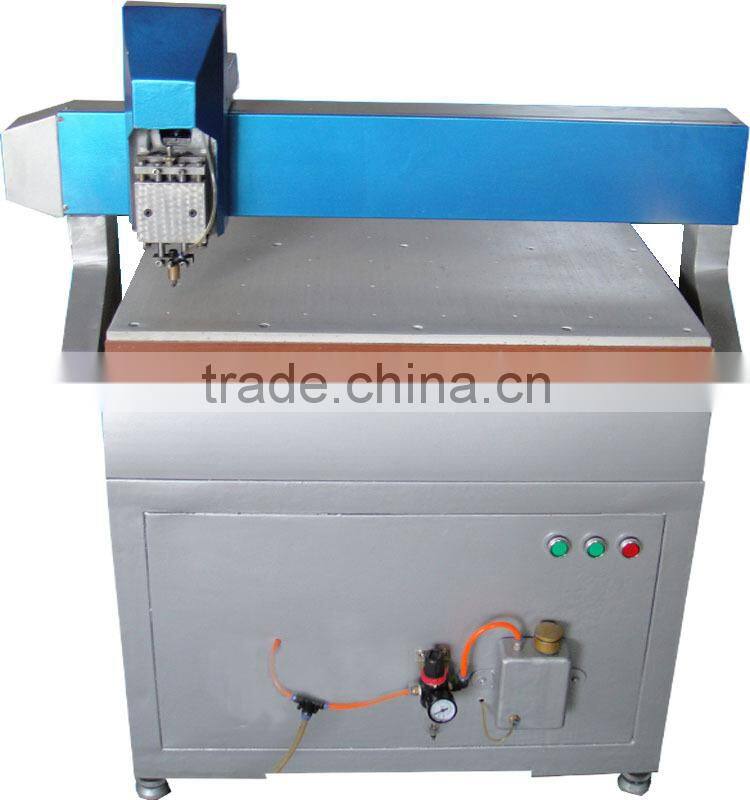

Glass Cutting Machine for Cutting 3-19mm Glass Thickness Scope Cheap Price China
- China port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ultra-thin Glass Cutting Machine With Car Mirror
-
Ultra-thin Cnc Glass Cutting Machine Price With Crystal Glass
-
Mobile Phone Glass Protector Cnc Glass Cutting Machine Cheap Price and High Presicion Quality Choice
-
Glass Cutting Machine for PC-3425 China Jinan
-
China 8070 Model Glass Cutting Machine With OEM Service
-
China Factory Direct Sale Cost Performance Cnc Cutting Machine for Glass
Product Details
| Condition | New | Machine Type | Glass Cutting Machine | |
| Production Capacity | 100% | Place of Origin | Shandong, China | |
| Brand Name | PENN | Model Number | PC-3425 | |
| Voltage | AC380V | Power(W) | 10.5KW | |
| Dimension(L*W*H) | as per your request | Weight | 1000kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
glass cutting machine for cutting 3-19mm glass thickness scope cheap price China
1) Taiwan HIWIN linear guideway and slider
2) The working table is artificial stone
3) Max. cutting speed: 1500mm/min
4) cutting 3-19mm glass thickness
glass cutting machine
1. Three axes with Taiwan HIWIN linear guideway and slider.
2. The system enables the machine high reliability, efficiency and lower error.
3. CAD designed graph and figure,automatic cutting,all the cutting data are fully
computer controlled.
4.The cutting machine programs of standard patterns and the combinations enable
users to cut out any shapes of ordinary glass at one direction.
5.Automatically looks for the zero position(X axis,the Y axis,the Z axis),After opening
machine and cutting finished,the three axle distinction automatically returns to the
initial zero position return.
6.Each kind of protection function causes the equipment movement to be reliable.
Tool bit protection.overload,hot protection,Around X axis,Y axis limit hardware,software
protection,the mutual function of locking.
7.The working table of the machine is artificial stone,it is quite stable and flat.
8.It can cut any shape of glass.
Model | PC-8070G | PC-1210G | PC2620G | PC-3425G |
|
Air blower electrical machinery power | 1.5KW | 3KW | 4KW | 5.5KW |
|
Cutting glass thickness scope | 3-19mm | 3-19mm | 3-19mm | 3-19mm |
|
End product glass size error | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
|
Total output | 6kw | 8kw | 9.6kw | 10.5kw |
|
Air course system pressure | 0.5-0.8Mpa | ||||
Cutting precision | Parallelism: ±0.15mm | ||||
Catercorner: ±0.20mm | |||||
Max cutting speed of different shape | 650mm/min | ||||
Tool bit degrees rotation scope | 0°-360° | ||||
Min cutting radius of curvature | 3mm | ||||
Max straight line cutting speed | 1500mm/min | ||||
glass cutting machine
Other machine
glass cutting machine
Dear Sir or Madam:Do you want to know more
details or price?
Do you want to see the video of the machining
process?
Ok,please contact me.We will be waiting for your call or letter!
Contact Us
- Jinan PENN CNC Machine Co., Ltd.
- Contact nameAbby Chu Chat Now
- Phone0086-531-69956820
- AddressRm. 1210, Jiaxin Business Building, 154 Huayuan Rd., Licheng Area
