DB-520B Automatic Plastic Raising Seedling Tray Thermoforming Machine
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Thermoforming Machine | |
| Plastic Type | Other, PP/PS/PET/PVC | Product Type | Other, Lid/tray/box/container | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Bocheng | Model Number | DB-520 | |
| Voltage | 380V 50HZ | Power(W) | 16KW | |
| Weight | 4500KG | Dimension(L*W*H) | 6000*1800*2000mm | |
| Certification | CE Certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

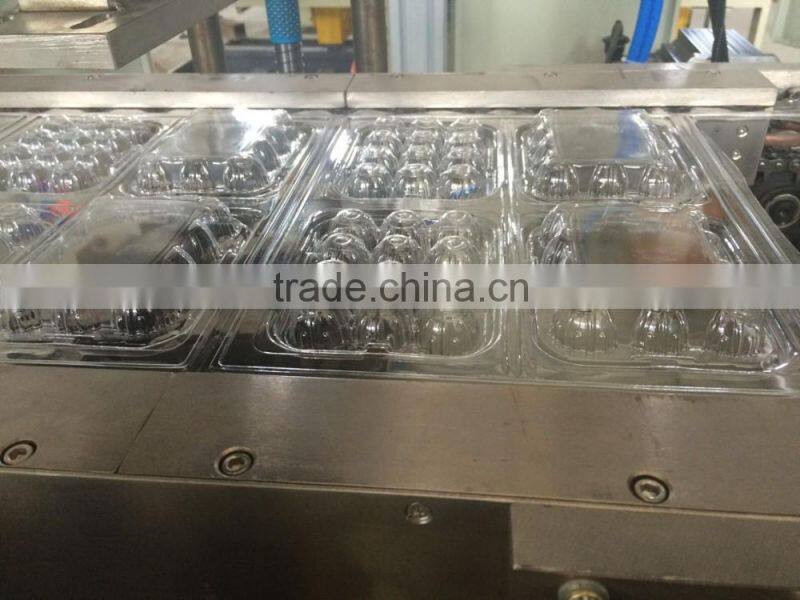

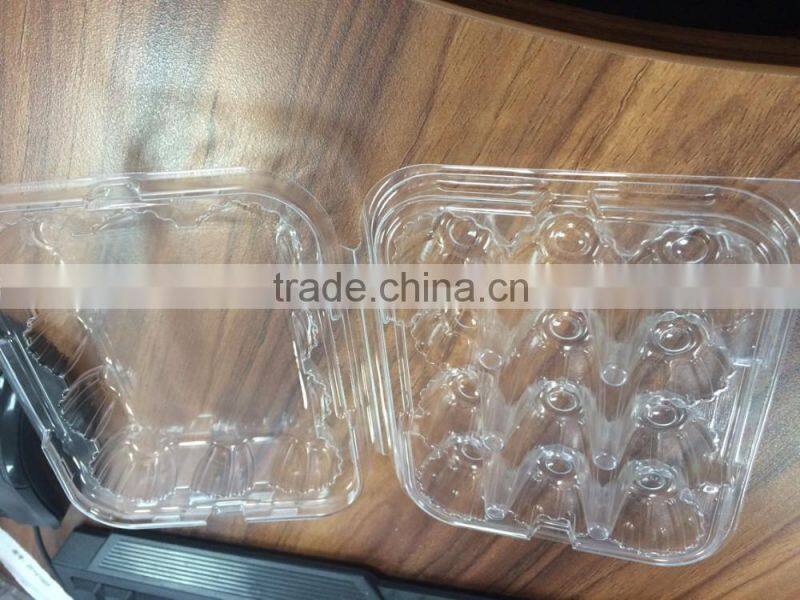

DB-520B Automatic Plastic Raising Seedling Tray Thermoforming Machine
Main features
1.Compact structure, smooth moving,convenient operation and easy maintenance.
2. Infinitely variable frequency speed regulation, PLC circuit control panel.
3.Adjustable route, mould changing more easily.
4. It adopts manipulation grip to feeding, accurate and reliable synchronously.
5.Designing all mould according to customers’ requirements.
Overview
According to the market demand and the production technology. Our research staffs first developed the new product. Full Automatically Lid Machine. It is an automatic multi-function machine, improving the hygiene standards of food packaging. Not only solve the problem efficiently about the matters of large capital investment,amount labor input,complicated production process and low hygiene standard of production in plastic material producing. Such asPP PCPETPVC. It also used widely, in packaging of hardware,food,medicine, PP/PSPETPVC plastic material. this machine with exquisite appearance and reasonable price. Is very popular with the customers at home and abroad.
Main technical parameters
3. Main technical parameters
Model | DB-520A | DB-520B |
Punch Frequency | 15-35punch/min | 10-35punch/min |
Material | PP, PS, PET, PVC, EPS, etc. | |
Max. Forming Length | 320MM | 320MM |
Max. Forming Width | 520mm | 520MM |
Max. Forming depth | 50 | 70MM |
Upper and Lower Forming Power | 22kw | 22KW |
Motor Power | 6KW | 6KW |
Total Power | 3-phase 4-line 380V 50Hz (220V 60Hz) 22kw | |
Water Consumption | 0.3m³/h (Tap water or recycle water) | 0.3m³/h (Tap water or recycle water) |
Air Pressure | 0.5-0.8(mpa) | 0.5-0.8(mpa) |
Exhaust Volume | ≥0.8M3/min | ≥0.8m3/min |
Pressure of water supply | 0.2MPa | 0.2MPa |
Machine overall size(L×W×H) | 6000*1800*2000mm | 6000*18000*2100mm |
Packing Size(L×W×H) | 6200*2000*2200mm | 6200*2000*2300mm |
The maximum width of material | 550mm | 550mm |
Weight | 4500KG | 5000KG |
