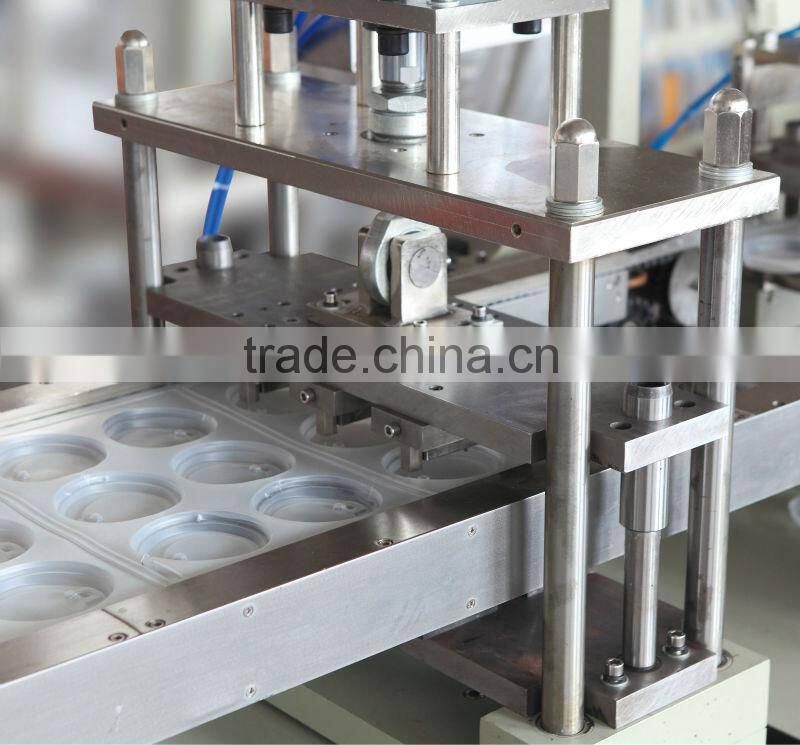

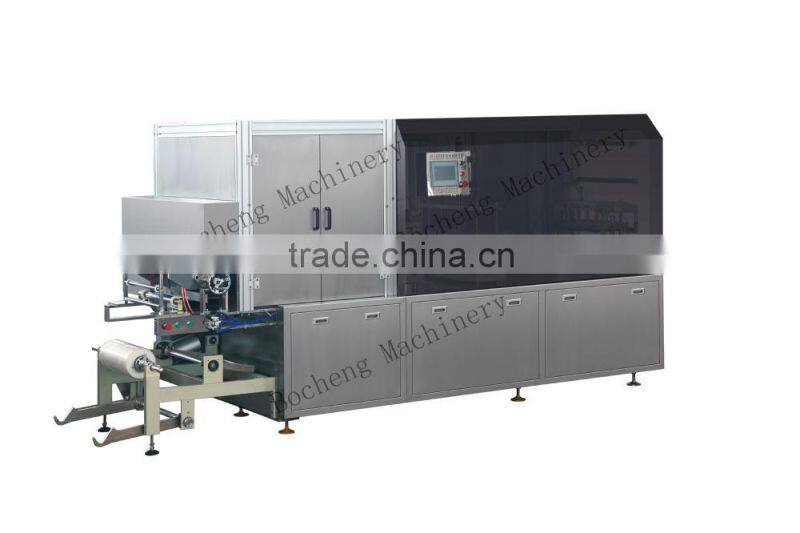

Ruian Automatic Plastic Square Tray Thermoforming Machine
- Ningbo
 - T/T Credit Card

You May Like
-


Automatic Plastic PP/PVC/PET Square Tray Forming/Thermoforming Machine DB-450PP
 -


High Quality Automatic Plastic Square Tray Machine DB-450PP
 -


Automatic Plastic BOPS Machine BC-515
 -


Full Automatic BOPS Forming Machine For Plastic Container With Lid BC-515
 -


Automatic Plastic PP Material Thermoforming Machine (heighten:100MM)
 -


Automatic Plastic PP Material Forming Machine Heighten 100MM

Product Details
| Condition | New | Type | Thermoforming Machine | |
| Plastic Type | PP | Product Type | Other, cup lid | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Bocheng | Model Number | DB-450PP | |
| Voltage | 380V 50HZ | Power(W) | 16KW | |
| Weight | 2200kg | Dimension(L*W*H) | 5000*1400*1700mm | |

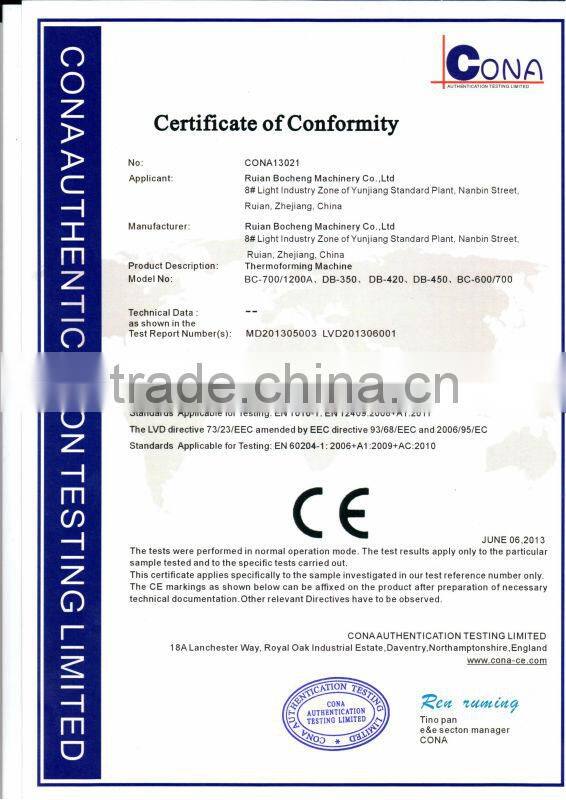

| Certification | CE Certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ruian Automatic Plastic Square Tray Thermoforming Machine
Main features
1.Compact structure, smooth moving,convenient operation and easy maintenance.
2. Infinitely variable frequency speed regulation, PLC circuit control panel.
3.Adjustable route, mould changing more easily.
4. It adopts manipulation grip to feeding, accurate and reliable synchronously.
5.Designing all mould according to customers’ requirements.
Overview
According to the market demand and the production technology. Our research staffs first developed the new product. Full Automatically Lid Machine. It is an automatic multi-function machine, improving the hygiene standards of food packaging. Not only solve the problem efficiently about the matters of large capital investment,amount labor input,complicated production process and low hygiene standard of production in plastic material producing. Such asPP PCPETPVC. It also used widely, in packaging of hardware,food,medicine, PP/PSPETPVC plastic material. this machine with exquisite appearance and reasonable price. Is very popular with the customers at home and abroad.
Main technical parameters
cutting frequency  | 15-30times/min  |
power  | 380v/220v/50Hz  |
route adjustable scope  | 30-160mm  |
max. forming depth  | 50mm  |
max. forming area  | 470×260mm  |
total power  | ≥12KW  |
air consumption  | >0.5m³/MIN  |
air pressure  | 0.2-0.8Mpa  |
overall dimensions  | 5200×1600×1900mm  |
weight  | 2200kg  |
