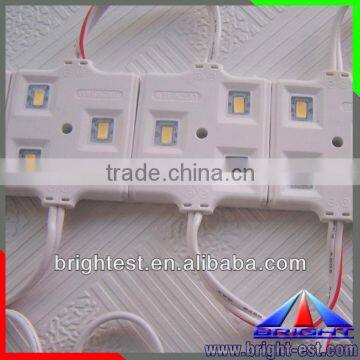

3838 injection LED Module 12V 5630led
- 50000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
IP67 Waterproof Samsung Module LED 5630
-
Samsung SMD 5630 12V LED Modules
-
DMX RGB5050 Module, IP65 Waterproof
-
backlight 5630 LED Module, Samsung LED Module SMD, Injection LED Module 2pcs/3pcs/4pcs
-
square led modules, 5630 3leds module, SAMSUNG
-
waterproof led module with best price, 5630 samsung led module with ce&rohs
Product Details
| Model Number | BG-0214-4816 | Chip Material | GaP | |
| Emitting Color | Other, White,Green,Blue,Red... | Luminous Intensity | Bright | |
| Luminous Flux(lm) | 90 Lm | Power | Other, 0.9W, 0.9W | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2700-7500K | |
| Operating Temperature(℃) | -20, +40 | Storage Temperature(℃) | -20, +40 | |
| Place of Origin | Guangdong, China | Brand Name | Bright | |
| Certification | CE |
Product Description
Specifications
SMD 5630 LED Modules1.Voltage:DC12V
2.2pcs Samsung led
3.Power:0.9W
4.Waterproof IP67
SMD 5630 LED Modules,Samsung LED Module
Advantages of light module brightness higher, so by the luminous word blister evenly. LED modules are
mainly applicable to ultra-thin light boxes, advertising signs, such as use of backlighting.
With high efficiency and energy saving,environmental protection, cold light source, no radiation, long life
and so on. Supply voltage is normally 12V. Customer needs can also be designed in accordance with the
other supply voltage.
Features:
1) High Lumen SMD 5630 LED
2) Waterproof IP68 and Shock or vibration resistant
3) Back with 3M double side tape for convenient mounting
4) Easy installation and easy maintenance, every module can be used as one unit
5) Wide more than 120 degree beam angle
6) Long life span as 50,000 - 80,000 hours
7) Various colors: single white, warm white, red, green, blue, yellow .
8) Energy saving and environmental friendly
Technical Parameter:
LED Chip Type | SMD5630 led |
LED Chip Brand | Samsung |
LED Chip Quantity | 2leds/pc (1leds/3leds/4leds optional) |
LED Chip Brightness | 35lm/chip |
Wattage | 1.8W |
Beam Angle | >120 degrees |
Working Voltage | 12V /24VDC |
Working Current | 100ma |
Protection Grade | IP65 - IP68 |
Working Temperature | -30 ~ 60 centigrade |
Lifespan | >50,000 Hours |
Color | Cold White/White/Warm White/Red/Green/Blue/Yellow Optional |
Advances:
1) Channel Letter lighting
2) Advertisement broad Backlighting;
3) Advertisement signs Backlighting;
4) Advertisement Light Boxes Backlighting etc.
Express Delivery:
Payment Terms:
1.T/T (in advance)
2.Paypal
3.Western Union
