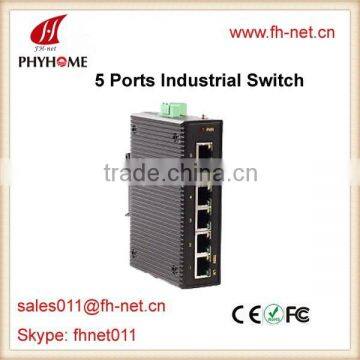

5 Ports Industrial Switch Din-Rail Unmanageable

Port

Port type

5 10/100 Base-TX port

Twisted-pair

RJ45 port, 10/100Base auto negotiation speed and auto MDI/MDI-X connection

Fiber optic port

None

Communication distance

Twisted-pair

0~100m

Fiber optic line

None

Topology Structure

Line/Star/Network type

Support

Power supply

Input Voltage

24VDC:12-36V 48VDC(customer order)

AC/DC:AC85-265V/DC110-370V

Watt loss

<5W

Alarm output

Max. Current: 24V/1A, Max. voltage: 500V

Interface

Backplane bandwidth

1.6G

Filtering and forwarding

148810bps

MAC address

2K

Flow control

Full-duplex flow control, semi-duplex interface flow control

Broadcast Storm Control

Supports broadcast data packets and broadcast storm control.

The data packets out of the limited time will be abandoned.

Environmental Limits

Operating

Standard Models: -40℃~75℃

Temperature

Storage Temperature: -45℃~85℃

Ambient Relative Humidity

0~95%(non-condensing)

Physical Characteristics

Dimension

114mm×33mm×80mm

Installation

DIN-Rail

Weight

0.3kg

Case protection grade

IP40

Package

Protection class with aluminum casing, no flow fan.

Electromagnetic compatibility

IEC61000-4-2 electrostatic prevention

±8kv contact discharge, ±15kv air discharge

IEC61000-4-3 electromagnetic field

10V/m(80~1000MHz)

IEC61000-4-4 fast transient response pulse signal port

±4kv power line,±2kv data line

IEC61000-4-5 surge guard signal port

±4kv(line-GND)±2kv(line-line), ±2kv data line

IEC61000-4-6 radio frequency presentation

3V(10kHz~150kHz),10V(150kHz~80kHz)

EN55022

EN55022 Class A

IEEE standard

IEEE802.3,IEEE802.3u,IEEE802.3x

FHC200501

5 10/100 Base-TX port

Power Supply: DC 24V

FHC200502

5 10/100 Base-TX port

Power Supply: AC 220V
