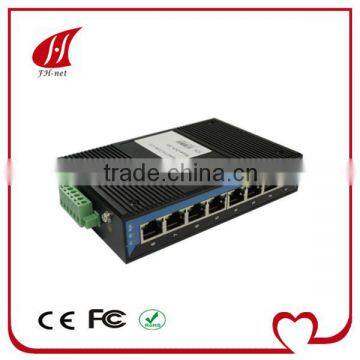

DIN-Rail Industrial Ethernet Switch 8 10/100 Base-TX

Port

Port type

8 10/100 Base-TX port

Twisted-pair

RJ45 port, 10/100Base auto negotiation speed and auto MDI/MDI-X connection

Fiber optic port

None

Communication distance

Twisted-pair

0~100m

Fiber optic line

None

Topology Structure

Line/Star/Network type

Support

Power supply

Input Voltage

24VDC:12-36V 48VDC(customer order)

AC/DC:AC85-265V/DC110-370V

Watt loss

<5W

Alarm output

Max. Current: 24V/1A, Max. voltage: 500V

Interface

Backplane bandwidth

8.8G

Filtering and forwarding

148810bps

MAC address

2K

Flow control

Full-duplex flow control, semi-duplex interface flow control

Broadcast Storm Control

Supports broadcast data packets and broadcast storm control. The data packets out of the limited time will be abandoned.

Environmental Limits

Operating

-40°C~75°C

Temperature

-45°C~85°C

Ambient Relative Humidity

0~95%(non-condensing)

Physical Characteristics

Dimension

144mm×33mm×97mm

Installation

DIN-Rail

Weight

0.5kg

Case protection grade

IP40

Package

Protection class with aluminum casing, no flow fan.

Electromagnetic compatibility

IEC61000-4-2 electrostatic prevention

±8kv contact discharge, ±15kv air discharge

IEC61000-4-3 electromagnetic field

10V/m(80~1000MHz)

IEC61000-4-4 fast transient response pulse signal port

±4kv power line,±2kv data line

IEC61000-4-5 surge guard signal port

±4kv(line-GND)±2kv(line-line), ±2kv data line

IEC61000-4-6 radio frequency presentation

3V(10kHz~150kHz),10V(150kHz~80kHz)

EN55022

EN55022 Class A

IEEE standard

IEEE802.3,IEEE802.3u,IEEE802.3x
