Jinan 3 Axis Aluminum Profile Cnc Milling Machine With X-axis Feed Rate 0~60m/min
- China port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Jinan 3 Axis UPVC Profile Cnc Milling Machine With Spindle Power 5.5kw
-
Jinan 3 Axis Profile Cnc Milling Machine With Z-axis Stroke 200mm
-
Lubrication System Multiheads Cnc Carver
-
8 Spimdles Cnc Carver on Hot Sale With Low Price
-
High Configuration Multi-head Cnc Router for PMMA Plate Cutting
-
Double Heads Cnc Router With Vacuum Table for Wood
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | PENN | |
| Model Number | PC-3000 | Voltage | AC380V | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 5100x1420x1750mm | |
| Weight | 3000kg | Certification | C1 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

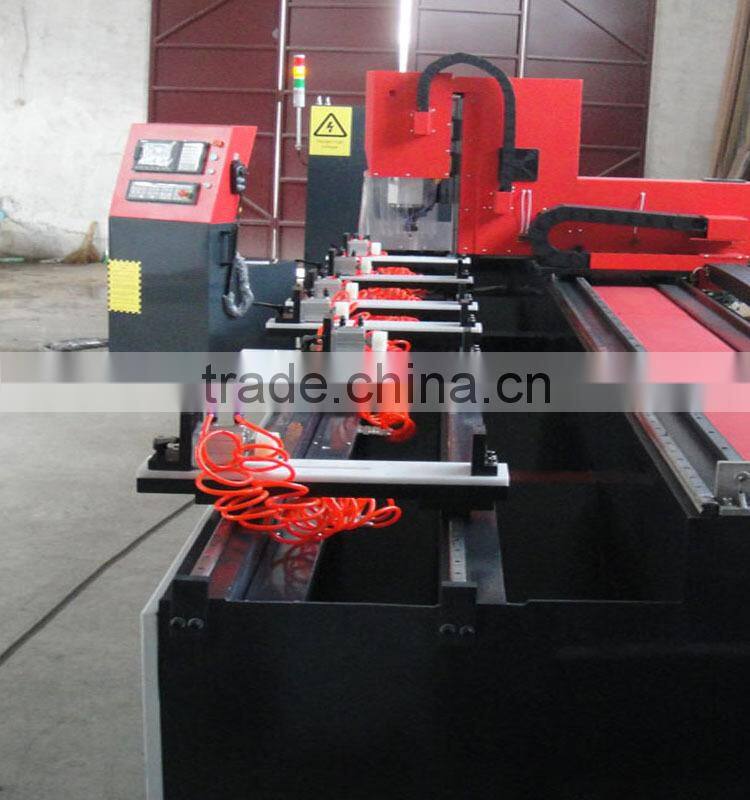

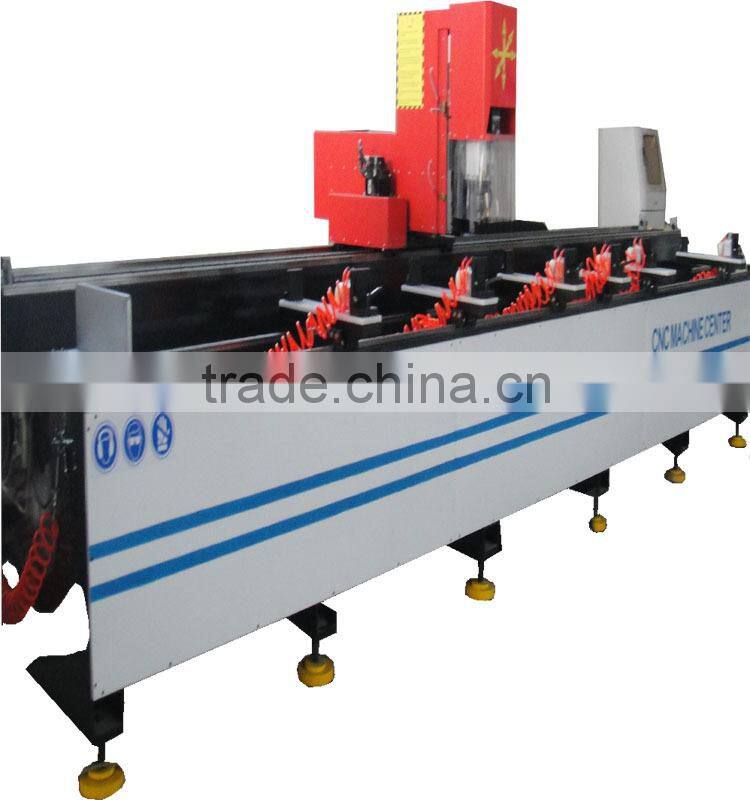

Jinan 3 axis aluminum profile cnc milling machine with X-axis feed rate 0~60m/min
1) Spindle Power 5.5kW
2) 3000kg
3) Working Pressure 0.6~0.8MPa
4) Total Power 7.5kW

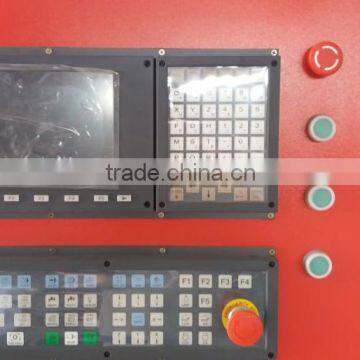

1.Using advanced industrial CNC systems, friendly human-machine interface,device operation is simple
2.Suitable for aluminum alloy, aluminum and wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing

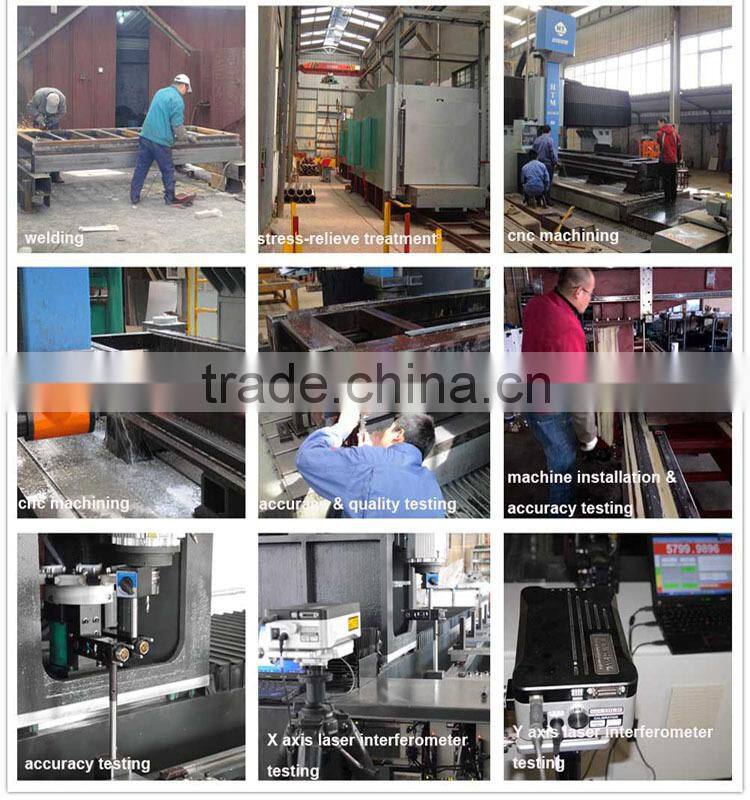

3.Bed made of high strength steel welded structure, completed after thermal aging treatment of machining in one clamping
4.Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision

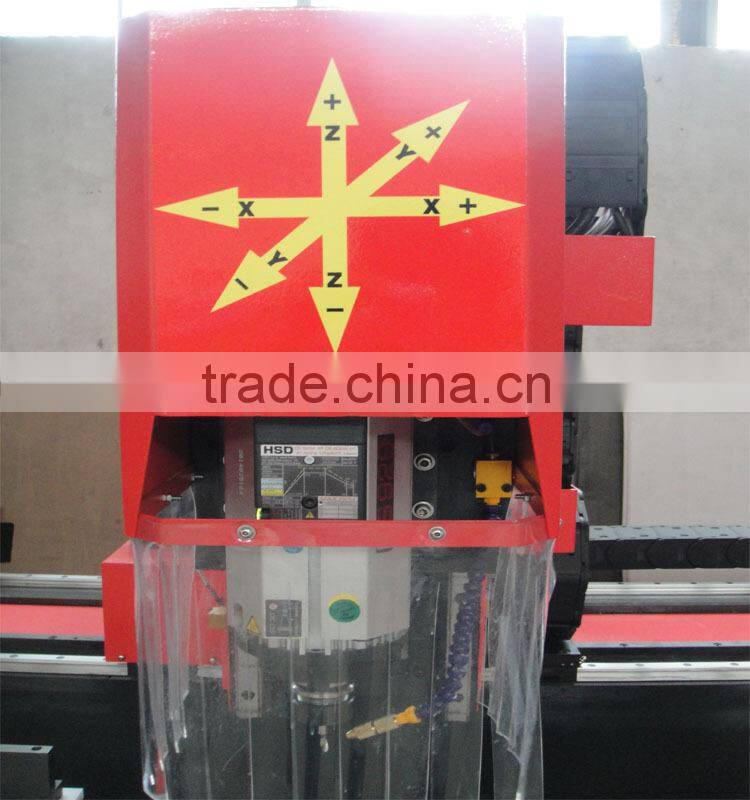

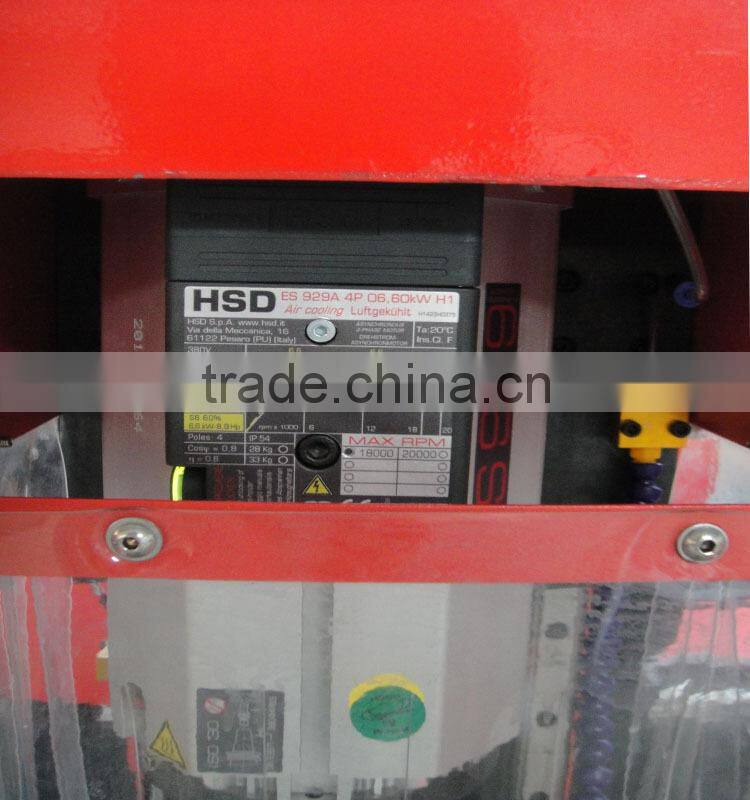

5.High-quality imported high speed spindle ensure stability, stability of rotation noise, cutting ability
X-axis stroke | 3000/4000/5000mm | Y-axis stroke | 300mm |
X-axis feed rate | 0~60m/min | Y-axis feed rate | 0~48m/min |
X-axis positioning accuracy | ±0.05mm | Y-axis positioning accuracy | ±0.05mam |
Z-axis stroke | 200mm | Repeat location accuracy | ±0.02mm |
Z-axis feed rate | 0~20m/min | Roughness | Ra 6.3 um |
Z-axis positioning accuracy | ±0.02mm | Spindle Power | 5.5kW |
Power Specification | 380V/50Hz/60HZ | Spindle Speed | 0~24000rpm |
Total Power of Machine | 7.5kW | Working Pressure | 0.6~0.8MPa |
Machine Size | 5100x1420x1750mm | Weight | 3000kg |
High quality China cnc router 1325 for HDPE
