Home > Products > Capacity at 5kg > 50 Mesh Rotary Vibrating Screen
50 Mesh Rotary Vibrating Screen
- Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Circular | |
| Application | Food Processing | Place of Origin | Shanghai, China | |
| Brand Name | Navector | Model Number | NVS | |
| Voltage | 380V | Power(W) | 0.1-1.5KW | |
| Dimension(L*W*H) | Dia.: 400-2000 mm | Weight | 50- 1200 Kg | |
| Certification | CE ISO BV SGS GMP FDA CCC | Warranty | 12 Months, 14 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
50 mesh rotary vibrating screen
Ultrasonic Vibrating Screen Specification:
Model | NVS-400, NVS-600, NVS-800, NVS-1000, NVS-1200, NVS-1500 |
Diameter | 400mm,600mm,800mm,1000mm,1200mm,1500mm |
Layer | 1~4 decks |
Mesh | 50~625 mesh |
Mesh material: | Stainless steel 304,316L,Carbon Steel |
Feature: | Dust-proof, oil-proof, heat-proof,Low carbon, energy-saving, environmental |
Using Range: | Grinding powder/Chemical power/Medicine powder/Battery powder |
Voltage: | 3 phase, 380V, 50HZ or |
Power: | 0.1kw,0.2kw, 0.5kw, 0.7kw, 1.5kw |
Frequency: | 33KHZ |
Screening ratio | ≥95% |
Warranty: | 12 months |
hppt:///watch?v=E3hB77SXwpE
hppt://www./watch?v=I7OF7EZMxKY
Applications
1.Master Shipper: Standard shipping wooden case
2.Inner Package: Plastic wrap
Guarantee After-sale Service:
- 13 months warranty lasting
- 24 hours online/tele-technical support
- On-site service
Shanghai Navector
The leader in the separation technology in China!
Full Technical support and Spares Service to keep your Lines Running.
Qualified Separator Manufacturer:
- CE/SGS/GL/BV Certificate
- OEM and Reasonable Factory Price
- Sieve from 5mm-15 Micro
- 13-month warranty
Certifications
Our factory
Exhibition Pictures
Why choose us?
1. WE are Factory
2. Professinal technical support
3. Low price
4. Excellant quality
5. Free testing
1. What it does?
Separate solids from liquids or segregate dry materials into various sizes.

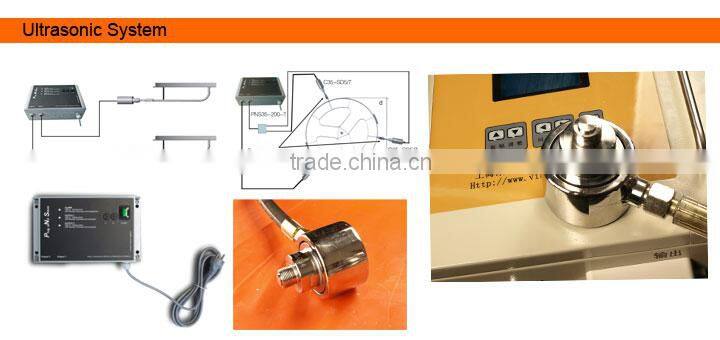

2. Any self-cleaning devices on the sieving machine?
Bouncing ball or Ultrasonic system.
3. How many kinds of material are supported?
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part stainless steel, no contact part carbon steel.
4. About the phase and the voltage?
0.12-0.55 kw single phase or three phase.
0.55-2.2 kw three phase.
110V, 220V, 380V, 415V, 450V, 480V. (50HZ or 60 HZ).
5. OEM order and labeling services are supported?
Yeah. And we seek global partners.
6. Whether the site visits is supported or not?
Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. half hour to both HongQiao and Pudong international Airport.
No Matter where you are located,
Shanghai Navector will provide you
with the best screening and separating service in the industry
