Home > Products > Salt bath furnace > High Quality Heat Treatment Salt Bath Furnace

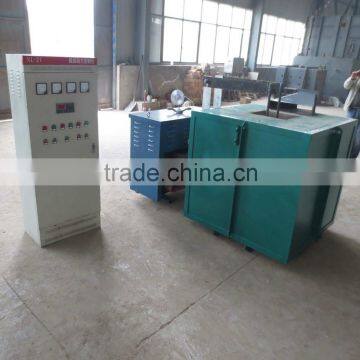

High Quality Heat Treatment Salt Bath Furnace
- Any port of China.
- T/T
You May Like
-
DM Series Salt Bath Electrode Furnace for Measuring Tools/cutting Tools and Drill Bits
-
Salt Bath Tempering Furnace for Drill Bits, Cutting Tools and Cutting Tool
-
DM-100-8 Electrode Salt Bath Tempering Furnace
-
Energy-saving Salt Bath Heat Treatment Furnace for Measuring Tools/cutting Tools/drill Bits
-
Immersed Electrode Salt Bath Furnace for Measuring Tools, Cutting Tools and Drill Bits
-
Hot-sale Immersed Electrode Salt Bath Furnace
Product Details
| Condition | New | Type | Other, Natural Gas Type Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | DM-75-6 | |
| Voltage | 380v,also can be customized according to user's needalso can be custom | Power(W) | 75kw | |
| Dimension(L*W*H) | 550mm*400mm*650mm | Weight | 1100kg | |
| Certification | ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Salt bath furnace
Brief
Immersed electrode salt bath furnace is national standard energy-saving batch type heat treatment furnace, used for heating metal parts in melting salt or salt-mixture liquid, Mainly used for measuring tools, cutting tools and drill bits.,etc for quenching, annealing, tempering and normalizingheat treatment.According to the needs of heat treatment temperature, can be divided into: low temperature, medium temperature and high temperature.
Advantages
1. Large comprehensive heat transfer coefficient, fast heating speed;
2. Uniform heating and small deformation;
3. Big thermal capacity, small fluctuations in temperature, easy to achieve constant temperature heating;
4. Easy to implement the chemical heat treatment.
Technical Parameters
Model | DM-75-6 | DM-75-8 | DM-75-13 | DM-100-6 | DM-100-8 | DM-100-13 | |
Rated power(KW) | 75 | 75 | 75 | 100 | 100 | 100 | |
Rated voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | |
Electrode voltage (V) | 11.25-30.4 | 11.25-30.4 | 11.25-30.4 | 11.25-31 | 11.25-31 | 11.25-31 | |
Rated electrode voltage (V) | 25 | 25 | 25 | 28 | 28 | 28 | |
Rated temperature(℃) | 650 | 850-1000 | 1300 | 650 | 850-1000 | 1300 | |
Furnace hearth size | Length(mm) | 550 | 450 | 350 | 500 | 550 | 450 |
Width (mm) | 400 | 350 | 300 | 400 | 400 | 350 | |
Height (mm) | 650 | 650 | 600 | 650 | 650 | 600 | |
No-load power loss(KW) | ≤26 | ≤31 | ≤36 | ≤46 | ≤52 | ≤55 | |
Max.loading capacity(kg) | 180 | 120 | 110 | 210 | 140 | 180 | |
Notes:Various different sizes furnace can be customized as user’s needs.
Contact Us
- Xinxiang Zhongli Furnace Industry Co., Ltd.
- Contact nameJane Sun Chat Now
- Phone0086-373-3800100
- AddressXiaodian Industry Zone East, Xinxiang, Henan
