Steel Plate Painting And Drying Shot Blasting Machine

Specifications

Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

Shot blasting machine

Specially designed for blasting steel plate, sectional steel, beams or structure.

Shot blasting machine for steel plate, section steel, beams, bars is designed and produced by adopting the advantages of similar products from both within the country and abroad.

The rusting cleaning part (shotblast cleaning) adopts high-efficient blast wheel and full shutter type shot sand separator.

The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method.

The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.
It is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.

Technical Specification:

Machine Model: QXY2500

1. Width of steel: 2500 mm

2. Inlet opening: 2500 * 600mm

3. Length of steel: 1200-12000 mm

4. Roller speed: 0.5-6 m/min

5. Thickness of plate: 3-60 mm

6. Quantity of turbine: 6 sets

7. Motor power of turbine: 22Kw * 6

8. Abrasive cleaning: rolling brush and blowing device

9. Dust collector: cartridge type dust collector

10. Power consumption: 470 Kw

Technique  parameter:

Notice :

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.

1.what kind of workpiece will you clean ?

2.The workpiece size,length ,width and height of maximum workpiece?

3.How many workpiecs do you want to clean per day ?

Based on this question,the detailed technical proposals will be sent to you for reference.

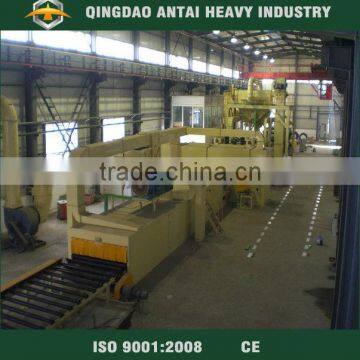

Photos of shot blasting machines:

1.Production time of 40 days steel plate shot blasting machine

2.Installation and commissioning time:20 days

3. installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation

and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD

70 per day per person.

4.warranty time of shot blasting  machine:12 months from date of commissioning completion,but no more

than 18 months from date of delivery.

5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery.

6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,

manual book,electric wiring diagram,electric manual book and maintenance book ,etc
