shot blasting machine for cleaning steel plaste and profile steel

Specifications

Roller through type shot blasting machine

Technical parameters of this type of equipment:

Pipe diameter: ≥ 10mm

Length: ≥ 1m;

Blasting speed: 0.5~4m

Blasting cleaning Standard: Sa2.5/Sa3

Introduction

Protecting plate

The cabinet of main impacting district has the high wear-resistant steel manganese 13 (Man 13). This protecting plate is our new research, installing more simply and repairing more conveniently.

Sealed steel import and export

Given the specific characteristics of the work piece cleaning, shot blasting machine designed for quick exchange of the door of the chamber body. When the clean-up of large-diameter work piece, the replaced door Sandy; When cleaning small diameter of the work piece when the door to put on small-ore.

Work piece drive mechanism

Shot blasting machine of this type can be assigned a variety of work piece drive mechanism, Such as Tire-Ramp Roller and so on.

Blast wheel

This machine's blast wheel installed in the suitable location of the cleaning cabinet (Side or Top). It can be very good clean-up different diameter of the work piece.

Shot recycling & purifying system

This system can be divided into the Abrasive recycling system and purify System, they consist of abrasive hopper, Abrasive conduit, shot valves (Blast wheel Assemblies), screw conveyors, bucket Elevator, abrasive /dust and separator, etc.

Dust-removing system

This system consists of collector, fan and connecting pipes (from the clean-up room, separator to the collector) and so on. Connecting pipe equipped with butterfly valves for regulating the air volume, so that the work of the various parts of equipment to achieve the best state, so that no dust in the course of their work spillover.

Another form of Steel pipe surface shot blasting machine. Two Shot Blast wheel in the browser layout of the upper body. Work side of the work piece while rotating through the shot blasting clean-up room.

 Other roller through type shot blasting machine Parameter:

If the above model not suit for your work piece, please tell me your need and the following information then we will send you the best technical drawing to you.

1. The max. Length of the work piece.

2. The max. Width of the work piece.

3. The max. Height of the work piece.

4. The product you need to blast the work piece (how many T or piece per day or per month?)

5. The power supply you need (such as 380V, 3P, 50HZ)

6. Better to send us the work piece photo or drawing.

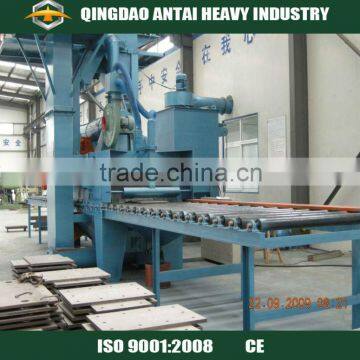

This model Product photo:
