H beam steel shot blasting and cleaning machine

Specifications

•Founded in 2003, is mainly focus on the prouduction and development of casting machinery and enviromental protection.

•After exploring market for 10 years, it gradually formed three leading products: surface cleaning, sand treatment, environmental protection equipment.

•One of the industrialization of entity collecting scientific reseaech, development,production and operation.It has fomed the domestic engineering center of complete sets equipment for shot blast cleaning machine.

•Production desigh all adopt CAD computer aided design.The production base and thchnology development center of casting machinery which has whole variety, high technical content in China foundry machinery industry.

•As a foundry machinery professionaol manufactuers, the company has advanced level at technology, product quality and automation level in the same industry at home.

• Specially equipped with wear-resistant parts factory, to provide customers the best quality accessories service.

Q69 series steel plate and section steel pretreatment line is mainly composed of such stage as preheating, shot blast cleaning, painting and stove, etc.

It is suitable for the surface derusting and painting craft for steel plates and sections in such industries as shipmaking, automobile making, locomtive vehicle, bridge, and machinery.

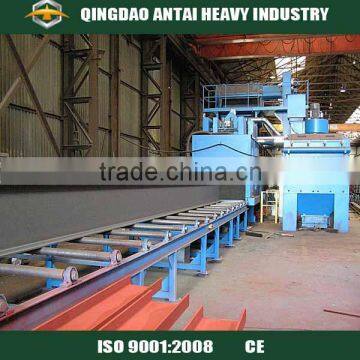

This steel structure / H beam shot blasting machines belong to the roller type shot blast-cleaning machine ,and mainly used to de-stress and surface de-rust the steel structures, such as Large-scale H steel, etc. In the construction and bridge professions.

Technical specification:

Model: Q6940

1. Effective cleaning width: 4000 mm

2. Dimension of inlet opening: 4000*400 mm

3. Length of cleaning piece: 4500-18000 mm

 4. Roller speed (stepless speed regulation): 2-8 m/min

5. Thickness of cleaning steel plate: 4.5-100 mm

 6. Abrasive flow rate: 8*360 kg/min

7. Gross weight of machine: 75 t

Any steel plate shot blasting machine can be designed according to your requirement.

1.    Production time of steel plate shot blasting machine : 30-50 days

2.    Installation and commissioning time: 20 days

3.    Installation and commissioning issue: Antai will send 1 – 2 technicians to help with machine installation and commissioning for our steel plate shot blasting machine, customer pays for their tickets, hotel and diet. Salary is USD70 per day per person.

4.    Warranty time of steel plate shot blasting machine: 12 months from date of commissioning completion, but no more than 18 months from date of delivery.

5.    Payment term: 30% as down payment, 70% balance at sight of B/L copy before delivery.

6.    Antai supply full English (or Russian) documents, including general installation drawing, pit design drawing, manual book, electric wiring diagram, Electric manual book and maintenance book, etc.
