Phocos 12V Solar Panel Solar Charge Controller
- Qingdao
You May Like
Product Details
| Place of Origin | China | Brand Name | Phocos | |
| Model Number | CML 05 Solar Charge Controller | Application | Solar System Controller | |
| Rated Voltage | 12V | Maximum Current | 5A |
Product Description
Specifications
12V Solar Panel Solar Charge ControllerBattery state of charge display with 3 LED
Automatic 12/24 V detection
PWM-regulation

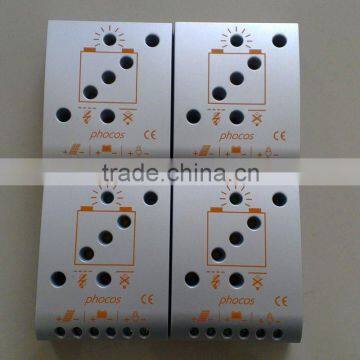

Phocos 12V Solar Panel Solar Charge Controller
- Parameter of solar charge controller
Type | CML 05 |
System Voltage | 12/24 V auto recognition |
Max. Charge/Load Current | 5 A |
Float Charge | 13.7/27.4 V (25°C) |
Boost Charge | 14.4/28.8 V (25°C), 2Std. Activation:battery voltage<12.3/24 |
Equalization | 14.4/29.6 V (25°C), 2Std. Activation:battery voltage<12.1/24 |
Deep Discharge Protection State if Charge Dependent Voltage Dependent Reconnect Level | 11.4-11.9 V/ 22.8-23.8 V 11.0/22.0 V 12.8/25.6 V |
Overvoltage Protection | 15.5/31.0 V |
Undervoltage Protection | 10.5/21.0 V |
Max.Panel Voltage (Overvoltage Protection by Varistor) | 30V in 12 V system 50 V in 24 V system |
Temperature Compensation(Charge Voltage) | -25 mV/K at 12 V -50 mV/K at 24 V |
Max.Self Consumption | <4 mA |
Grounding | Positive grounding possible |
Ambient Temperature | -40 to +50°C |
Max. Height | 4,000 m above sea level |
Battery Type | Lead acid (GEL,AGM flooded) |
Wire Cross Section | < 16 mm² |
Weight | 160 g |
Dimension(B×H×T) | 80×100×32 mm |
Type of Protection | IP 22 |
- Feature of solar charge controller
1.Battery state of charge display with 3 LEDs
2.Acoustic load disconnect pre-warning
3.PWM-regulation
4.Boost, equalize and float charging, also for VRLA
5.Automatic 12/24 V detection
6.Integrated temperature compensation
7.Large terminals (up to 16 mm² wire size)
8.SOC and voltage controller LVD
9.Fully electronically protected
The CML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high- efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable tosealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs.
