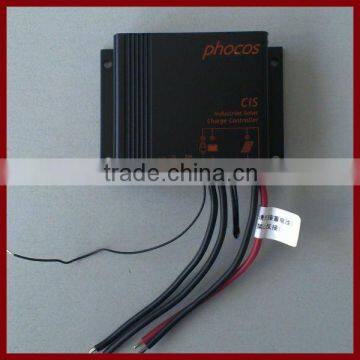

Phocos CIS 05 Solar Street Light Controller

FOB Price

Negotiable / Set

50 Sets(Min. Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	Phocos
Model Number	CIS 05 Solar Street Light Controller	Application	Lighting Controller
Rated Voltage	12V	Maximum Current	5 A

Product Description

Specifications

Solar Street Light Controller
1.Phocos
2.Intelligent Timer Functions
3.Widely Programmable
4.Dual load/Dimmable Load Output

Phocos CIS 05 Solar Street Light Controller

Features of solar controller

1.Robust Aluminum Housing.

2.Expoxy Encapsulated PCB to Prevent Corrosion.

3.Compact Size.

4.Infrared Remote Control Programming Accessory.

5.Intelligent Timer Functions.

6.Widely Programmable.

7.External Temperature Sensor(Optional).

8.4 Stage Battery Charging (Main, Float, Boost, Equalization).

9.Dual load or Dimmable Load Output.

10.Automatic System Voltage Recognition(12V/2V).

Parameter of solar controller

Type	CIS 05 CIS -2L 05
System Voltage	12/24 V auto recognition
Max. Charge/Load Current	5A
Float Charge	13.8/27.6 V(25°C)
Main Charge	14.4/28.8V (25°C),30 min (daily)
Boost Charge	14.4/28.8V (25°C), 2h activation:battery voltage< 12.3/24.6V
Equalization	14.4/28.8V (25°C), 2Std. activation:battery voltage< 12.1/24.2 V( at least every 30 days)
Deep Discharge Protection Cut-off Voltage Reconnect Level	11-12 V/ 22- 24 V 12.8/25.6 V
Overvoltage Protection	15.5/31.0 V
Undervoltage Protection	10.5/21 V
Max.Panel Voltage (Overvoltage Protection by Varistor)	55 V
Temperature Compensation(Charge Voltage)	-25 mV/Kat 12 V -50 mV/Kat 24 V
Max.Self Consumption	5-8 mA at 12V 6-10mA at 24V
Grounding	Positive ground possible
Ambient Temperature	-40 to 60°C
Max.Height	4,000m above sea level
Battery Type	Lead acid (GEL, AGM, flooded)
Adjustment Range:Evening/Morning Hours Night/ Day Detection	0-15 h/0- 14 h 2.5 – 10 V
Wire Length	10 cm
Dimensions(B×H×T)	82×58×20 mm
Weight	150 g
Wire Cross Section	1.5 mm²
Type of Protection	IP 68 (1.5 m,72 h)

Technical Data Output:

Dimming Value:0 -100% output power

Dimming Output Voltage: 0 – 5 V (max, 1mA)

We supply different model Phocos solar charge controller, if you need, please feel free to contact us!
