Gold Washing Machine Rotary Drum Scrubber Washer With PU Screen

200T/H gold wash machine drum scrubber washer with PU screen

Our advantages are providing professional minerals process solution, complete set equipments and after-sale engineer installation service for Alluvial Gold washing plant/alluvial tin ore/tungsten ore/iron sand ore/ hematite ore/chrome ore/tantalum-niobium ore/coltan ore, as well as many rock ores.

Our Main product includes: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.

main market is in Africa, South America, Southeast Asia, Asia, ect. Our cooperated customers cover Ghana, Sudan, Uganda, Nigeria, Cameroon, Madagascan, Malaysia, Indonesia, Philippines, Russia, Mongolia, Mexico, Brazil, Chile, Canada, Australia, Iran, ect.

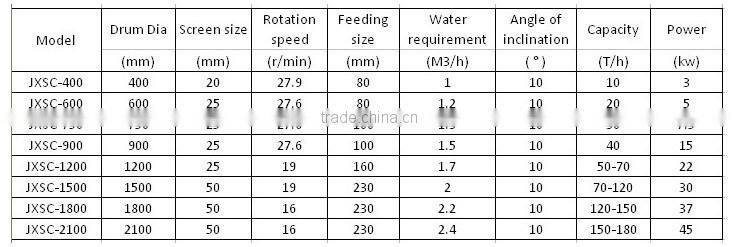

Specifications for 200T/H gold wash machine drum scrubber washer  :

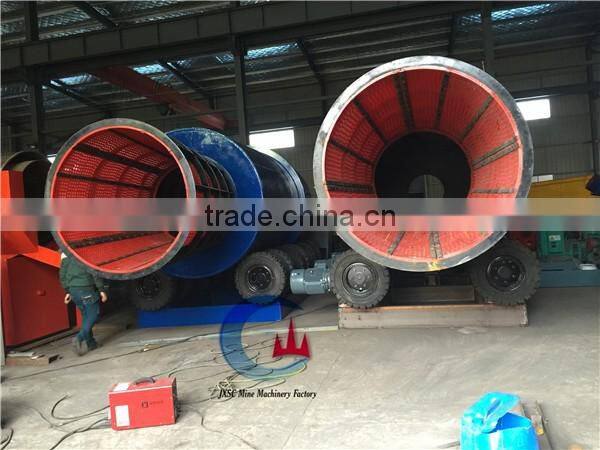

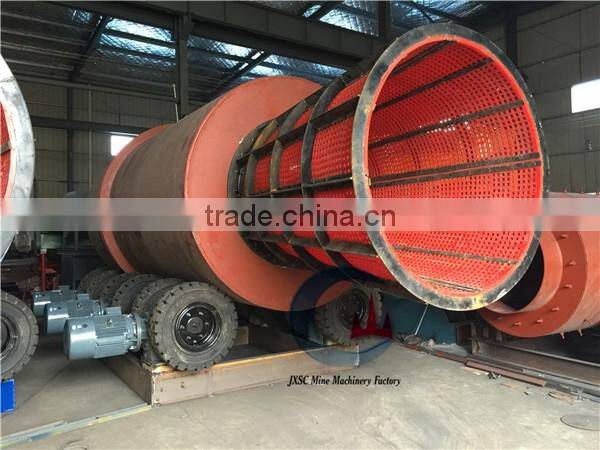

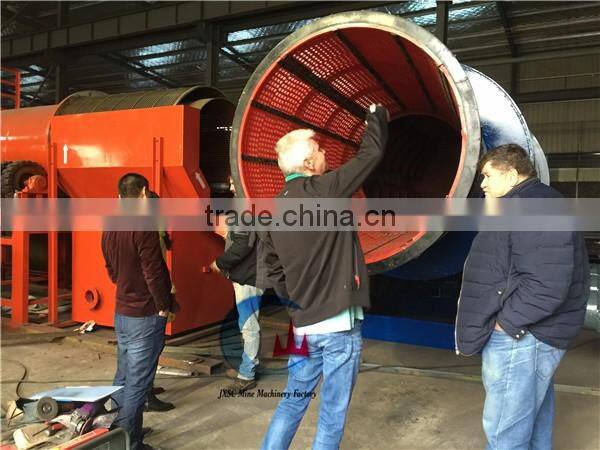

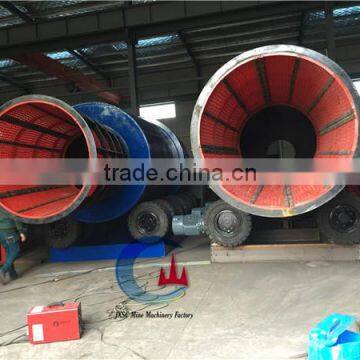

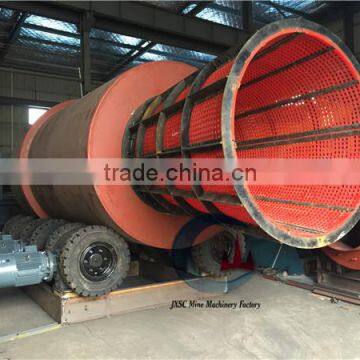

Detail pictures of 200T/H gold wash machine drum scrubber washer  :

Some parts of 200T/H gold wash machine drum scrubber washer  can be made different materials, detail information as below:

Screen Material:

1. High manganese steel: normal material

2. PU material: wear-resistance, long life time, corrosion resistant, splicing technology, replacable,easy to replace.

Linning Plate:

In order to increase the washing effect, we always put linning plates insider of the drum scrubber part, it can be made below two kinds material:

1. High manganese steel: normal material, can’t be replaceable.

2. Natual rubber: wear-resistance, long life time, corrosion resistant, replacable, easy to replace.

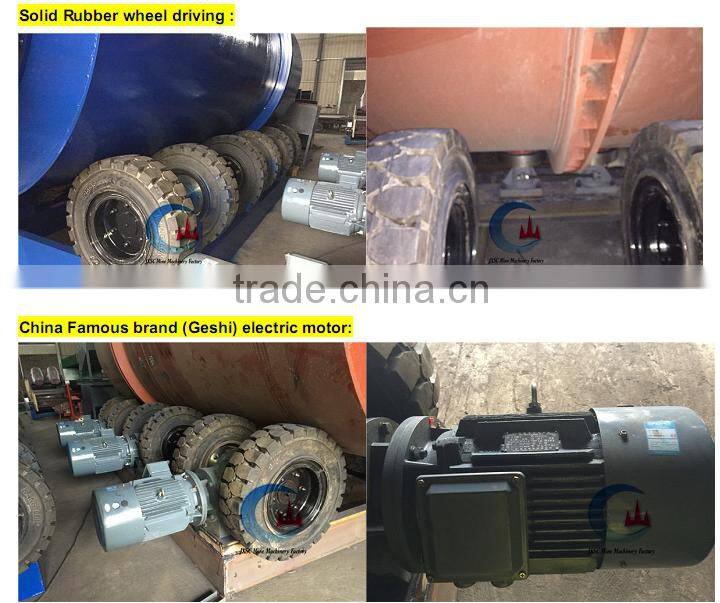

Transmission way:

 All natual rubber wheel driving

Below Detail Specifciations and features of this set 200T/H gold wash machine drum scrubber washer   :

-          Model : JXSC-2200

-          Process capacity: 180-200T/H.

-          Drum dia: 2.2m, length 6.5m( 4.5m wash + 2m screen)

-          Feeding size: <230mm

-          Screen: 1 layer screen, sieve mesh 25mm

-          Screen material: PU material, wear-resistant, long life time, replable.

-          Linning plates: Iron steel material, can wash more clean the clay.

-          Transmission : by solid rubber wheels, each side 6 wheels, good quality, long life time.

-          3 set driving motor power: 18.5kw*3=55.5kw

-       With control carbinet

 We have many other designed  gold trommel scrubber/drum scrubber/rotary drum scrubber washing machine/ gold scrubber washer with different processing capacity, pls check below picture:

-Mining project processing consulting.

-Design and draw flowchart.

-Do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory.

- Providing whole processing plant equipments.

-Dispatching engineer overseas guidance for equipments installation, testing equipments, training worker.
