Belt Type Three Disc magnetic separator for Tungsten Ore/ tantalite/tungsten/Columbite oncentration

Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.

Application Area of Belt Type Three Disc magnetic separator   :

The three disc dry magnetic separator is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.

4 varieties of products can be obtained by separation of this device.

Main Parts of   Belt Type Three Disc magnetic separator   :

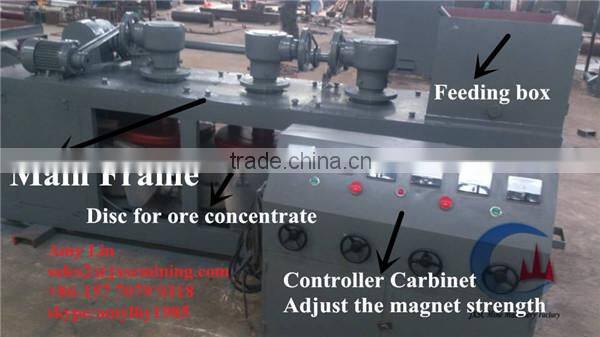

Mainly include two parts: The main device and Electric controller carbinet.

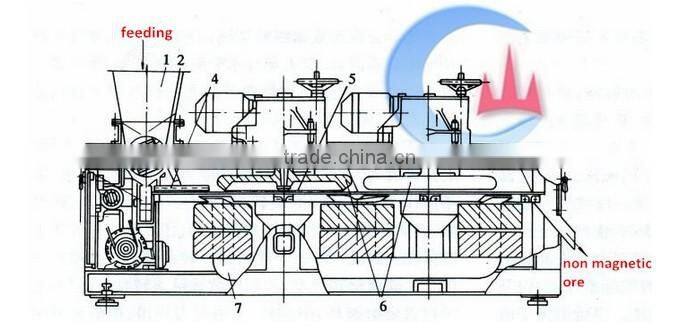

1.Magnetic separator-feeding hopper

2.Magnetic separator-feeding cylinder

3.Magnetic separator-receiving hopper

4.Magnetic Magnetic Separator-sieve trough

5.Magnetic separator-vibrating trough

6.Excitation control cabinet

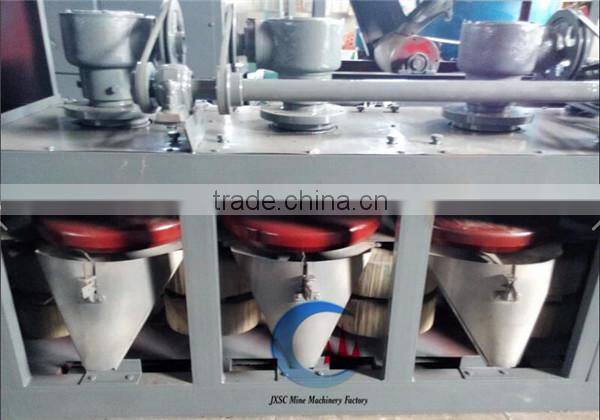

7.Magnetic separator-Disc

8.Magnetic separator-Reed disk

The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance

Features of Belt Type Three Disc magnetic separator    :

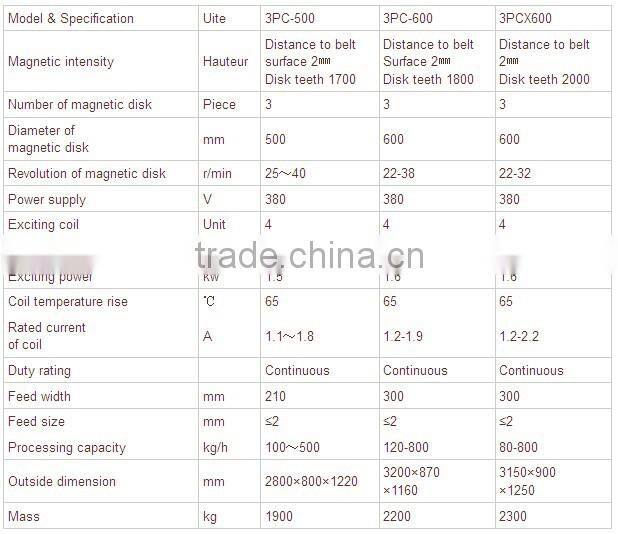

1. Small capacity (100-800kg/h depend on the disk diameter)

2. With 3 pcs disk

3. Each disk is with Adjustable magnetic intensity from 1000-20000 Guass, can adjust according to minerals magetic intensity.
4. 4 different minerals can be obtained at the same time by useing  this magnetic divice.
5.  High intensity with dry processing

6. Low power consuption.

7. The moisture of feeding material shall be under 1%.
