STLB20 Mini Centrifuge,knelson Concentrator Small Scale Mining Equipment

2), Manufacturing according to the ISO9001:2008 quality control system guidelines.

3), Our products are widely recognized and trusted by users, sell well all over the world especially to Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.

4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!

Our laboratory series mining equipment are mainly include:

Lab crusher,

Lab ball mill,

Lab grinder miller,

Lab sampling pulveriser,

Lab flotation cell,

Lab shaking table,

Lab spiral chute,

Lab magnetic separator,

Lab screener and classifier,

Lab crusher divider,

Lab disk vacuum filter

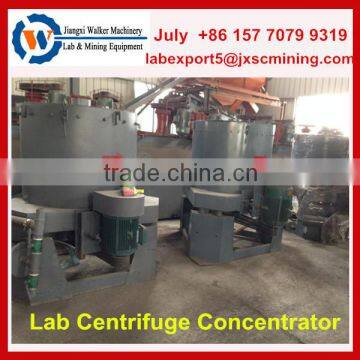

--- STLB20 mini centrifuge,knelson concentrator small scale mining equipment

Laboratory Centrifuge Application:

This centrifugal separator is used for fine silt, gold, tungsten and tin, formanite, rare-earth metal ore, copper, lead, zinc ores in metal mines of 0-3mm.

Laboratory Centrifuge Features & Advantages:

1. High concentrating ratio and high recovery

2. Total process automation, steady recovery performance

3. Low energy consumptions

4. Environmentally friendly(requires no chemical additives or reagents)

5. Low water and electricity requirements

6. Low production costs, durable wear parts, minimal maintenances requirements

7. Compact design requiring less space, easy merged into the existing mining processing

8. Quick payback on investment, typically lass than half year

9. Rugged design and a high degree of quality manufacturing ensures that every Concentrator will provide many years of reliable, trouble-free operation in even the most severe operating environments.

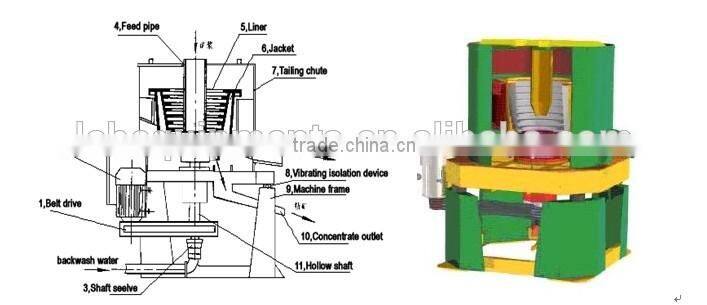

Lab Centrifuge price Structure:

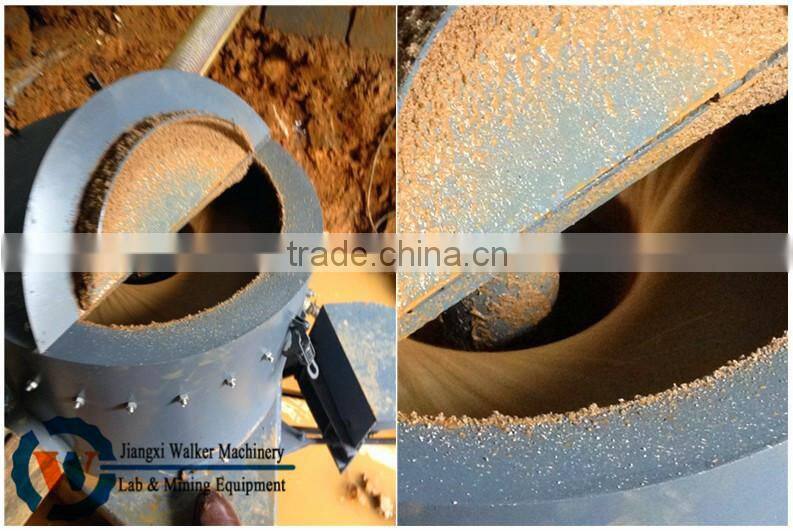

It mainly includes drum, chassis, feeder, feeding mouth (one in the top and one in the bottom), washing mouth, feed chute, feeder, etc.

Lab Centrifuge price  Specifications:

Except Model STLB20 LAB centrifuge, our factory also supply larger capacity centrifuge for more choices, eg STLB30,STLB60,STLB80,STLB100,STLB120 from 2t/h to 200t/h for different mining requirements.

Lab Centrifuge price Working Principle:

The centrifugal separator works intermittently, but the cutting, flushing, and separation of ores are automatically performed by the command mechanism and actuating mechanism. The command mechanism is a time relay which connects and disconnects power supply within specified time. The actuating mechanism includes ore cutting pipe in the feeding hopper, three-way valve and membrana dermalis valve that control flushing water, and ore divider that concentrate and tailing are discharged in different directions. They are driven to operate respectively by electromagnet. When specified separation time is reached, the ore breaking pipe swings to the one side of the return pipe and the slurry no longer enters the drum. At the same time, the three-way valve cuts off the low pressure waterway. The closed water pressure on the membrana dermalis valve is removed. Then when the high pressure water passes the membrena dermalis valve, it enters the drum. At this time, the ore distributing device also swings to the one side of the concentrate pipe and lead the flushed concentrate into the concentrate pipe. After flushing is finished, each actuating mechanism respectively restores the original positions and continues to separate the feeding ores.

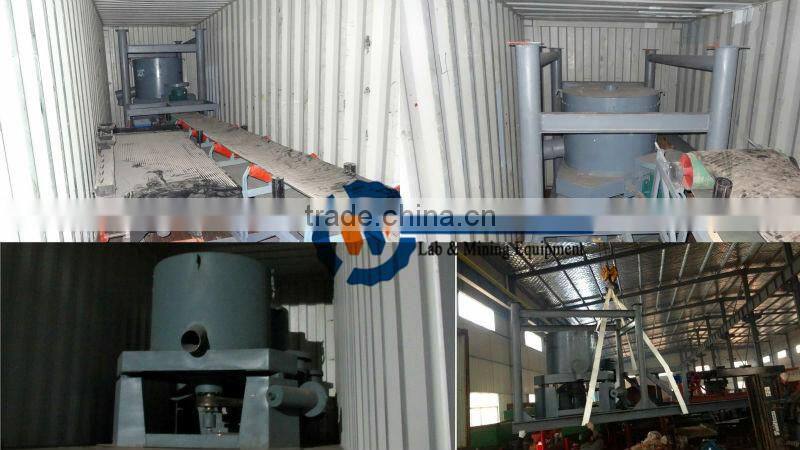

For package of our Lab Equipment, we will use the Wooden Box packing to ensure its safety and stability during international transportation.

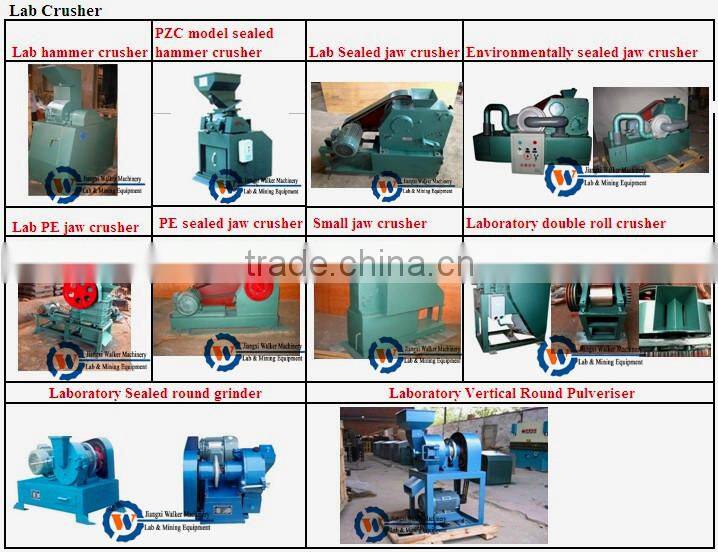

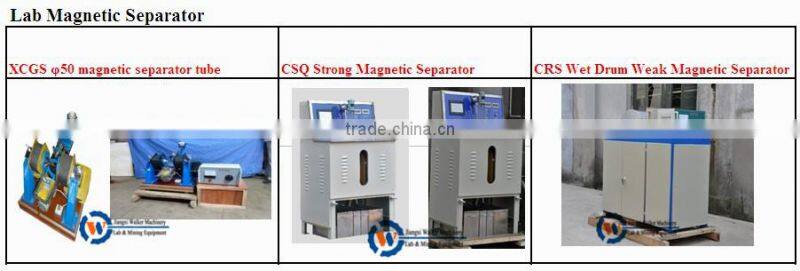

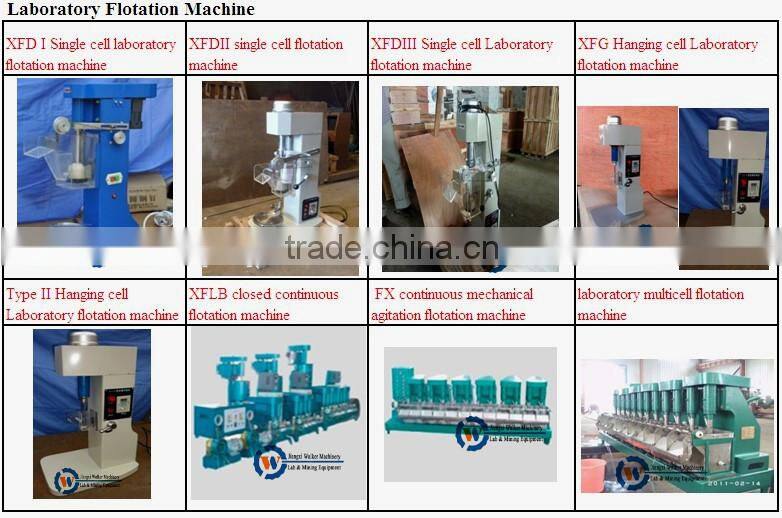

Jiangxi WALKER other hot selling Laboratory Mining Equipment for your choice:

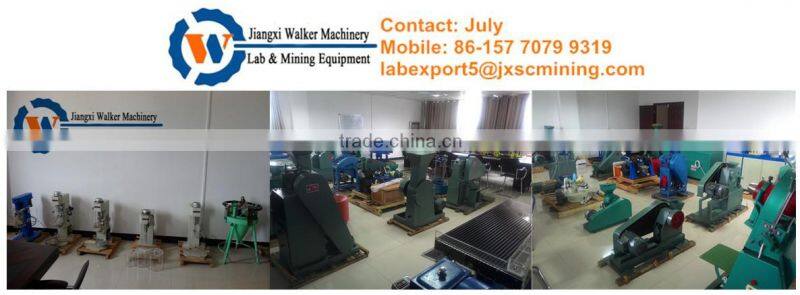

If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me, you are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
