Gold Concentration Equipment Mini Shaking Table, Small Shake Table in Mining

 Jiangxi Walker Machinery is a leading large-scale professional manufacturer of laboratory equipment for mineral processing, as well as sample preparation equipment. We concentrate on researching, designing, and manufacturing many kinds of laboratory machines.

Our products mainly include below:

lab pulverizer for sample preparation,

lab crusher divider, lab crusher,

lab ball mill, lab grinding mill machine,

lab flotation machine ,

lab vacuum filter,

lab magnetic separator,

laboratory shaking table,

lab spiral chute, lab hydrocyclone,

lab centrifugal machine, lab sieve shaker, and many other lab testing equipment.

gold concentration equipment mini shaking table, small shake table in mining   :

Introduction& application area of  gold concentration equipment mini shaking table, small shake table in mining  :

 Laboratory shaking table is used to studying and testing the ores for labs studying and benefication plant researching. Laboratory shaking table is smaller than the ordinary shaking table, Less capacity, Lower price, but keep same good quality. Mainly apply for Tin, Tungsten, Gold, Silver, Lead, Zinc, Iron , Zircon, Chrome Tantalum, Niobium Beneficiation.

Work principle of  gold concentration equipment mini shaking table, small shake table in mining

Small Lab shaking table is mainly used to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation , adjustable

Main structure of  gold concentration equipment mini shaking table, small shake table in mining  :

--Motor: electric motor or diesel engine

--Channel frame: steel material

--Table deck: we have different size deck:2100x1050mm, 1100x500mm and 1000x450mm

--Feeding box

--Transmission box

Features of gold concentration equipment mini shaking table, small shake table in mining

1. small size, easy installation, factory prices.

2. especially for Lab studying ores separation.

3. CE & ISO

We have two types table deck for the small laboratory shaking table:

1. Ordinary small lab Shaker table :
--the table desk material: glass fiber reinforced plastics
--Feeding box material: Wooden box
--usually without separated discharge tank for collecting the concnetrate,middlings and tailings, if customer need, we also can make.

2. New type small lab shaker table:
--Table deck material: ALUMINUM ALLOY, very good quality, extremmely wear-resisting, long life time.
--Feeding box: Acrylic board,very good quality,not easy to broken down.
--with stainless steel separated discharge tank for collecting the concentrate, middlings and tailings.

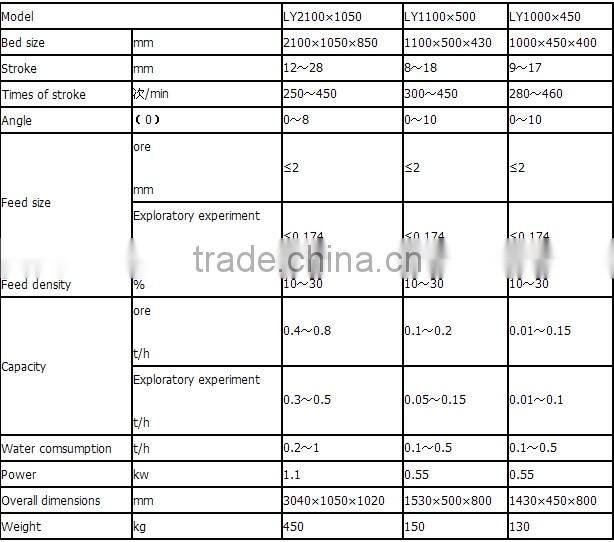

Specifications for glass fiber reinforced plastics small lab shaking table:

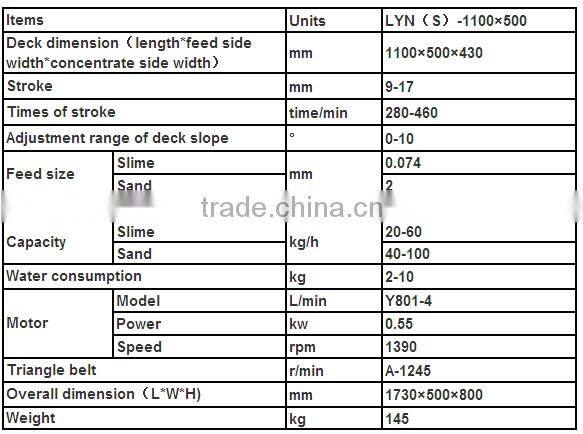

Specifications of Aluminum Alloy small lab shaking table:

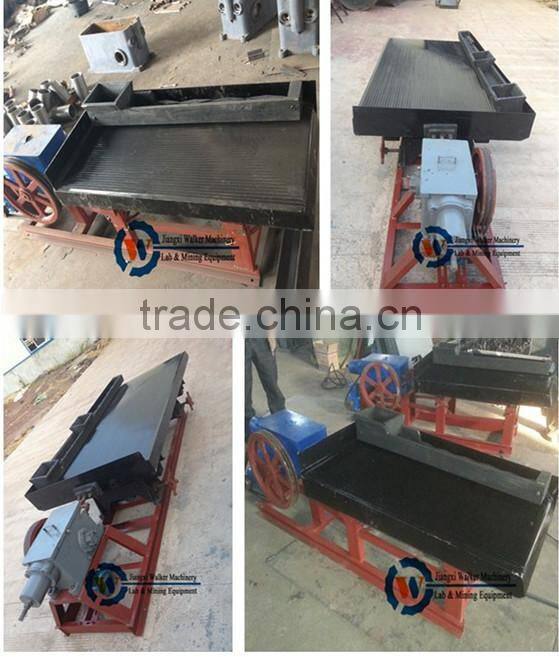

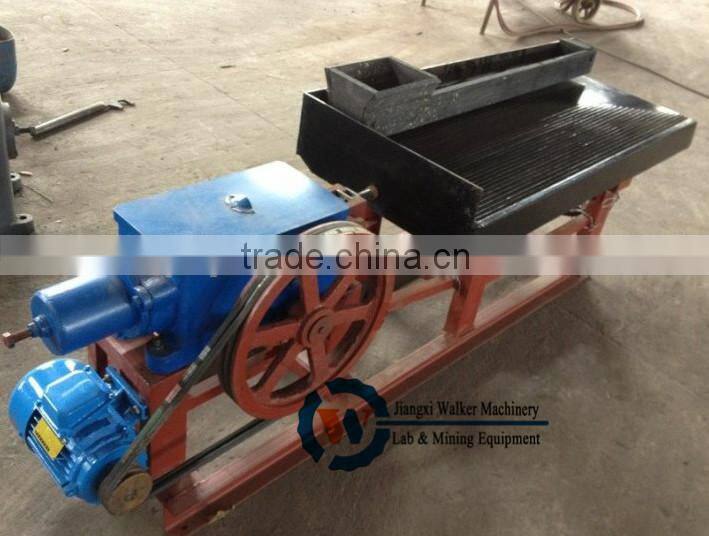

Detail pictures of gold concentration equipment mini shaking table, small shake table in mining  :

Packing Pictures for laboratory shaking table, lab shaker table  :

Excepting the small lab shaking table/shaker table , we also provide many other series lab mining equipments, check below pictures:
