high capacity gold washing plant gold trommel scrubber washer for clay gold

Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.

gold washing plant gold trommel scrubber washer

we have provided a complete set gold washing plant to our Ghana customer for their alluvial gold processing project. Customer have visited our factory for equipments delivery inspection.

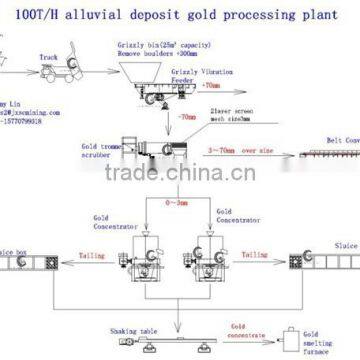

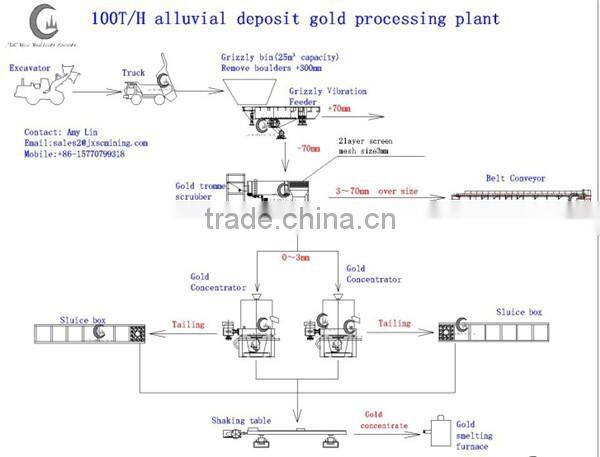

This plant is 100T/H processing capacity, suitable for washing alluvial gold ore with sticky clay. The complete set machines includes 1 set vibration feeder+1 set gold washing trammel scrubber+ 2 sets gold centrifugal concentrator+ 2 sets gold sluice box+1 set 6S shaking table+ 1 set slurry pump+ 1 set water pump+ 2 sets diesel generator+ 1 set belt conveyor.

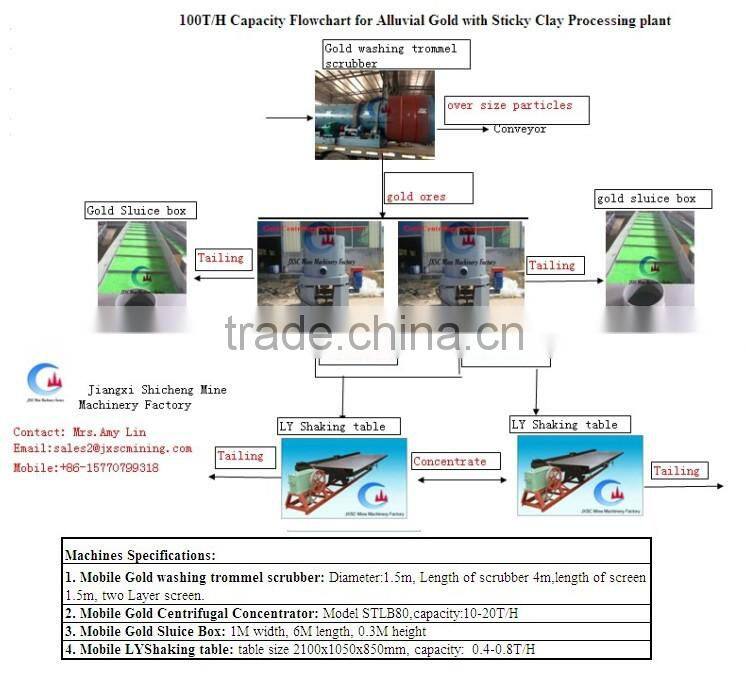

The detail main equipments specifications of  gold washing plant as below:

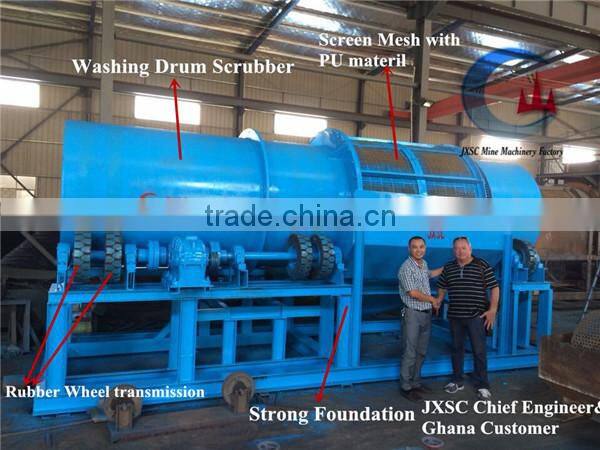

1.Gold washing trommel scrubber: model JXSC-1500, 100t/h capacity, drum diameter 1500mm, length of washing drum 4m, length of screen 2 m, two layers screen (PU +manganese steel material), rubber wheels transmission, manganese steel inner plates, electric motor with 37KW.

2.Gold centrifugal concentrator: model STLB80, capacity 10-20t/h.

3. 6S shaking table: table deck size 4500x1850x1650mm, capacity 0.5-2t/h. electric motor with 1.1KW.

4. Gold sluice box: 6m*1m*0.35m(L*W*H), 30t/h capacity.

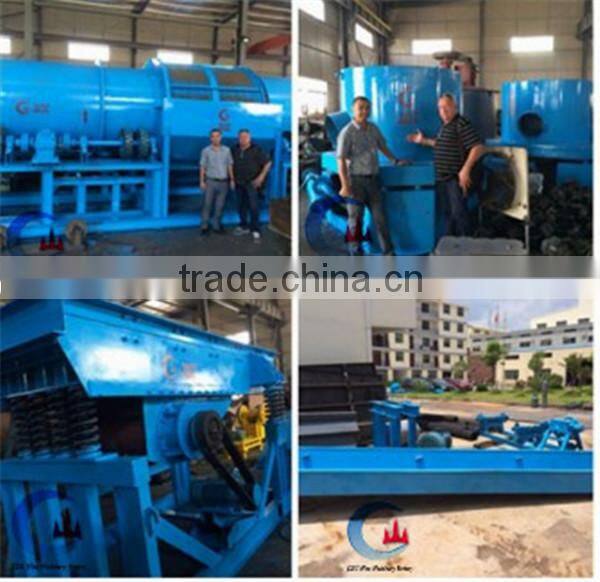

Below more detail pictures of gold washing plant gold trommel scrubber washer  :

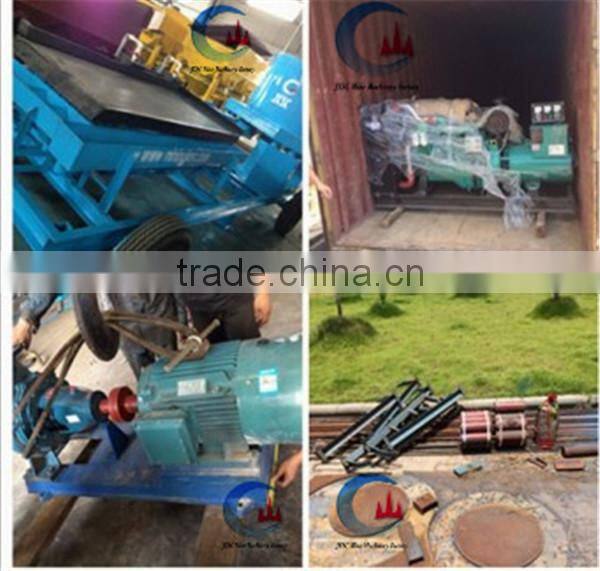

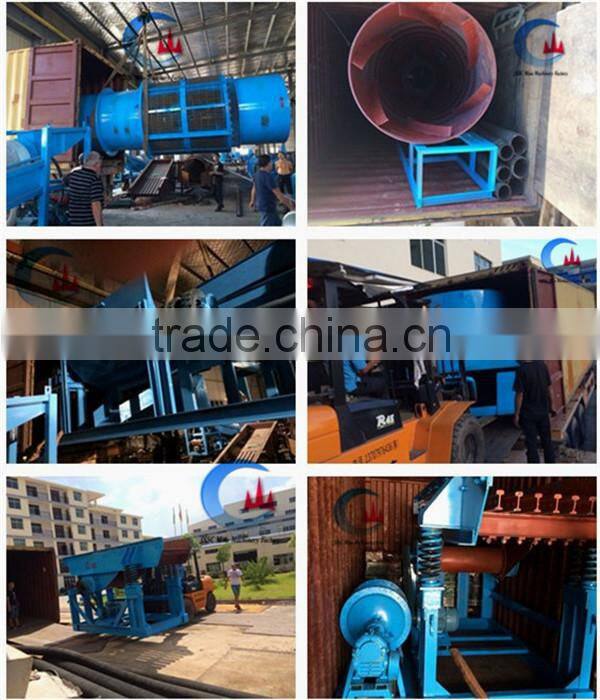

Container Loading of gold washing plant gold trommel scrubber washer :

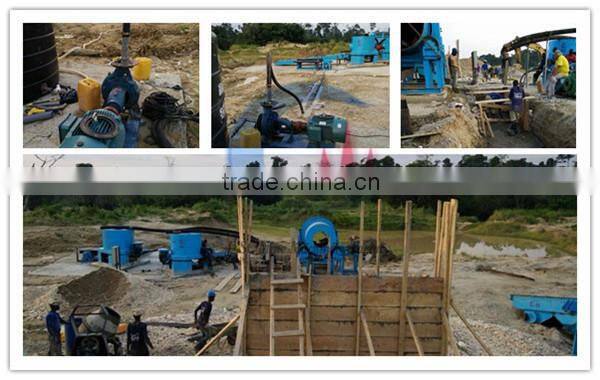

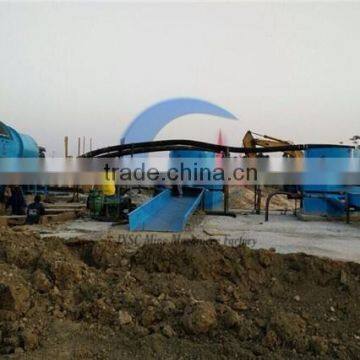

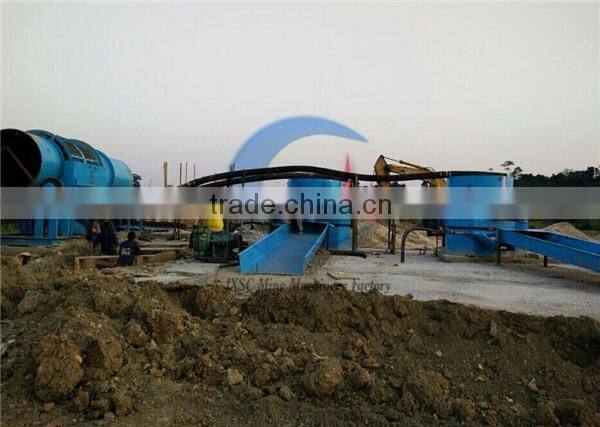

Mine site operation of gold washing plant gold trommel scrubber washer  :

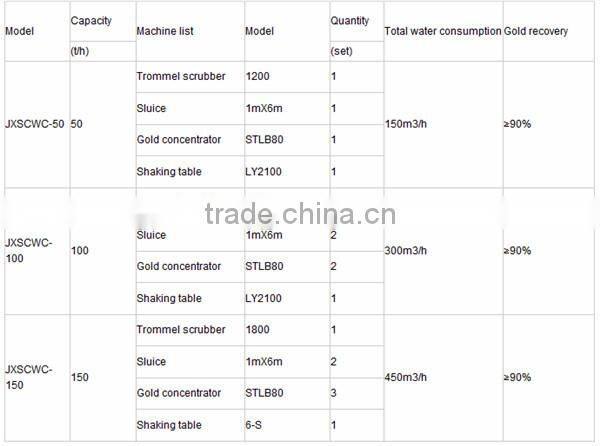

We can make gold washing plant gold trommel scrubber washer
with bigger or smaller processing capacity from 10T/H to 200T/H, as per your need.

What we can do for you?

 We sincerely provide the ONE-STOP SERVICE for EVERY CUSTOMER, including below:

• Mining project consulting.
• Design and draw flowchart.
• Do testing for gold ore,  tin ore , iron ore, tungsten processing in laboratory
• Providing whole production line equipments.
• Dispatching engineer overseas guidance for equipments installation and testing.
• Training your local first batch workers.
• Help you to solve the problems during the equipment operation.

 What we need from you?

In order to service you better, we need you to help providing some important information from you:

• What kind of ore do you have in hand?
• What minerals do you want to get finally?
• What’s your processing capacity?
• What’s the maximum feeding size of your ore?
• You want the machines fixed or mobile?
