Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 98% | Place of Origin | Jiangxi, China | |
| Brand Name | JXSC | Model Number | JXSC-900 | |
| Voltage | 380V | Power(W) | 7.5kw | |
| Dimension(L*W*H) | customized | Weight | 2000kgs | |
| Certification | SGS | Warranty | 12months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
small gold trommel scrubber wash plant
Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.
Our advantages are providing professional minerals process solution, complete set equipments and after-sale engineer installation service for Alluvial Gold washing plant/alluvial tin ore/tungsten ore/iron sand ore/ hematite ore/chrome ore/tantalum-niobium ore/coltan ore, as well as many rock ores.
Our Main product includes: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.
main market is in Africa, South America, Southeast Asia, Asia, ect. Our cooperated customers cover Ghana, Sudan, Uganda, Nigeria, Cameroon, Madagascan, Malaysia, Indonesia, Philippines, Russia, Mongolia, Mexico, Brazil, Chile, Canada, Australia, Iran, ect.
Description of small gold trommel scrubber wash plant :
The mobile gold washing trammel scrubber is consisted of two parts: one is for washing the clay, another is for sieving different sizes ores. There are 4 carrier rollers to support the drum. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it’s a closed space ,there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to next machine, such as sluice box, centrifugal concentrator, shaking table ect.
Application of small gold trommel scrubber wash plant :
mobile gold washing rotary scrubber/ mobile gold trommel scrubber/ mobile durm scrubber washer /mobile trommel scrubber is mainly used for washing alluvial ores which is with much sticly clay, such as alluvial gold /coltan ore/ black sand/alluvial tin/alluvial chrome,ect.

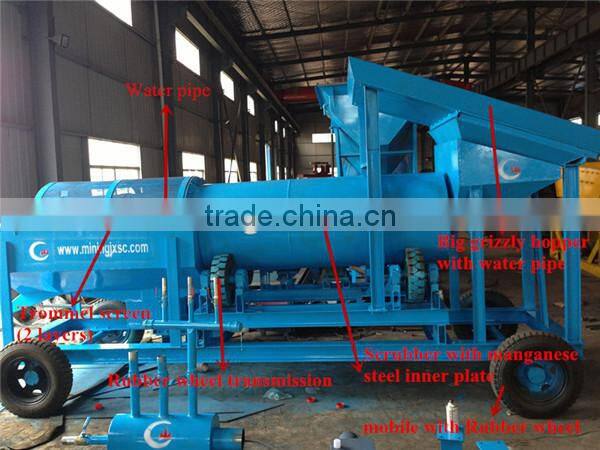

Main structure of small gold trommel scrubber wash plant :
1. Drum : For washing the clay.
2. Inner plate: separating the clay and ores.
3. Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.
4. Motor: electric or diesel according to your needs.
5. Carrier rollers: For support the drum
6. Gear, Reduction Box, coupling.
7. Frame: Supporting the reduction box and motor.
Specifications for small gold trommel scrubber wash plant :
This set small gold trommel scrubber wash plant :
1. Mobile gold washing trommel scurbber/ mobile gold trommel/ mobile trommel scrubber/moible gold washing machine
2. mobile gold centrifugal concentrator/mobile gold centrifuge/mobile gold concentrator/mobile gold concentration machine.
3. mobile gold shaking table/mobile shaking table/mobile gold shaker table/mobile gold mining table
4. sluice box/gold sluice box/ gold panning sluice box/ gold washing sluice/gold sluice mat

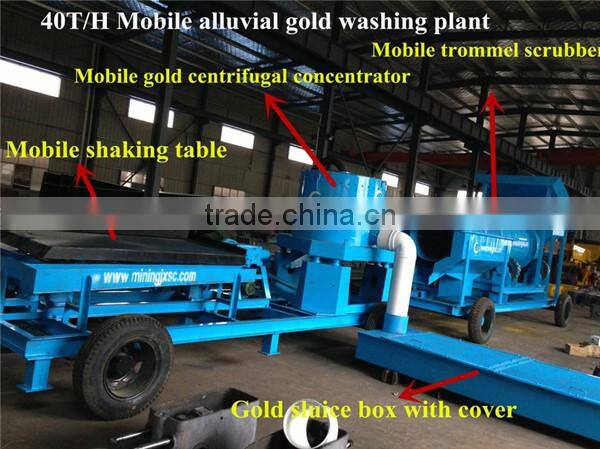

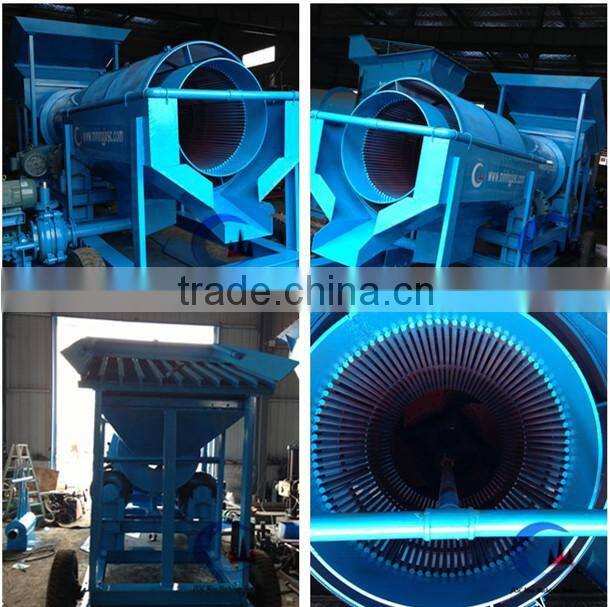

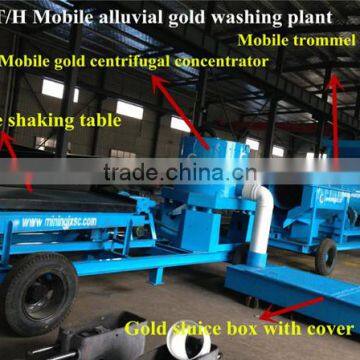

Detail pictures of small gold trommel scrubber wash plant

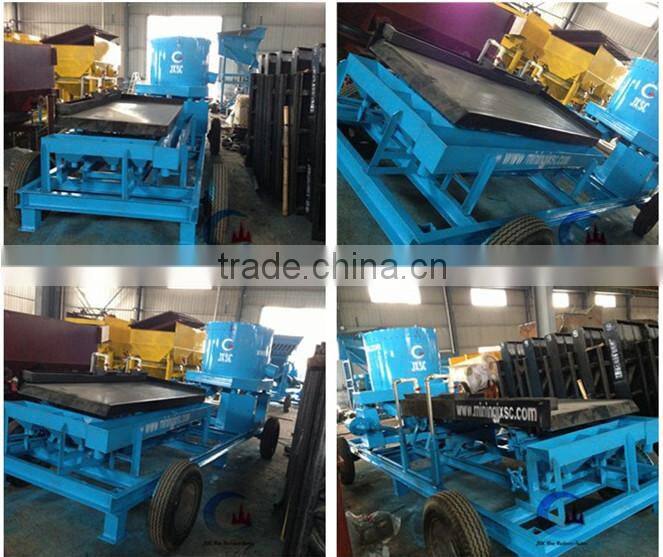

Mobile gold centrifugal concentrator in small gold trommel scrubber wash plant
Mobile gold shaking table in small gold trommel scrubber wash plant
gold washing sluice box in mini mobile gold washing plant

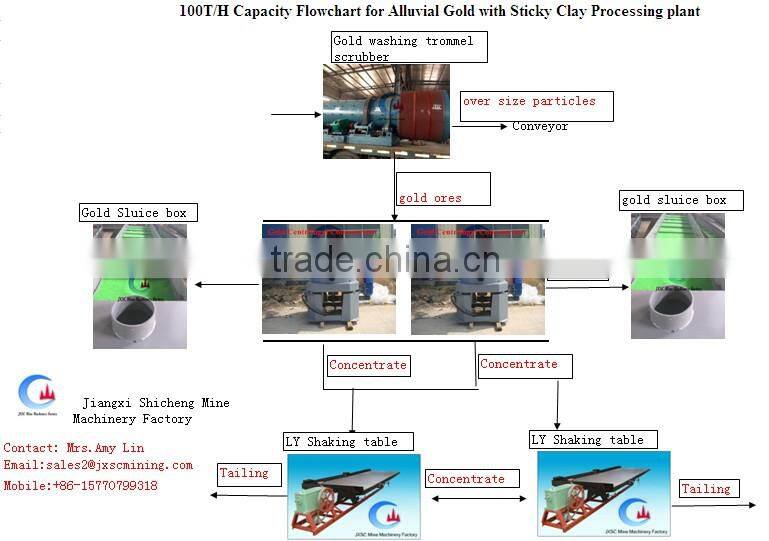

Flowchart of small gold trommel scrubber wash plant
:
We sincerely provide below services:
-Mining project processing consulting.
-Design and draw flowchart.
-Do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory.
- Providing whole processing plant equipments.
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training worker.
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
If you are interested in our products, please feel freely to contact us:
