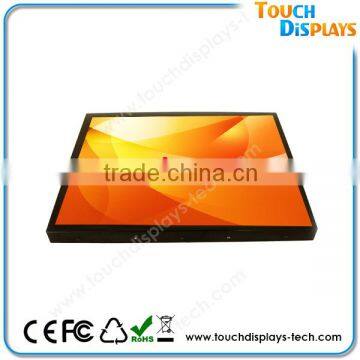

12.1" industrial LCD monitors with touch screen

Case/Bezel Color

Steel/black

Display Size

12.1"

LCD Type

TFT LCD

Aspect ratio

4:3

Useful Screen Area

245.76(H) x 184.32(V)mm

Touch panel

SAW Touch Screen

Touch interface

Dual USB/Serial

Touch response time

10ms (typical)

Touch Monitor Dimensions

303×242×43 mm

Optimal (native) Resolution

800 x 600

LCD panel Pixel pitch

0.3075 x 0.3075 mm

Plug and Play

VESA DDC 1/2B

LCD panel Colors

Native 262K colors (RGB 6-bit driver)

LCD panel Brightness

400 cd/m2

LCD panel Response Time

35 ms

Viewing Angle

(typical, from center)

Horizontal (left/right)

±70° or 110° total

Vertical (up/down)

50°(up), 60°(down) or 110° total

Contrast Ratio

500:1

Input Video signal connector

Mini D-Sub 15-Pin VGA type and DVI type (optional)

Input sync format

31.5-80.0 kHz 60-75 Hz

Power Supply Type

External AC to DC power brick

Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power dissipation: 36W max

On-screen display(OSD)

Controls(back):Power,Menu,Up,Down,Auto;

Settings: contrast, brightness, H/V position;

RGB(color temp),clock, phase, recall;

Languages: English, German, French ,Spanish, Japanese;

Temperature

Operating: 0°C to 40°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-80%; Storage: 10%-90%

Shipping Carton Dimensions

456 x 356 x206 mm

Weight (approx.)

Actual: 2.5kg ;Shipping: 4 kg

Warranty Monitor

3 years(Except for LCD panel 1 year)

Backlight lamp life: typical 30,000 hours to half brightness

Agency Approvals

CE/FCC Rohs

Mounting Options

75 mm or 100 mm VESA mount
