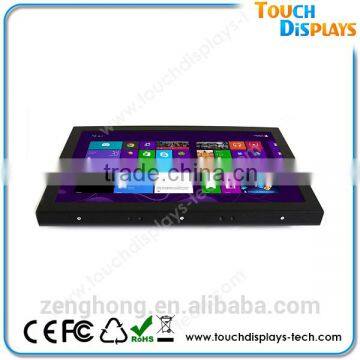

22 inch USB interface touch screen monitor with HDM I/DVI/VGA input

Case/Bezel Color

Steel/black

Display Size

22.0" Wide

LCD Type

TFT LCD

Aspect ratio

16:10

Useful Screen Area

474mm x 296mm

Touch panel

Securetouch screen(SAW)

Surface Durability

Surface durability is that of glass, Mohs' hardness rating of 7

Touch interface

Dual Serial / USB

Touch response time

10ms (typical)

Touch Monitor Dimensions

526.0 x 345.0 x 54mm

Optimal (native) Resolution

1680 x 1050

LCD panel Pixel pitch

0.282x 0.282 mm

Plug and Play

VESA DDC 1/2B

LCD panel

LCD parameter

High LCD parameter (option)

LCD panel Colors

16.7 million

16.7 million

LCD panel Brightness

300 cd/m2

300 cd/m2

LCD panel Response Time

5 ms

20 ms

Viewing Angle

(typical, from center)

Horizontal (left/right)

±80° or 160° total

±89° or 178° total

Vertical (up/down)

±80° or 160° total

±89° or 178° total

Contrast Ratio

1000:1

1000:1

Input Video signal connector

RGB Analog Video and DVI Video (optional)

Input sync format

31.5-80.0 kHz 60-75 Hz

Power Supply Type

External AC to DC power brick

Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power dissipation: 48W max

On-screen display(OSD)

Controls(back):PowerMenuUpDownAuto;

Settings: contrast , brightness, H/V position;

RGB(color temp), clock ,phase , recall;

Languages: English, German, French ,Spanish, Japanese;

Temperature

Operating: 0°C to 40°C; Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-80%; Storage: 10%-90%

Shipping Carton Dimensions

556x456x206mm

Weight (approx.)

Actual:8 kg; Shipping: 10kg

Warranty Monitor

3 years(Except for LCD panel 1 year)

Backlight lamp life: typical 50,000 hours to half brightness

Agency Approvals

CE/FCC/Rohs

Mounting Options

75 mm or 100 mm VESA mount
