ShangHai LiPu High Reliable Operation Vibrating Table

Standard container or as customers' requirements.(Vibrating Table)

Frequently Asked Questions

Q: Can I visit your factory?

A: Yes. Many domestic and international customers visit our factory every year.

Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.

Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.

Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.

Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.

ShangHai LiPu High Reliable Operation Vibrating Table

Feathers of Vibrating Table:

1.Big steel intensity.
2.Low water-absorptivity.does not increase height.
3.Good wearability of the work surface.
4.Anti-chemical corrosion,acid do not avoid medicament in ore polp.

5.Good weather resistenance,good shape stablity.

6.Good selection function,good index stability.

Application of Vibrating Table:

Shaking table is one of the mineral separation equipment of gracity concentrator.It is easy to be operated and can produce high grade concentrated ore,secondary concentrated ore,middlings and gangue,ect at the same time.It is widely used to separate tungsten,stannum,niobium,other rara metal and noble metal ores;It can also be used to separator iron,manganese minerals,coal,and so on.

Struature of Vibrating Table:

Shaking table is made of machine head,motor,adjusting gradient device,bed,bunker,water tank,rifle bar and lubrication system.

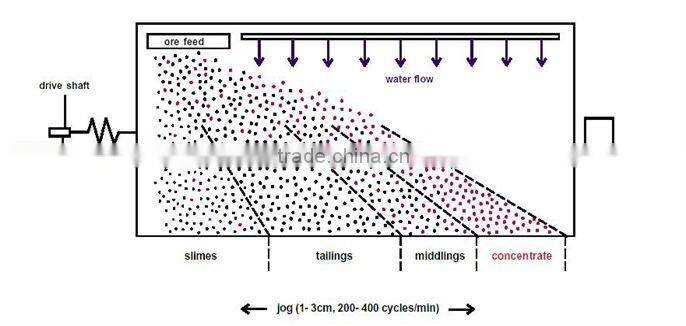

Working Principle of Vibrating Table:

During the benificiation process,the mineral particles from the angle above the bed surface go to the slot,meanwhile by feedthrough fiashing water transversely.In this way,under the effect of gravity,the transverse direction running water impulsive force,and the inertia and friction created by the reciprocation symmetry of movement of the bed sueface,the ore grains are separated according to the proportionand the granularity,and makes the transversalmotion along the inclined surface of bed.Therefore there grains with different proportion and different granularity fly heading different direction,and dischare separately from the ore concentrate end and the debris side’s two different areas,finally divided into the ore concentrate,the middling and the debris.

Technical Parameters of Vibrating Table:

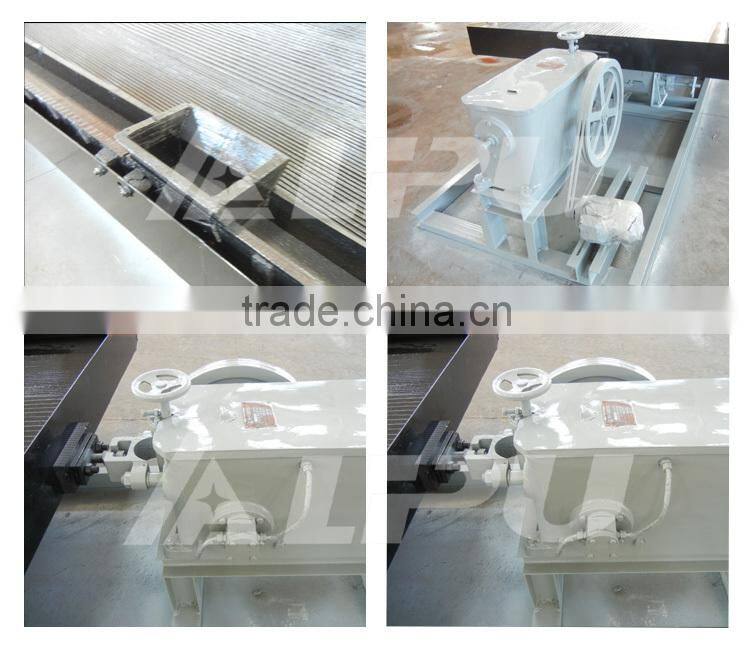

Vibrating Table Parts:

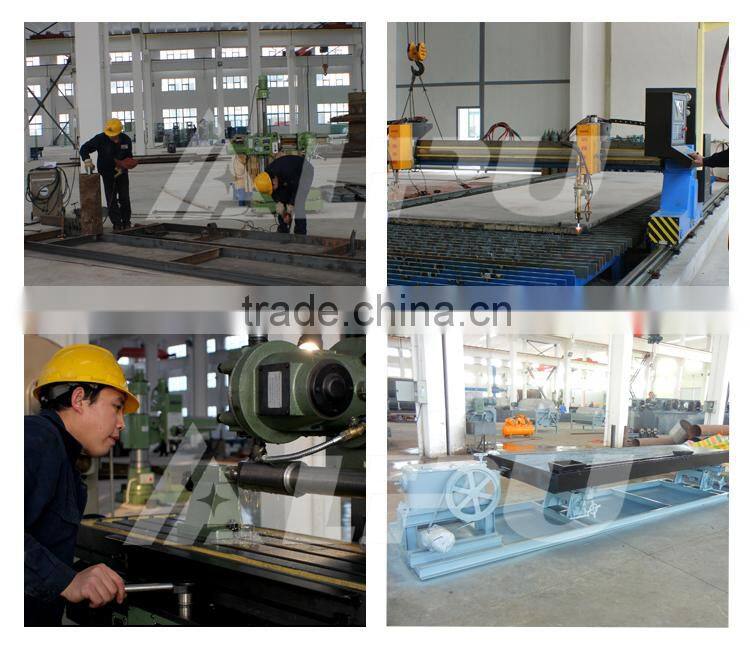

Producing Process of Vibrating Table:

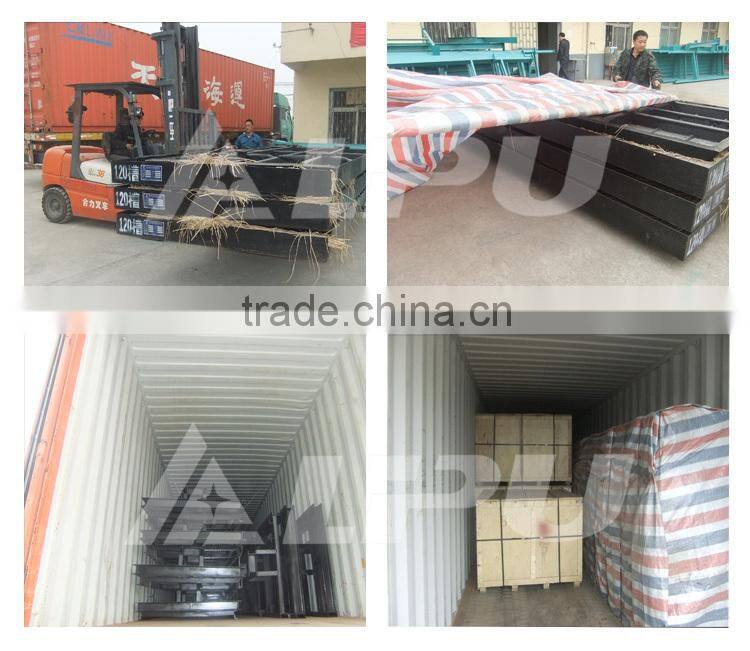

Delivery Site of Vibrating Table:
