Energy-saving Vibrating Dewatering Screen Machine

Standard container

Specifications

Vibrating Dewatering Screen Machine,Coal Dewatering Screen,Sand Dewatering Screen

1.Application of Vibrating Dewatering Screen Machine

Vibrating Dewatering Screen Machine is widely used in coal preparation, mineral processing, building materials, construction,

 electricity and chemical industry products classification purpose,dehydration, tailings recovery.

Vibrating Dewatering Screen Machine has the vibration motor with the same performance parameters as excitation source,

when two sets of vibration motor in the same angular velocity do reverse operation, the inertial force produced by an

eccentric block in a particular aspect torepeated stack or offset, so as to produce a great shock, driving the screen box

 along the straight line track to do periodic reciprocating motion, make the materials on screen mesh from input to

output to do gradually vibrate, during the vibrating process the part less than the screen hole (water) through the sieve

hole falls, the rest from the output falls, so as to achieve the purpose of classification, dehydration.

2.Vibrating Dewatering Screen Machine features

1.The vibration motor is vibration source, adjustable amplitudes, simple, reliable and convenient maintenance.

2.Equipped with high wear-resisting and anti blocking polyurethane screen, based on years of product design professional knowledge,

modular degree is high, it is easy to change. You can free downtime and loss of lost productivity, which can reduce

the operation cost.

3.Adopting 45 degrees standard anticline feeding area design, and using the centrifugal force to have a auxiliary

dehydration, can improve the dehydration effects and it is more convenient to transport dehydrated materials.

4.It can adjust the screen angle quickly, so that adjust production processes subtly, and realize the maximization

of the production and efficiency.

5.Side plate and reinforcing plate, the connection between steel beam, all adopt the special high strength ring

groove rivets to rivet, resistance shear strength is high, anti vibration, never moves rivet, to avoid the side plate

cracking accidents caused by the welding defects.

6.Low alloy structure steel made by (Q345C), can make the equipment in -40 °C cold region-still can ensure the overall rigidity.

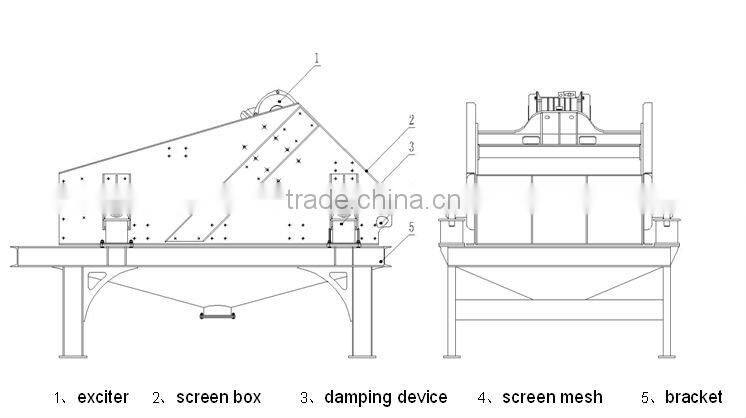

3.Vibrating Dewatering Screen Machine structure

GT series dewatering screen is generally consist of exciter, screen box, screen mesh, brackets, damping device and

other components.

4.Vibrating Dewatering Screen Machine parameter:

5.After-Sale Service:

Erection and Commissioning

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time:25~30 days after receiving advanced payment

Products Certificate: CE, ISO9001:2000

We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.

Looking forward to hearing from you at your convenience!
