Home > Products > Crushing&Screening Plants > Machinery China Fine Impact Crushers for Limestone Processing

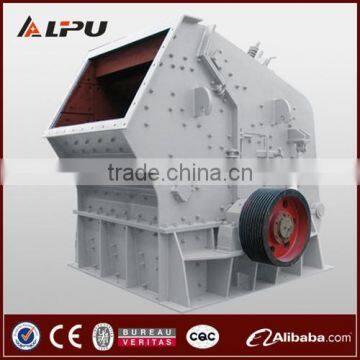

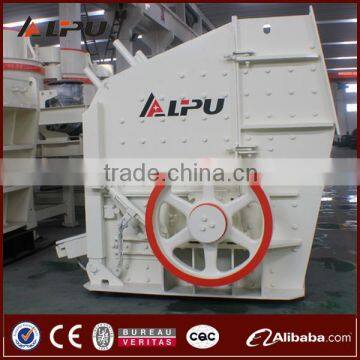

Machinery China Fine Impact Crushers for Limestone Processing
- Shanghai qingdao dalian etc for China Fine Impact Crushers
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Industrial Machine PE Series Jaw Crusher Milling Machine
-
China Minerals Ore Coal Roll Crusher Manufacturing Machines
-
Crushing Production Line Stone Crusher Plant Hot Selling in Russia
-
Heavy Equipment Box Hammer Crusher for Sale
-
Iron Ore Double Spiral Classifier for Mineral Separation
-
Mineral Liquid Mixer Agitator Equipment
Product Details
| Condition | New | Type | Other, Impact Crusher, China Fine Impact Crushers | |
| Application | Granite limestone, etc, Granite, lime stone, concrete aggregate | Motor Type | AC Motor | |
| Power(W) | 90000-250000 | Capacity(t/h) | 15-310t/h | |
| Place of Origin | Shanghai, China | Brand Name | LIPU China Fine Impact Crushers | |
| Model Number | PF series China Fine Impact Crushers | Dimension(L*W*H) | According to model | |
| Weight | 15-38t | Certification | CE,ISO9001:2000,BV | |
| Warranty | One Year, 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Export Standard container or as customers requirements. (China Fine Impact Crushers)
Product Description

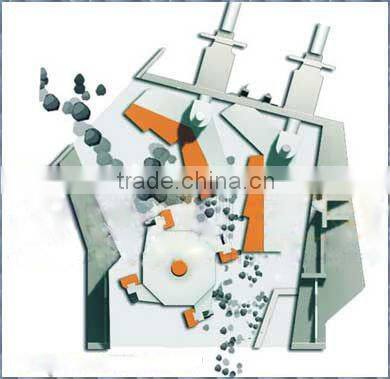

Brief introduction of China Fine Impact Crushers :
Impact Crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, concrete aggregate, etc.

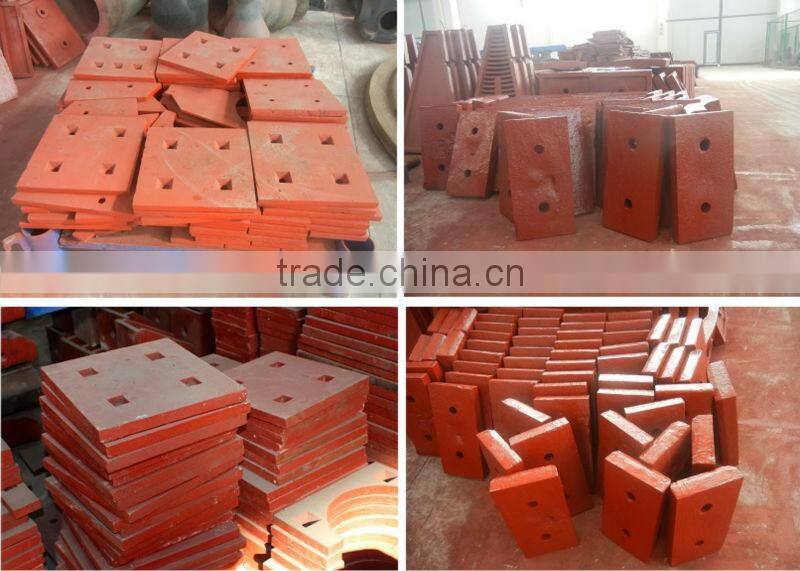

Welding & Assembling Process of China Fine Impact Crushers


Product parameter of China Fine Impact Crushers :
| Model | Rotor specification (mm) | Max feeding size (mm) | Capacity (t/h) | Power (KW) | Weight (t) | Overall dimension (L x W x H) (mm) |
| PF0807 | 750×700 | 300 | 15-30 | 45 | 8.1 | 2210×1490×2670 |
| PF1007 | 1000×700 | 300 | 25-60 | 55 | 9.5 | 2400×1558×2660 |
| PF1010 | 1000×1050 | 350 | 50-80 | 75 | 12.2 | 2400×2250×2720 |
| PF1210 | 1250×1050 | 350 | 70-120 | 110 | 14.1 | 2690×2330×2890 |
| PF1214 | 1250×1400 | 400 | 110-180 | 132 | 18.6 | 2690×2688×2890 |
| PF1315 | 1320×1500 | 500 | 160-250 | 20 | 23.4 | 3096×3273×2667 |
| PF1320 | 1320×2000 | 600 | 200-310 | 315 | 27.5 | 3280×3570×2920 |
Company Profile
Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants. We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance. While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions. Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
Contact Us
- Shanghai Lipu Heavy Industry Co., Ltd.
- Contact nameWendy Zhao Chat Now
- Phone86-21-68798918
- AddressRoom 301, No. 1 Building, Jidian Port, No. 3000, Longdong Road
