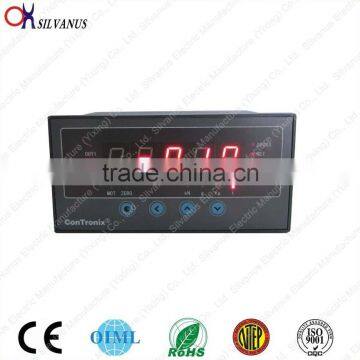

OIML digital weight indicator (CHB)
- shanghai
- T/T
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | Silvanus | |
Model Number | CHB | Type | Floor Scale | |
Power Supply | 220v, 220v | Display Type | LED, 5 red LED | |
Rated Load | 10t | Accuracy | 5 |
Product Description
chinese oiml weight indicator (CHB)
digital oimi weight indicator Function
1) Measure accuracy is 0.05 class;controlling rate is 10times per sencond
2) Accomplish the net weight,gross weight, peak weight and valley weight detecting and switch.
3) 6 alarming way for upper/lower limit, deviation and range.
4) Auto zero tracking,Juading stability.
5) Alarming Status, Unit Indicator for quantity.
digital oimi weight indicator Description
Model | Technical specifications | |
CHB | Measure accuracy is 0.05 class; controlling rate is 10times per sencond | |
External Dimension | AH | 160×80×125mm Perforate dimension:152×76 |
| CH | 96×48×82mm Perforate dimension:92×45 |
Panel specifications | 5 Led, -19999~ 45000 | |
Range of input signal | Ratio measurement. for 4 line load cell. 0.8~ 2.5mv/v | |
Alarm | 2 relay outputs, 250V AC/3A, Resistive load | |
External power source | 10v±2%, 30ppm,150mA | |
Power Specifications | 100~240V AC 50/60 Hz |
oiml weight indicator Appearance:
specification | a(m) | b(mm) | c(mm) | d(mm) | e(mm) | f(mm) | g(mm) |
160×80 | 160 | 80 | 10 | 115 | 75 | 152-1 | 76-1 |
96×48 | 96 | 48 | 12 | 100 | 43 | 92-0.5 | 45-0.5 |
4 Wiring diagram
AH:160×80 size
CH:96×48 size
Package and Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
Transportation | Routine |
By car | 3 hours from Shanghai to Yixing |
By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
