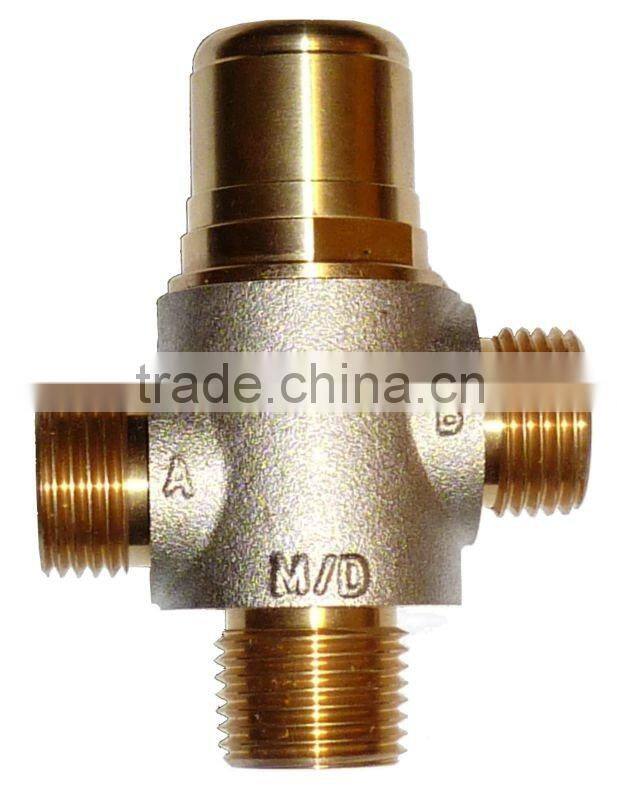

Thermostatic Mixing Valve
- Beijing or Tianjin
- Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other | |
| Pressure | Low Pressure | Power | Other, Self-Actuator, Self-Actuator | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | DN15,DN20 | |
| Place of Origin | Beijing, China | Model Number | MD45 | |
| Brand Name | Winning | Application | Other |
Product Description
Self Mixing/Diverting (No Electricity)
For mixing applications, Self mixing valve will proportion the flow from two inlet ports to produce the desired
outlet port temperature.
Model |
Port Size | Temperature (Central Degree) Setting | Accurate | Maximum Operating Temperature | Maximum Operating Pressure | Net Weight | Flow Rate (Cv) | |||||
°C | °F | °C | °F | °C | °F | MPa | PSI | g | lb |
| ||
MD | DN15 | 37/45/55/60/ required | 98.6/113/131/140/ required | ±2 | ±3.6 | 130
| 266
| 1.0
| 145
| 290 | 0.639 | 1.5 |
DN20 | 335 | 0.738 | 1.5 | |||||||||
Cold Water Temperature Range: Any but lower than the setting temperature
Cold Water Temperature Range: Any but higher than the setting temperature
Example:
Setting at 45°C (113°F),
Cold water temperature range:5°C(41°F) to 45°C (113°F)
Hot water temperature range:45°C(113°F) to 100°C (212°F)
Winning Mixing valve has DIVERTING function also.
Normally, diverting function has to be worked with electricity. This will led the installation complicated; Maintenance is inconvenient; The application is limited; Only technician can do the job. If the valve has the diverting function without electricity (Self Diverting), the users will avoid above matters.

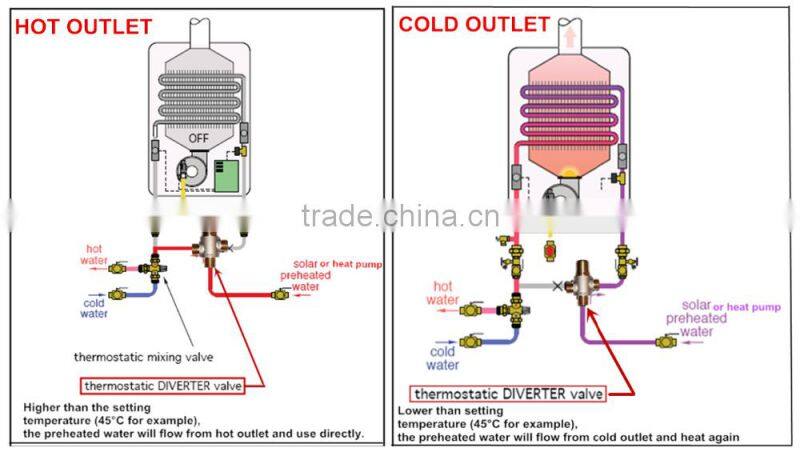

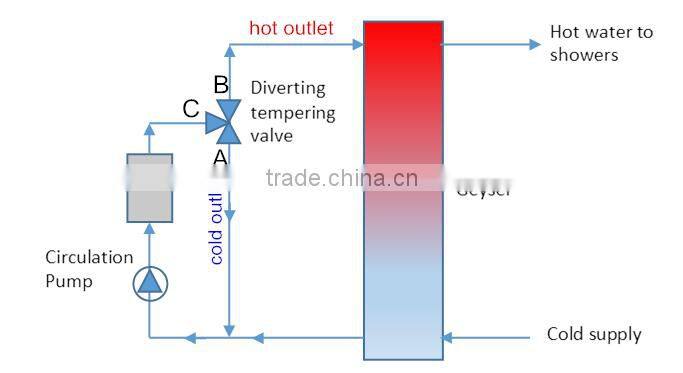

“Winning” Brand Self Diverting valve will divert or switch the inlet flow to either of two outlet ports depending on the fluid temperature.
Multi-energies Heating System
Heat Pump System
Solar Overheating Protection
Other Fields

- Brass body and thermal element
- Narrow temperature band
- Compact low mass-Fast respond
- Sensitive to temperature only
Production
Exhibition
Visitor


- Only one Chinese manufacturer reaches to American performance.
- Reasonable policy to support distributor.
- Professional technical support from pre-sale to after-sale.
