High Frequency Vibration Test Bench
- SHENZHEN/HONGKONG
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Frequency Electrodynamic Vibration Test System
-
Electrodynamic Shaker & Vibration Testing Equipment
-
Non-standard Customized Air Cooled Vibration Test System
-
X,Y,Z Axial High Frequency Vibration Testing Equipment/ Test Machine/ Test Table
-
Non-standard Customized High Frequency Electro-dynamic Vibration Testing System
-
Non-standard Customized High Frequency Electro-dynamic Vibration Shaker System
Product Details
| Place of Origin | Guangdong, China | Brand Name | ASLi | |
| Model Number | ES-Series | Power | Electronic | |
| Usage | Vibration Testing Machine |
Product Description

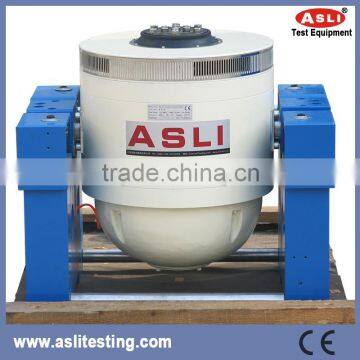

High Frequency Vibration Test Bench
25 YZ manufacturer
OEM available
High cost-effective
CE Marked Equipment
SGS tested SUS#304 stainless steel
Application:
We are manufacturer of electrical vibration series products, adopted the 'double-magnetic circuit structure',self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation'
advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
High Frequency Vibration Test Bench Feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
High Frequency Vibration Test Bench Technical Parameters:
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated Replacement (p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
ASLI Certifications:
