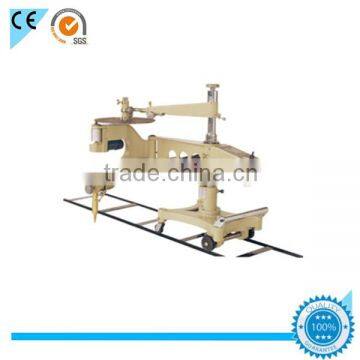

CG2-150B Profile Gas Cutting Machine Rail cutting machine Profile Cutter Quality Choice

•  weight : 61.5kg
• size:1190*335*870mm
• a special cutting machine with the same components in the mass production of cutting work
• highly efficient automatic cutting machine

The main body is made of high strength aluminum alloy, produced precisely by die-casting. Speed adjusted by integrate circuit (stepless change), move steadily Various kind s of spare parts can be cut as per pattern. This machine has roller wheels and clutch which is easy for customer to use self-made rail and fixing position. This machine can reduce the cost for shifting machine or steel plate. Especially for batch producing of components in same pattern. Applied to shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

1.can easily cut out various shapes. Because of its small body, and cutting the scope of this machine is particularly suitable for field work, but also suitable for large, medium, small factory use.

2. technical characteristics:
(1) Body Dimensions: 1190 × 335 × 870mm (L × W × H)
(2) Cutting thickness: 8-60mm
(3) Cutting speed: 50-750mm/min
(4) Cutting circle diameter: φ600mm diameter
(5) cutting the maximum square size: 500 x 500mm
(6) cutting a rectangular size: 400 × 900mm, 450 × 750mm
(7) cutting a straight line length: 1200mm
Cutting maximum circle diameter:600mm
(8) Input voltage: AC220V 50Hz
(9) motor: ZYT261/A5 DC110V24W 3600r/min
3.Structural characteristics and Introduction The machine uses high-strength aluminum ingots made from precision die casting, light weight, high strength, corrosion resistance and other characteristics, and its main body, spindle, drawing, cutting torch assembly type arm, base and counterweight.
(1) The speed control system using the IC controller has superior performance
therefore has the following characteristics:
a, within the limits prescribed uniform adjust the speed of change without making the motor performance, speed control is also very stable.
b, with a smaller control voltage can directly control the motor speed control loss is very small.

Note:
we supply the 3 cutting nozzles, please contact us after you placing an order. if not, we will ship the nozzles with the model1,2,3. thank you!
and we also have the 110V/50-60HZ item.
Stock up time:2 days

you will receive it within 5-9 working days.

   After quality testing,our products will be well packed.

   First plastic film inside

   Then Packed by EPE foam

   Free fumigation wooden carton outside

   Via sea/air/train shipment.
