Automatic Essential Oil Presser for Plants on Sale
- Qingdao Tianjin Shanghai port
- T/T Credit Card PayPal
You May Like
-
6YL-80 Best Sale Peanut Oil Presser/0086-18695927657
-
Factory Price and High Quantity Oil Pressing Machine/cooking Oil Processing Machine/oil Presser
-
Seed Oil Press Complete Equipment/OIL PRESS/OIL PRESSERS
-
Low Price Peanut Edible/cooking Oil Expeller Machinry Made in China
-
Peanut Edible/cooking Oil Expeller Price
-
Peanut Edible/cooking Oil Expeller China
Product Details
| Condition | New | Usage | Other, edible oil | |
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 5-10T | Place of Origin | Henan, China | |
| Brand Name | Hongyang Brand | Model Number | HY-03 | |
| Voltage | 220v,380v,440v | Power(W) | 20KW | |
| Dimension(L*W*H) | 10*5*8m | Weight | 10t | |
| Certification | CE,ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Screw oil press working principle:
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards
as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing
because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity,
resulting in high oil.
Technical parameters:

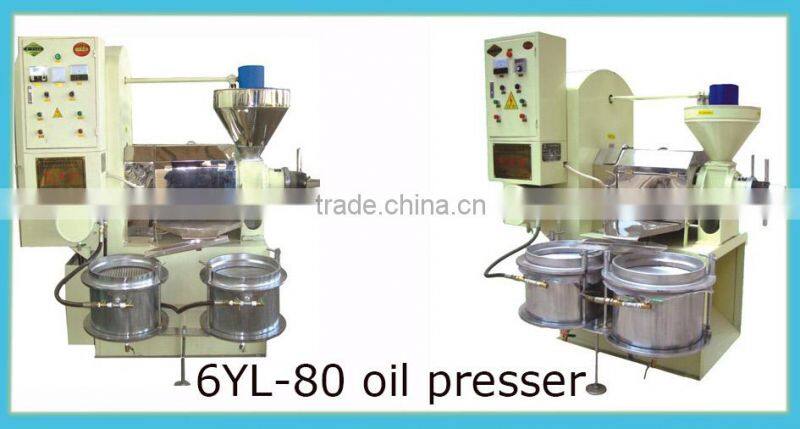

Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-150 double | 6YL-185 |
Spiral diameter | Φ 81mm | Φ 101mm | Φ 120mm | Φ 83x2mm | Φ 86mm |
Spiral speed | 40-80r/min | 60r/min | 50r/min | 45-85r/min | 40-80r/min |
Power | 5.5/7.5KW | 7.5KW | 11KW | 7.5/11KW | 7.5KW |
Pump power | 0.55KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
Heater power | 3KW | 3KW | 4KW | 4KW | 3KW |
Cold press | 100-150Kg/h | 300-400Kg/h | 350-450Kg/h | 400-450Kg/h | 200-250Kg/h |
Hot press | 150-200kg/h | 350-400kg/h | 400-500kg/h | 450-550kg/h | 250-300kg/h |
Weight | 800Kg | 1000Kg | 1200Kg | 1400Kg | 950Kg |
Dimensions (mm) | 1900x1300x1600 | 1950x1350x1700 | 2000x1350x1700 | 2000x1400x1750 | 1950x1350x1650 |
| Oil yield rate: |
Raw material | Oil content |
Peanut | 44-55% |
Camellia | 58-60% |
Castor seed | 50-70% |
Soybean | 18-21% |
Cotton seed | 33-40% |
Rapeseed | 33-40% |
Sesame seed | 45-50% |
Sunflower seed | 40-50% |
Rice bran | 18-20% |
Safflower seed | 29-45% |
Corn embryo/germ | 30-40% |
Walnut | 40-65% |
Flaxseed/Linseed | 29-44% |
Palm seed | 50-55% |
Coconut | 35-45% |
Quality and Service Commitment:
Our company always put the interests of customers and product quality to the first place,and always
adhere to the"no best,only better" as our purpose. We will be commitment to provide high quality
products with perfect site services and aftersales service.
Now the specific commitments are as follows:
1.Ensure to timely provide complete sets of equipment and accessories.
2.Ensure that one-time installation debugging acceptance.
3.To provide high quality material with preferential price.
4.Priority to provide customer our new craftworks and products.
5.Free training technological operator to ensure the trained staff can operation independently.
6.In the installation process,we will appoint a installation supervision staff on the spot.
7.we will offer an experienced project manager, organize a good installation team for the work of
field installation debugging.
