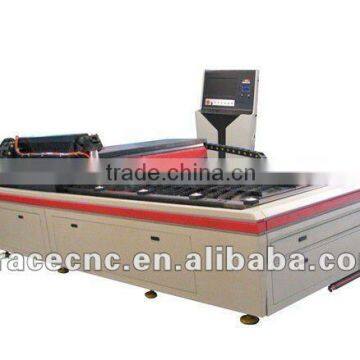

Metal Laser Cutting Machine G1530

SPECIFICATONS

ITEMU

TECHNICAL SPECIFICATIONSU

MACHINE

Model Name

G-150300DT

Travel Method

stationary table , Gantry style

Moving system

Servo motor drive ball screw

Guide

Dual linear guide

Control Method

X, Y,Z axis motorized controlled

Travel Amount

X-axis

1500MM

Y-axis

3000MM

Z-axis

25mm (it's standard) customized by requirements

Feed Rate

X-axis

2500mm/sP2P

Y-axis

2000mm/sP2P

rapid speed

X-axis

800mm/s

Y-axis

600mm/s

Maximum Worksheet Loading Capacity

700kg

Machine weight

3000kg

Repeatability Positioning Accuracy

0.01mm

Drive Feed Method

position control / AC servo motor

Machine Table Height

900mm

Cutting bed

Sawtooth metal strip bed

Focus type

Automatic following focus

Power Supply ( only for machine)

380V 50/60HZ

Power consuption

30KW

LASER OSCILLATORU

Laser Oscillation Method

Lamp pump YAG

Laser power

500W/650W

Stability

±3%

Frequency

1-300HZ

Wavelength

1064nm

Single pulse energy

125J

Pulse width

0.3-10ms

Cooling mode

Close loop laser chiller cooling

CNC CONTROL UNITU

CNC Unit

Yaskawa AC servo motor

CNC Control Method

semi-close loop control

Control Functions

X, Ycontrolled (simultaneously controlled)

Input Method

USB, Net port, memory stick

Least Input Increment

0.002mm

Minimum Position detection Accuracy

0.002mm

Program Storage Capacity

128M flash memory in machine

Operating Modes

Windows xp support

Display Function

5 inchi display

Cutting process
Position information
Parameters
design preview

Software

cutting software

Golden Laser self developed software

Nesting software

Golden Laser self developed software

Support format

DXF,DWG,PLT,AI,DST,GLD
