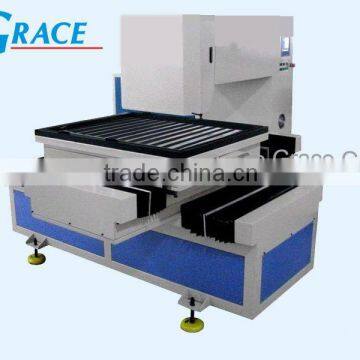

YAG metal laser cutting machine G6040
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | GRACE | |
| Model Number | G6040 |
Product Description
Specifications
1. Cross Slide Working table2.Yaskawa AC servo motor
3.semi-close loop control
4. CE certificate
YAG metal laser cutting machine G6040
Wide variety of materials:
Almost any type of material can be micro-cut. Materials which can be machined include:
metals: stainless steel, hardened steel, copper, aluminium, brass, tungsten, titanium
The list shows materials that we have already worked with. If you don't see your material listed, our R&D facilities are ready to experiment.
(Al) aluminium (Fe) steel and stainless steel (Cu) copper (Ti) titanium (Ni) nickel (pa) palladium (Ta) tantalum (Cr) chromium (Wo) Tungsten (ITO) indium tin oxide (ZnO) zinc oxide
Main Technical Parameters
ITEM |
| TECHNICAL SPECIFICATIONS |
Model Name |
| G6040 |
Travel Method |
| Cross Slide Working table |
Control Method |
| X, Y axis motorized controlled |
Travel Amount | X-axis | 400mm |
| Y-axis | 600mm |
| Z-axis | 120mm (it's standard) customized by requirements |
Feed Rate | X-axis | 2500mm/sP2P |
| Y-axis | 2000mm/sP2P |
rapid speed | X-axis | 400mm/s |
| Y-axis | 600mm/s |
|
|
|
| ||
Maximum Worksheet Loading Capacity |
| 100kg |
Repeatability Positioning Accuracy |
| 0.01mm |
Least Command Increment |
| 0.002mm |
Drive Feed Method |
| position control / AC servo motor |
Machine Table Height |
| 900mm |
Power Supply ( only for machine) |
| 380V 50HZ/ 3 Phases |
| ||
LASER OSCILLATORU |
|
|
Laser Oscillation Method |
| Lamp pump YAG |
Laser Output | Output (Rated) | 500W,650W |
| Stability | 3% |
| Frequency | 1-300HZ |
Output Beam | Wavelength | 1064nm |
| Mode | multi mode |
| Diameter | 0.1mm after focus |
| ||
CNC CONTROL UNIT |
|
|
CNC Unit |
| Yaskawa AC servo motor |
CNC Control Method |
| semi-close loop control |
Control Functions |
| X, Ycontrolled (simultaneously controlled) |
Input Method |
| USB, Net port, memory stick |
Least Input Increment |
| 0.002mm |
Minimum Position detection Accuracy |
| 0.002mm |
Program Storage Capacity |
| 128M flash memory in machine |
Operating Modes |
| Windows xp support |
Display Function |
| Cutting process |
| ||
I/O Interface |
| RS232C |
Display |
| 5 inch screen display |
metal cutting:
control system:
samples:
CERTIFICATE:
