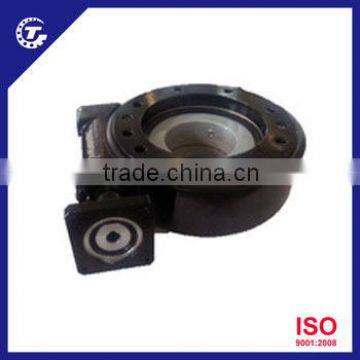

12 inch single axis enclosed slewing drive for 50Kw panel's solar bracket
- 5000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card Other
You May Like
-
antenna planetary gearbox slewing drive
-
antenna dual axis slewing drive
-
Working platform driven enclosed worm gear slewing drive
-
17 inch dual axis enclosed slewing drive with single flange for solar sytstem
-
(Azimuth)17 inch dual axis enclosed slewing drive with single flange for solar sytstem
-
(Elevation)17 inch dual axis enclosed slewing drive with single flange for solar sytstem
Product Details
| Place of Origin | Beijing, China | Brand Name | TITANHORSE | |
| Model Number | A12 | Type | Other, self-lock |
Product Description
Slew drive
Enclosed slewing drives are the most popular model of Titanhorse’ slewing drives and can help power movement in machinery such as wind turbines, military equipment, digger derricks, solar trackers, medical equipment, forestry, waste management and industrial positioners. The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing, such that they have total protection from the elements. The Enclosed Drive is also advantageous if you’re mounting inside so as not to see the parts in motion, or to avoid injuring workers working in close proximity.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed comes with Titahorse’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed SE comes with Kinematics’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each SE is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.
Friendship Recommendation
- Vertical installation
It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
- Horizontal installation
It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
Generally, we use the standed wooden case to shipping slewing drive.
