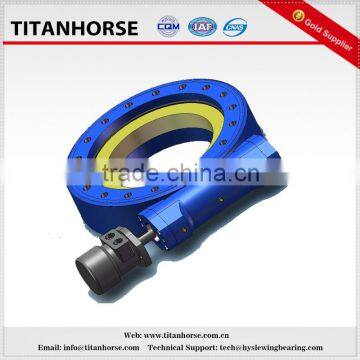

Clamps rotated by Titanhorse 14 inch worm gear slewing drive with hydraulic motor
Negotiable
/ Set
1 Set(Min. Order)
- China
- T/T Other
You May Like
Product Details
| Gearing Arrangement | Worm | Output Torque | 6,497N.m | |
| Rated Power | A14 | Input Speed | 3-5rpm | |
| Output Speed | less than 2.5rpm | Place of Origin | Beijing, China | |
| Model Number | A14 | Brand Name | TITANHORSE |
Product Description
Slewing drive
TITANHORSE Slewing Drive:
1. Own ring forging plant, gurantee your orders delivery on time with lower cost.
2. 5S whorkshop management, ISO standard, make sure all the slewing drives exported with high quantity.
We have 3'', 5'', 7'', 9'' even 21'' five sizes dual axis slewing drive, and 3''-25'' nine sizes single axis slewing drive.
Company Information
Production flow
Motor
Product's Parameters
| Brand | Titanhorse |
| Model | A14 (14 inch single axis slewing drive) |
| Rated Output Speed | 0.79rpm |
| Rated Ouput Torque | 7254 N.m |
| Output Torque | |
| Tilting Moment Torque(Max.) | 67.8 kN.m |
| Holding Torque | 48 kN.m |
| Static Axial Load | 920 kN |
| Static Radial Load | |
| Dynamic Axial Load | |
| Dynamic Radial Load | 343 kN |
| Ratio Of Worm Gear | 86:1 |
| Tracking Precision | <0.13° |
| Application | solar tracker, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc. |
| Motor | DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc. |
| Life-time | 25-30 years |
| Materials | 42Crmo/ 50Mn |
| Seal | Grease Seal |
| Colour | according to your requirements |
