Home > Products > Slew Drive > Titanhorse 14 inch worm gear slew drive for CPV solar trcking system

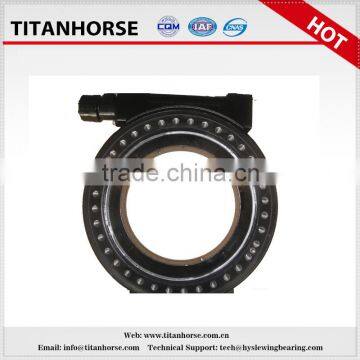

Titanhorse 14 inch worm gear slew drive for CPV solar trcking system
- China
- T/T Other
You May Like
-
Rotation of welding machinery drived by Titanhorse SE14 slewing drive
-
vertical slew drive connect with flange
-
elevation install slew drive with flange and encoder for solar tracker
-
two axis slewing drive with encoder for two directions rotation
-
Titanhorse 7 inch single axis slewing drive with 220v worm gear motor slewing drive for solar tracking system
-
Titanhorse 7 inch opening-hoursing slewing drive for rotable table
Product Details
| Gearing Arrangement | Worm | Output Torque | 10kN.m | |
| Rated Power | LKA14 | Input Speed | 3-5rpm | |
| Output Speed | less than 2.5rpm | Place of Origin | Beijing, China | |
| Model Number | LKA14 | Brand Name | TITANHORSE |
Product Description
Enclosed slewing drives are the most popular model of Titanhorse’ slewing drives and can help power movement in machinery such as wind turbines, military equipment, digger derricks, solar trackers, medical equipment, forestry, waste management and industrial positioners. The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing, such that they have total protection from the elements. The Enclosed Drive is also advantageous if you’re mounting inside so as not to see the parts in motion, or to avoid injuring workers working in close proximity.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed comes with Titahorse’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1
Friendship Recommendation
- Vertical installation
It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
- Horizontal installation
It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
The slewing bearing/ring is a basic mechancial component for engineering machinery, mining machinery, construction machinery and other machineries that require relative rotary motions of two parts.
The slewing bearign /ring severs to transmit movement, bears load, and connect.
