Home > Products > HIGH SHEAR EMULSIFIERS > 2015 Emulsifier Pump

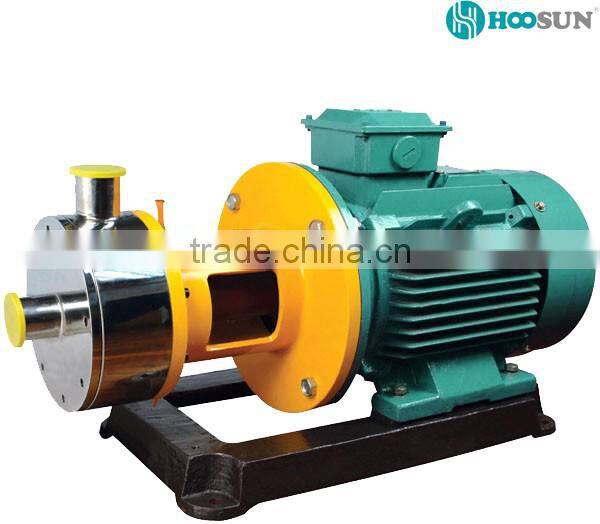

2015 Emulsifier Pump
- T/T
You May Like
-
For Sale High Shear Cosmetics Homogenizer/mixer/emulsifier/disperser
-
Price Homogenizer Pump, Emulsifier Pump, Emulsifying Machine
-
Hot Sale Emulsifier Pump Cosmetics Homogenizer/mixer/emulsifier/disperser
-
HOOSUN Hot Sell Price Food Emulsifier
-
Food Emulsifier Machine Made in China High Quality With Good Price
-
Batch High Shear Emulsifier Machine for Food Grade
Product Details
| Condition | New | Mixer Type | Other, high shear stator and rotator | |
| Product Type | Cosmetic | Application | Liquid | |
| Place of Origin | Shanghai, China | Brand Name | HOOSUN | |
| Model Number | HSEP-S | Voltage | 380V/60HZ,can be customized | |
| Dimension(L*W*H) | Depends | Certification | CE | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction
In-line high shear emulsifier is a continuous production type emulsifier with high efficiency.
Working Principle
Through the precise combination of the stators and rotors, the emulsifying pump is able to produce a powerful shear force during the high speed rotation, which can achieve the effect of materials mixing, crushing and emulsifying.
Functions
-As a high efficient inline mixer, it can be installed along the pipes to process liquid materials continuously.
-Besides, the pump also performs the transportation of low viscosity liquid.
-By correct proportion, powder and liquid could be mixed and processed continuously inside the pump.
Characteristics
1. A set of rotors and stators in the working chamber, configured from two layers to six layers.
2. Optional jacket for materials heating or cooling
3. Max. capacity can be 1~15m³/h (water as medial)
4. High range of working temperature
5. Materials contacting parts are made of SS304 or SS316L, conform to sanitary standard.
6. Connecting type can be flange or fast-joint.
Details
| Model | Power(kw) | Speed(rpm) | Inlet | Outlet | Capacity(m3/h) |
| HSEP-S1.1/1/6 | 1.1 | 2900 | DN32 | DN25 | 0.5 |
| HSEP-S4/1/6 | 4 | 2900 | DN40 | DN32 | 5 |
| HSEP-S7.5/1/6 | 7.5 | 2900 | DN50 | DN40 | 7 |
| HSEP-S11/1/6 | 11 | 1440 | DN50 | DN50 | 10 |
| HSEP-S15/1/6 | 15 | 1440 | DN65 | DN50 | 13 |
| HSEP-S18.5/1/6 | 18.5 | 1440 | DN65 | DN50 | 16 |
| HSEP-S22/1/6 | 22 | 1440 | DN80 | DN65 | 20 |
Picture Info
