Hot Sale Lined High Shear Daily Chemical Emulsifier Machine
- T/T
You May Like
Product Details
| Condition | New | Mixer Type | Other, high shear stator and rotator | |
| Product Type | Cosmetic | Application | Liquid | |
| Place of Origin | Shanghai, China | Brand Name | HOOSUN | |
| Model Number | HSEP-T | Voltage | 380V/60HZ,can be customized | |
| Dimension(L*W*H) | Depends on actual size | Certification | CE | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction
In-line high shear emulsifier is a continuous production type emulsifier with high efficiency.
Working Principle
Through the precise combination of the stators and rotors, the emulsifying pump is able to produce a powerful shear force during the high speed rotation, which can achieve the effect of materials mixing, crushing and emulsifying.
Functions
-As a high efficient inline mixer, it can be installed along the pipes to process liquid materials continuously.
-Besides, the pump also performs the transportation of low viscosity liquid.
-By correct proportion, powder and liquid could be mixed and processed continuously inside the pump.
Characteristics

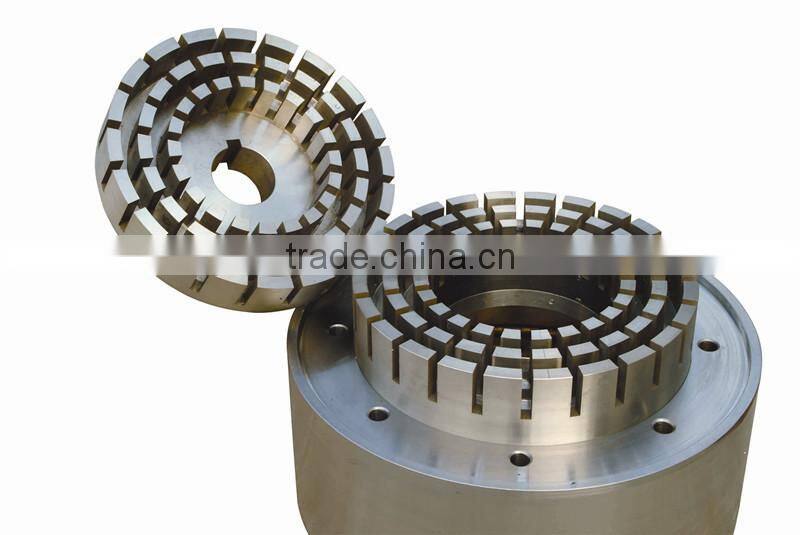

-three sets of rotors and stators in the working chamber
-optional jacket for heating and cooling
-wide range of capacity from 1-80m3/h.
-High range of working temperature
-Materials contacting parts are made of SS304 or SS316L, conform to sanitary standard.
-Connecting type can be flange or fast-joint.
Details
| Model | Power(kw) | Speed(rpm) | Inlet | Outlet | Capacity(m3/h) |
| HSEP-T4/3 | 4 | 2900 | DN40 | DN32 | 4 |
| HSEP-T7.5/3 | 7.5 | 2900 | DN50 | DN40 | 6 |
| HSEP-T11/3 | 11 | 1440 | DN50 | DN50 | 9 |
| HSEP-T15/3 | 15 | 1440 | DN65 | DN50 | 12 |
| HSEP-T18.5/3 | 18.5 | 1440 | DN65 | DN50 | 14 |
| HSEP-T22/3 | 22 | 1440 | DN80 | DN65 | 18 |
