XCMG 130 Ton truck crane QY130K with competitive price and good quality

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Rated Loading Capacity	130 ton
Rated Lifting Moment	5003 KN.m	Max. Lifting Load	130ton
Max. Lifting Height	86m	Span	7.56 m / 7.6m
Place of Origin	Jiangsu, China	Brand Name	XCMG
Model Number	QY130k	Certification	ISO/CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

XCMG 130 Ton truck crane QY130K with competitive price and good quality

Product Description

Features of XCMG 130 Ton truck crane QY130K with competitive price and good quality

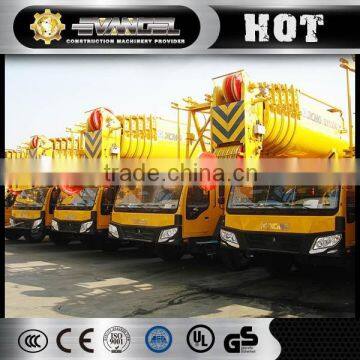

XCMG Truck Crane 130 Ton (QY130K)

Unique double-longitudinal arm suspension system of rear axle, and axles 1, 2, 3 and 6 for steering, axles 3, 5 and 6 for driving. Carrier has features of flexible steering and powerful driving force.
Specialized boom of U-type cross section has features of light deadweight, better strength and strong lifting capacity.
Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
Mature and advanced single cylinder pinning telescoping system.
Unique self-assembled counterweight system with multi- variants contributes to approximate 600 lifting applications under boom working conditions.
Unique patent technology of Jib assist erecting device.
Exclusive MATLAB simulation optimized control program and speed staging function contribute to smooth motion, stable control and high efficient operation.
Intelligent fault self-diagnosis system is available.
Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.

Parameters of XCMG 130 Ton truck crane QY130K with competitive price and good quality

Category	Item			Unit	Parameter
Main Lifting Performance	Max. total rated lifting capacity			t	130
	Min. rated working radius			m	3
	Turning radius at turntable tail (counterweight)			mm	4600
	Max. load moment	Base boom		kN.m	5003
	Max. load moment	Fully-extended boom		kN.m	2090
	Outrigger span	Longitudinal		m	7.56
	Outrigger span	Lateral		m	7.6(5.2)
	Hoist height	Base boom		m	13
		Fully-extended boom		m	58
		Fully-extended boom +28m Jib		m	86
	Boom length	Base boom		m	13
		Fully-extended boom		m	58
		Fully-extended boom +28m Jib		m	86
	Jib offset angle			°	0, 15, 30
Working Speed	Elevating time	Boom raising		s	60
	Telescoping time	Fully extended		s	420
	Telescoping time	Fully retracted		s	400
	Max. swing speed			r/min	1.8
	Outrigger extending and retracting time	Outrigger beam	Extending Simultaneously	s	50
		Outrigger beam	Retracting Simultaneously	s	40
		Outrigger jack	Extending Simultaneously	s	50
		Outrigger jack	Retracting Simultaneously	s	45
	Hoist speed (single line, 4th layer)	Main winch	No load	m/min	115
	Hoist speed (single line, 4th layer)	Auxiliary winch	No load	m/min	115
Noise	Exterior noise level			dB (A)	≤118
Noise	Noise level at seated position			dB (A)	≤90
