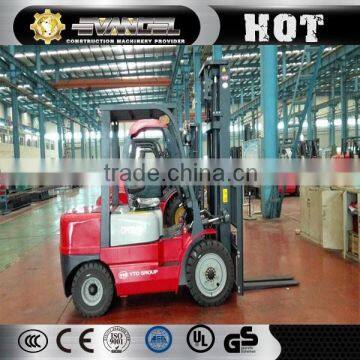

Diesel Forklift, 5 Ton YTO CPCD50 Forklift Price

FOB Price

US$ 16,000 - 17,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YTO	Model Number	CPCD50
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	5TON	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	125MM	Overall Dimensions	438011502130mm
Certification	CE ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Evangel Industrial (Shanghai) Co., Ltd. Evangel International Machinery Ltd.

Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109-801 Fax: 86-21-62120109 Website:
Contact: Helen Wu Skype:19910215
Speciality parameter	Model				Unit	CPCD50	CPCD100
	Power type					Diesel	Diesel
	Rated capacity				kg	5000	10000
	Load center			d	mm	600	600
	Lift height			h2	mm	3000	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12	6/12
	Wheel-base			L4	mm	2250	2800
	Tread(front/rear)			b4/b5	mm	1470/1700	1600/1720
Performance parameter	Travel brake					Hydraulic-Foot pedal	Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level	Mechanical-Hand level
	Lift speed(with/without load)				mm/s	350/380	310/340
	Lower speed (with/without load)				mm/s	(with load)<600 ,(without load)>300	(with load)<600 (without load)>300
	Travel speed (with/without load)				km/h	20/21	23/26
	Max. gradeability (with load)				%	20	20
	Max. Towing (with/without load)				kN	42/32	50/40
Power, transmission and others	Engine	Model				LR4B3-24	LR6B5-22
		Manufacturer				YTO
		Rated power			kw	64/2400	88.2/2200
		Max. rotation			Nm/rpm	288/1700	440/1600
		Displacement			L	4.578	7.42
	Battery	Voltage			V	24	24
	Battery	Capacity			Ah	2×100	2×100
	Gearbox	Transmission type				Hydraulic	Hydraulic
	Gearbox	Gears,speed (front/rear)				Ⅱ/Ⅱ	Ⅱ/Ⅱ
	Tire	type				Pneumatic tyre	Pneumatic tyre
		Model	Front			8.25-15-14PR	9.00-20-14PR
		Model	Rear			8.25-15-14PR	9.00-20-14PR
Others	Self.weight				kg	8100	12500
	Free lift height			h4	mm	195	165
	Fork	Thickness×Width×Length		c×b×a	mm	60×150×1220	80×175×1220
	Overall dimensions	Overall length(without forks)		L2	mm	3510	4240
		Overall width		b1	mm	1995	2165
		Overall height	Extended height(mast)	h1	mm	4365	4330
			Lower height(mast)	h3	mm	2500	2850
			Overhead guard	h7	mm	2470	2575
	Min. turning radius			Wa	mm	3300	3950
	Min. under ground clearance	Under mast		m1	mm	195	245
	Min. under ground clearance	Center of wheel-base		m2	mm	200	255
