Split Core Test AC Clamp Current Sensor
USD $50 - $100
/ Piece
1 Piece(Min.Order)
- Beijing
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | GFUVE | |
| Model Number | XQ13 | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description

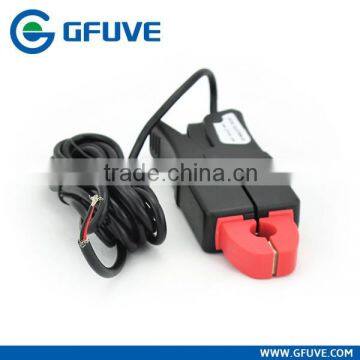

Split Core Test AC Clamp Current Sensor
Product Description
XQ13 HIGH PERFORMANCE HANDHELD CLAMP ON CURRENT TRANSDUCER
The model XQ13 handheld clamp on current transducer is suitable for 10A-100A cable online measurement, it belongs to high performance transducer field.
FEATURES
- Suitable for 10A-100A cable online measurement.
- Holding wire diameter: φ13mm
- Dimension: 52.5mm×136.5mm×28mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
PARAMETERS
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 100A AC |
| Secondary current | 0 - 100mA AC (customized) |
| Max. Cont. Input current | 120A |
| Over voltage category | CAT III 600V |
| Output signal | 100mA AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 48 x 179 x 27 |
| Weight (g) | 280 |
| Holding wire diameter (mm) | φ13 |
| Max. jaw opening (mm) | 13 |
