Top Quality CLAMP-ON Q8 ac current clamp
USD $10 - $100
/ Piece
1 Piece(Min.Order)
- 1000000 Piece / Pieces per Month
- Beijing shenzhen HK
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | GFUVE | |
| Model Number | Q8 | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Top Quality CLAMP-ON Q8 ac current clamp
Product Description

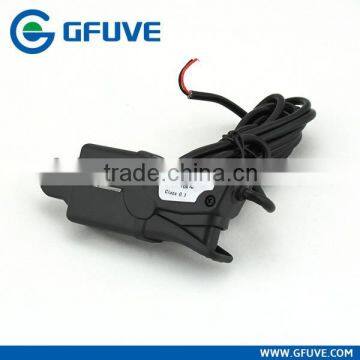

Q8 HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR
The model Q8 copper wire clamp-on ac current sensor is suitable for 5A, 10A cable online measurement, the user friendly shape make It easily clamp onto cables
FEATURES
- Suitable for 5A, 10A cable online measurement.
- Holding wire diameter: φ8mm
- Dimension: 42.6mm × 122.5mm × 23mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
PARAMETERS
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5% |
| Primary current | 0 - 10A AC |
| Secondary current | 0 - 10mA AC (customized) |
| Max. Cont. Input current | 12 A |
| Load capacity | ≤4Ω |
| Over voltage category | CAT III 600V |
| Output signal | 10mA AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 42.6× 122.5 × 23 |
| Weight (g) | 225 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
