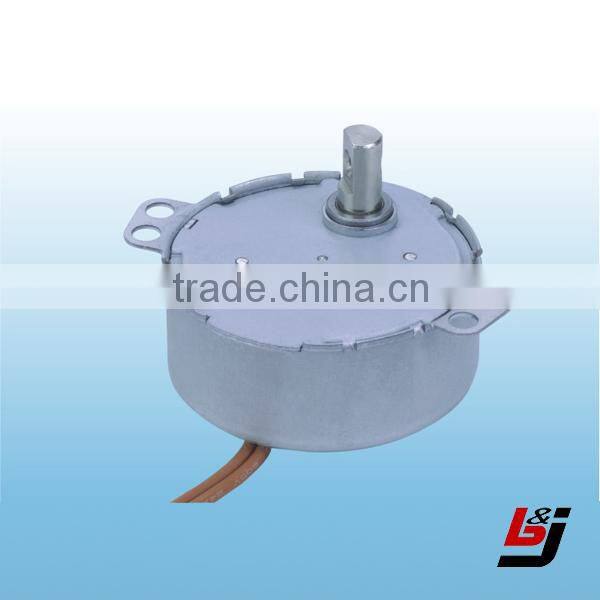

1 Rpm 120v ac 60hz Fan Motor

Synchronous Grill Motor

ac Synchronous Motor

1.Typical Applications:

1)       Home appliance:Electric fan,air conditioner turning leave,Microwave turing plate,Quartz heater,Dishwasher,Can opener,Knife sharpener,washing machine,citrus press,juicer,etc.

2)       Electric indoor and outdoor decorations:Rotating electric table,Stage curtain,recorder turing light,decoration lamp,Optical fiber turing lamp,Christmas tree,Rotating electric Advertisements and shelves,etc.

3)       Electric machinery:Vending machine,automatic electric instruments And meters,Rotating TV antenna,etc.

4)       Scientiific and teching devices:Rotating electric models,Electric curtains,etc.

5)       Medical equipments:Stirrer,pump,etc.

6)       Industrial area:Electric transit instrument,etc.

2.Feature:

1)         Stable speed

2)         Long Lifespan

3)         High torque

4)         High efficiency

5)         Low noise

6)         Low vibration

7)         Rotation direction can be random,directional (CW or CCW) or reversible(controlled by wire connecting method)

8)         Lead out by wire or terminal are both available

3. Electrical Specification:

1)         Rated Voltage: AC 12V,24V,48V,110V,220V

2)         Rated Frequency:50/60 Hz

3)         Rated Power Consumption:3.5 ± 0.5 Watts

4)         Current Consumption:30 ± 5 mA

5)         Withstand Voltage:1500 VAC / 1Min

6)         Insulation Resistance:Over 100 MΩ at 500 VDC

7)         Insulation Class E

4.Mechanical Specification:

1)         Direction of Rotation:Single CW,Single CCW,and Free Direction

2)         Output Speed:0.1 ~ 60 rpm

3)         Working Torque: 1.5kg-cm ~ 20 kg-cm

5.General Specification:

1)         Operating Temp.Range: -10~+60°C

2)         Temperature Rise Range: 60K MAX

3)         Expectant Lifespan:Approx.10,000 hours under normal load torque and normal operation

4)         Net Weight:150 grams

5)         Lead Wire:As UL standard,specific length or connector is available

6)         Operating Noise:Approx.40 db Max.form 30 cm distance

7)         Outline Size:Diametr:φ49.0 mm,Height:18.5mm,21mm, 24 mm

8)         Package:120pcs/Carton,380 x 280 x 320 mm,15kgs
