Home > Products > Synchronous Motor > Practical Use Reasonable Price 24v Low-speed ac Motor
Practical Use Reasonable Price 24v Low-speed ac Motor
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | BJ | |
| Model Number | TY-49BT | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | |
| Certification | CCC, CE, ROHS, UL, VDE | Type | Micro Motor | |
| Torque | 1~15kg-cm | Construction | Permanent Magnet | |
| Commutation | Brushless | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 1/10,1/5,1,2.5,3,3.3,4,5,6,7.5,10,12,15,30 rpm | Output Power | less than 4 watts, 3~3.5 Watts | |
| Voltage(V) | AC6V,12V,24V,100V,110-120V,220-240V |
Product Description

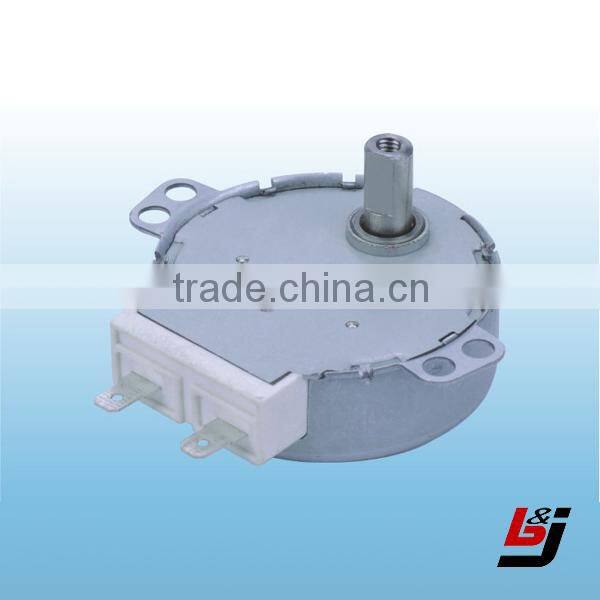

Synchronous Grill Moto
ac Synchronous Motor
1.Typical Applications:
1) Home appliance:Electric fan,air conditioner turning leave,Microwave turing plate,Quartz heater,Dishwasher,Can opener,Knife sharpener,washing machine,citrus press,juicer,etc.
2) Electric indoor and outdoor decorations:Rotating electric table,Stage curtain,recorder turing light,decoration lamp,Optical fiber turing lamp,Christmas tree,Rotating electric Advertisements and shelves,etc.
3) Electric machinery:Vending machine,automatic electric instruments And meters,Rotating TV antenna,etc.
4) Scientiific and teching devices:Rotating electric models,Electric curtains,etc.
5) Medical equipments:Stirrer,pump,etc.
6) Industrial area:Electric transit instrument,etc.
2.Feature:
1) Stable speed
2) Long Lifespan
3) High torque
4) High efficiency
5) Low noise
6) Low vibration
7) Rotation direction can be random,directional (CW or CCW) or reversible(controlled by wire connecting method)
8) Lead out by wire or terminal are both available
3. Electrical Specification:
1) Rated Voltage: AC 12V,24V,48V,110V,220V
2) Rated Frequency:50/60 Hz
3) Rated Power Consumption:3.5 ± 0.5 Watts
4) Current Consumption:30 ± 5 mA
5) Withstand Voltage:1500 VAC / 1Min
6) Insulation Resistance:Over 100 MΩ at 500 VDC
7) Insulation Class E
4.General Specification:
1) Operating Temp.Range: -10~+60°C
2) Temperature Rise Range: 60K MAX
3) Expectant Lifespan:Approx.10,000 hours under normal load torque and normal operation
4) Net Weight:150 grams
5) Lead Wire:As UL standard,specific length or connector is available
6) Operating Noise:Approx.40 db Max.form 30 cm distance
7) Outline Size:Diametr:φ49.0 mm,Height:18.5mm,21mm, 24 mm
8) Package:120pcs/Carton,380 x 280 x 320 mm,15kgs
Rated Voltag | AC6V,12V,24V,100V,110-120V,220-240V | Dieelectric Stength | 1500VAC/1min |
Power Consumption | ≤4 Watts | Noise | <40dB |
Input Current | <25mA | Coil Temperature Rise | ≤60K |
Rated Frequency | 50/60Hz | Insulation Class | E |
Speed | 0.8,2.5,3,3.3,4,5,6,7.5,10,12.5,15,18 rpm | Insulated Electricity Power | 1500 VAC / 1Min |
Running Torque | 1.5 kg-cm ~ 20kg-cm | Direction of Rotation | CW,CCW or Free |
Insulation Resistance | >100MΩ |
|
|
Our Company
Our company has specialized in manufacturing all kinds of permanent magnet synchronous motors and mechanical timers for electrical appliances since 1990. We have brilliant experience of more than 20 years in producing these categories.
1.Package:150pcs/Carton,380 x 280 x 320 mm,15kgs
2.Shiping: By Express (FedEx,DHL, UPS, ARAMEX), By Air or By Sea
Will finally depends on sales packaging and customer demand !
Quality assurance: All the products will go through several checks during production.
Manufactuer's price: Factory direct sale,competitive price.
1.Protection of your sales area, ideas of design and all your private information.
2.Samples can be delivered in 5 days.
3.We have own manufactory, the capability and quality are no problem.
1.How to buy B&J products?
You can directly contact skype or email. We will respond with quick service as soon as possible.
2.Can B&J do custom assembly ?
B&J has gained a lot of experience on all kinds of permanent magnet synchronous motor. The shape of shaft, length of connecting wire can be designed and manufacted as per client's requirements. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
3.What is Signcomplex lead time?
Usually we ship orders in 20 days upon receipt of payment. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
4.What is the advantages of B&J products?
1) B&J produce all kinds of motor ourself,so we can control the led quality and price in the best.
2) B&J have professional and advanced equipment to produce the best price for you
3) B&J have a perfect R&D and Sells department to serve you anytime.
5.What are the best selling products in B&J?
Synchonous Motor(TY49 series); Mechanical Timer
6.What is the main market for B&J?
America Russia India Turkey Poland Germany and so on.
