Refrigeration Flexible Hose Tube
- Shanghai; Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | MaiSun | |
| Model Number | MS-013 to MS-400 | Type | Other, Shock Absorber | |
| Application | Refrigeration Parts | Certification | UL |
Product Description
Specifications
1. cleaned and dehydrated;2. sizes can be customized;
4. presser tested and vacuum tested;
5. UL certification;
Features
MAISUN Vibration Absorbers model MS series are designed to install in the suction and discharge lines of air conditioning and refrigeration systems to reduce vibration in the transmission of compressor-induced vibration through system piping.

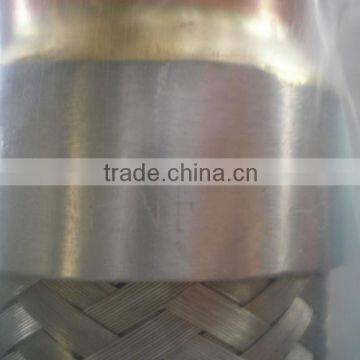

MAISUN Vibration Absorbers are produced by deep pitch corrugated tubing for increased flexibility and vibration absorption, covered by high tensile wire braid for superior strength.
The tubing and braid are reinforced by ferrules at each end, and connected to a female copper tube end by high temperature of brazed alloys.
Each MAISUN Vibration Absorber is tested for pressure and then carefully vacuum tested using a highly sensitive helium mass spectrometer leak detection device.
Specification
1. The tube end is made from copper.
2. HOse and copper tube end are braced welded.
3. All parts have been cleaned and dehydrated for refrigeration service standard.

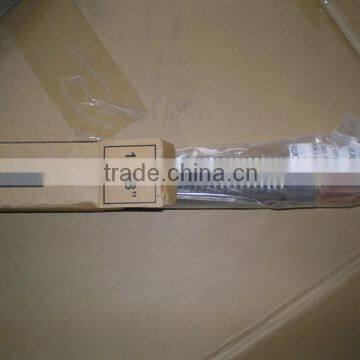

4. Each unit has been tested, cleaned, dehydrated and sealed in plastic film.
5. All basic components have been completely physical and chemical analysed.
6. All basic components have been checked and inspected during various phases of assembly.
7. Precise and sizes.
8. Perfect inspection.
| Model No. | Normal Size (inch) | Dimension(inch) | Max Working Pressure(psig) | Burst Pressure(psig) | ||
| A | B | C | ||||
| MS-013 | 1/4 | 3/4 | 0.51 | 8-1/16 | 500 | 2500 |
| MS-038 | 3/8 | 3/4 | 0.51 | 8-1/2 | 500 | 2500 |
| MS-050 | 1/2 | 3/4 | 0.51 | 9 | 500 | 2500 |
|
 MS-063 | 5/8 | 7/8 | 0.59 | 9-3/4 | 500 | 2500 |
| MS-075 | 3/4 | 1-1/8 | 0.63 | 10-1/2 | 500 | 2500 |
| MS-087 | 7/8 | 1-1/4 | 0.67 | 12 | 500 | 2500 |
| MS-100 | 1-1/8 | 1-1/2 | 0.79 | 13 | 500 | 2500 |
| MS-125 | 1-3/8 | 1-9/16 | 0.79 | 15-1/2 | 500 | 2500 |
| MS-150 | 1-5/8 | 2 | 0.87 | 17 | 500 | 2500 |
| MS-200 | 2-1/8 | 2-3/8 | 1 | 20-1/2 | 390 | 1950 |
| MS-250 | 2-5/8 | 3 | 1 | 24-1/4 | 340 | 1700 |
| MS-300 | 3-1/8 | 3-5/16 | 1 | 27 | 300 | 1500 |
| MS-400 | 4-1/8 | 4-5/16 | 1 | 33 | 175 | 525 |
| Model Number | Flexible Tubing | Wir Braid | Ferrule | Tube end |
| MS-013 Thru 400 | SS 304/Copper | SS 304/Copper | SS 304/Copper | Copper |
