stainless steel flexible metal hose

FOB Price

USD $10.00 - $10.00 / Piece

50 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	MAISUN
Model Number	MS013-MS400	Type	Heat Exchanger Tube
Application	Other, Refrigeration Parts, air conditioning and refrigeration systems	Certification	Other, UL, UL standard

Product Description

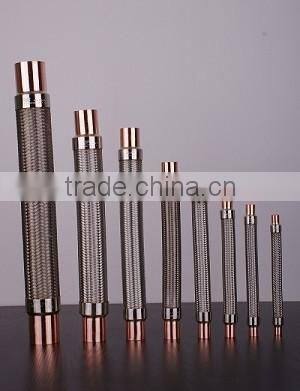

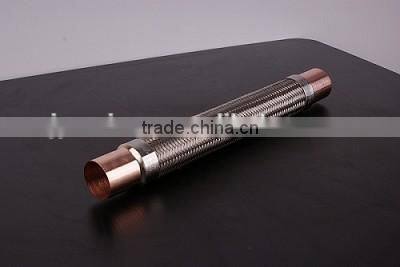

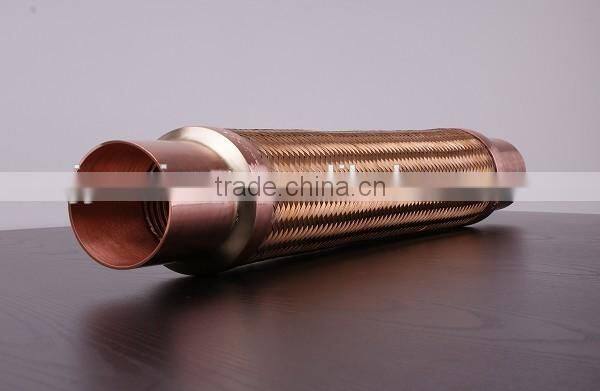

MAISUN Vibration Absorbers, stainless steel flexible metal hose, model MS series are designed to install in the suction and discharge lines of air conditioning and refrigeration systems to reduce vibration in the transmission of compressor-induced vibration through system piping.

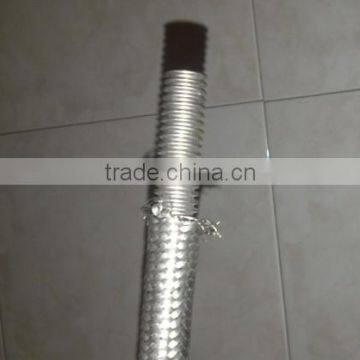

MAISUN Vibration Absorbers are produced by deep pitch corrugated tubing for increased flexibility and vibration absorption, covered by high tensile wire braid for superior strength.

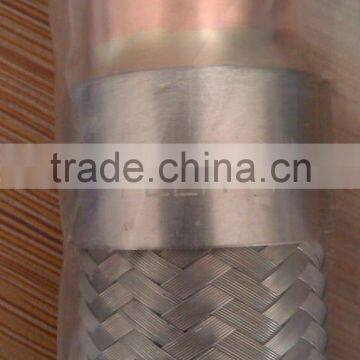

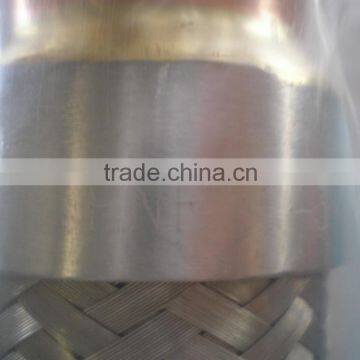

The tubing and braid are reinforced by ferrules at each end, and connected to a female copper tube end by high temperature of brazed alloys.

Each MAISUN Vibration Absorber is tested for pressure and then carefully vacuum tested using a highly sensitive helium mass spectrometer leak detection device.

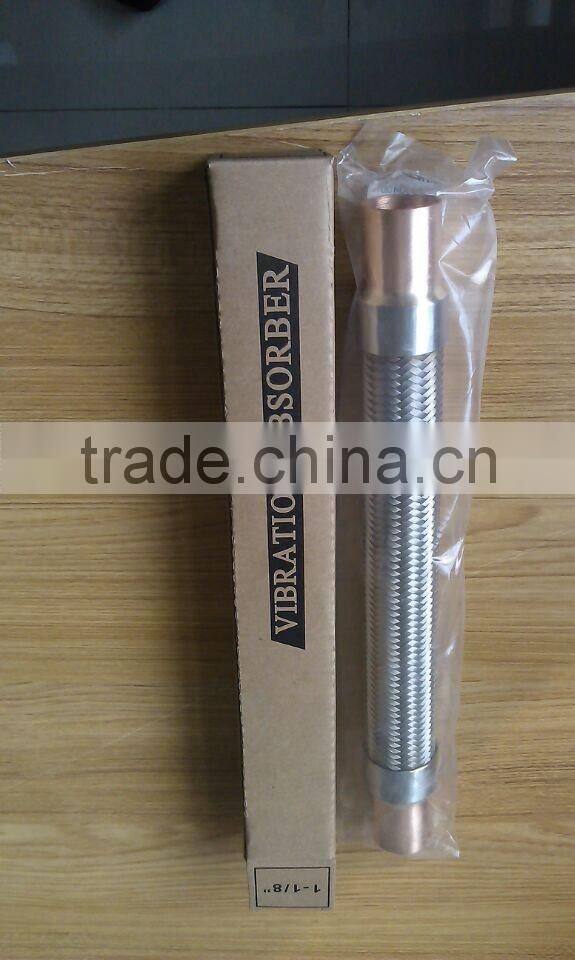

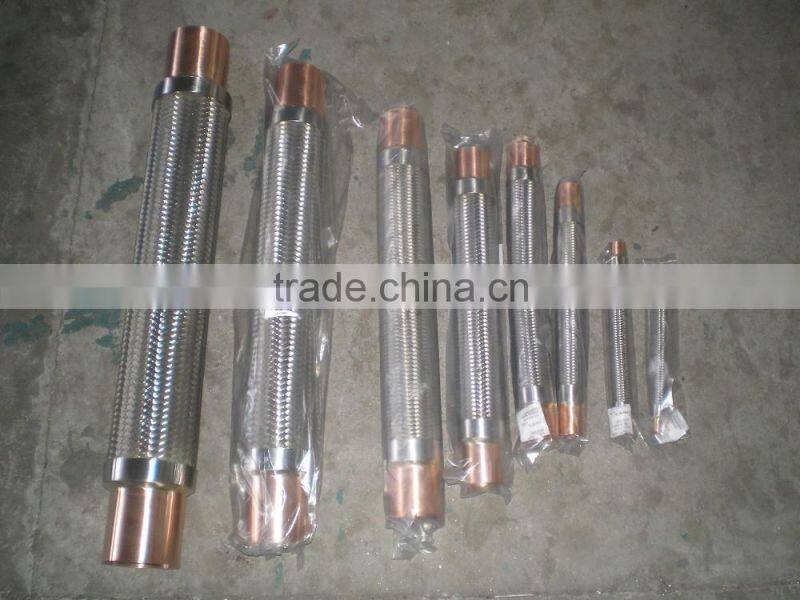

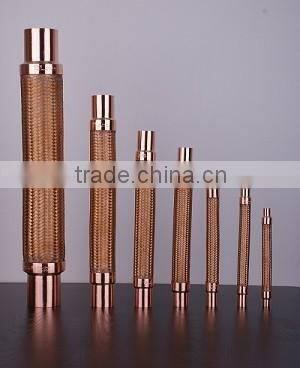

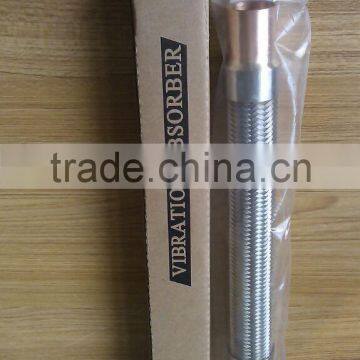

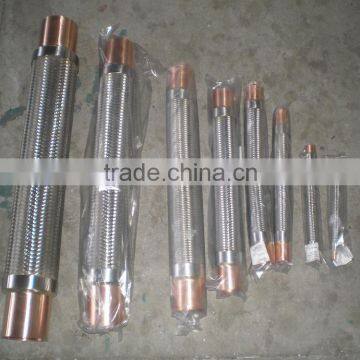

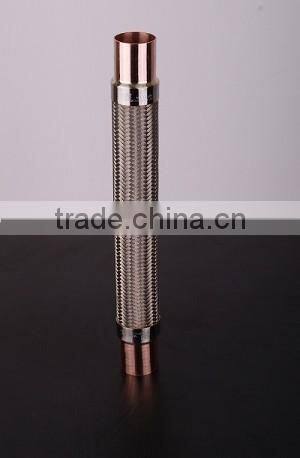

Detailed Images

Model Number	Flexible Tubing	Wir Braid	Ferrule	Tube end
MS-013 Thru 400	SS 304/Copper	SS 304/Copper	SS 304/Copper	Copper

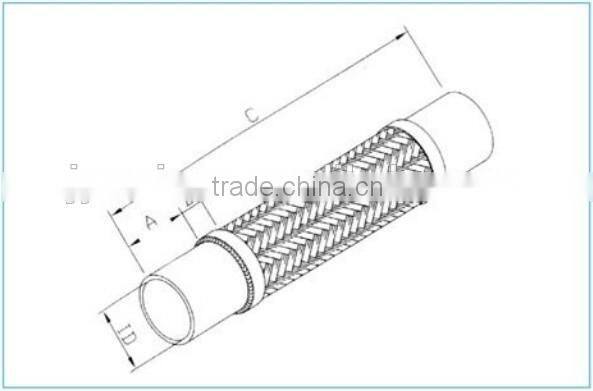

Model No.	Normal Size (inch)	Dimension(inch)			Max Working Pressure (psig)	Burst Pressure (psig)
Model No.	Normal Size (inch)	A	B	C	Max Working Pressure (psig)	Burst Pressure (psig)
MS-013	1/4	3/4	0.51	8-1/16	500	2500
MS-038	3/8	3/4	0.51	8-1/2	500	2500
MS-050	1/2	3/4	0.51	9	500	2500
MS-063	5/8	7/8	0.59	9-3/4	500	2500
MS-075	3/4	1-1/8	0.63	10-1/2	500	2500
MS-087	7/8	1-1/4	0.67	12	500	2500
MS-100	1-1/8	1-1/2	0.79	13	500	2500
MS-125	1-3/8	1-9/16	0.79	15-1/2	500	2500
MS-150	1-5/8	2	0.87	17	500	2500
MS-200	2-1/8	2-3/8	1	20-1/2	390	1950
MS-250	2-5/8	3	1	24-1/4	340	1700
MS-300	3-1/8	3-5/16	1	27	300	1500
MS-400	4-1/8	4-5/16	1	33	175	525

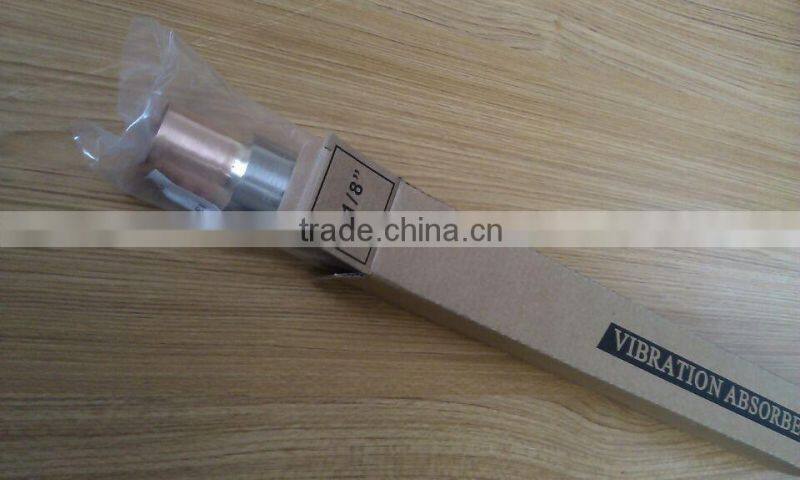

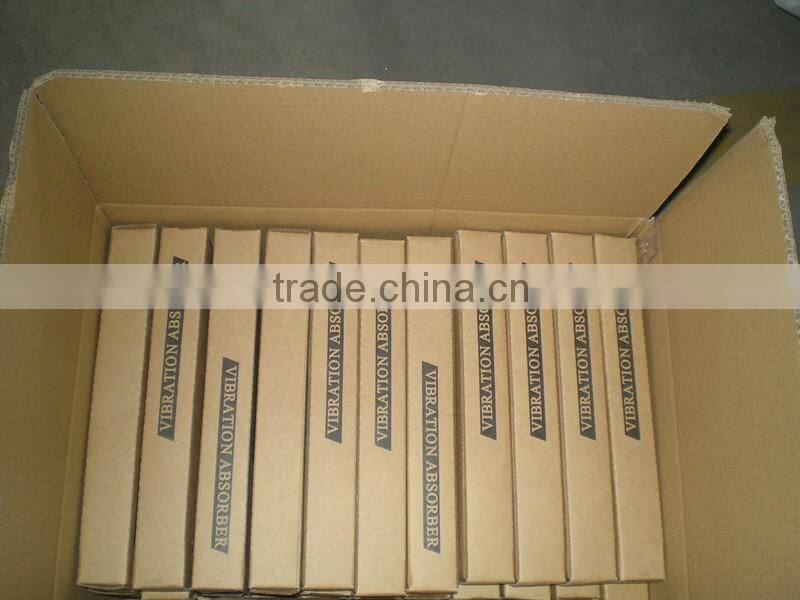

Packing & Delivery
