Bimetal Silver Copper Alloy Electrical Contact Rivets For Various Relay Switches
- 45000000 Piece / Pieces per Month
- Ningbo/ Wenzhou/ Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SAIJIN | |
| Model Number | Electrical Silver Contact |
Product Description

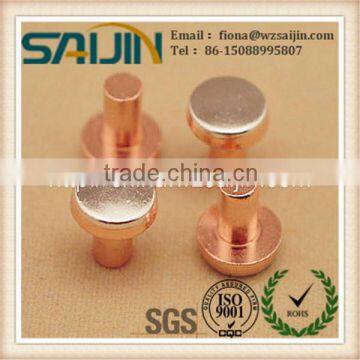

Bimetal Silver Copper Alloy Electrical Contact Rivets For Various Switches
15 Years Experience Bimetal Electrical Silver Contacts producer
Electrical Silver Contact Description
- contacts
- bimetal & trimetal contact are our major
- Bimetal silver contact mainly used in various relays,contactors switches.
- Size
- Thickness: 0.5 to 2.5mm
- or as the client 's request
Item | Diameter of head | Thickness of head | Thickness of composite | Diameter of foot | Length of foot | Radius Of sphere | Angle of mold |
Limited deviation | ±0.05 | ±0.03 | S≤0.4 S>0.4±0.06 | -0.03~-0.08 | ±0.03 | SR≤6±1 | ±2 |
SR>6+1.5 | |||||||
Basic dimension | 2.5 | 0.6,0.8,1.0 | 0.3~0.4 | 1.2,1.5 | 1~2 | 4,6 | 9 |
3.0 | 0.8,1.0,1.2 | 0.35~0.5 | 1.5 | 6,8 | |||
3.5 | 1.5,2.0 | 1~1.3 | |||||
4.0 | 1.0,1.2,1.5 | 2.0 | 8,10 | ||||
4.5 | 2.0,2.5 | ||||||
5.0 | 1.0,1.2 1.5,2.0 | 0.40~0.60 | 2.5 | 10,15 | |||
5.5 | 2.5,3.0 | ||||||
6.0 | 3.0 | 15,20 | |||||
6.5 | 1.2,1.5,2.0 | 0.50~0.70 | 3.0,3.5, | ||||
7.0 | 3.5 | 20,25 | |||||
8.0 | 4.0 |
Materials of Electrical Silver Contacts:
- silver and copper
- Silver material includes: fine silver, AgCdO(12) AgCdO(10 )AgSnO2 (10), AgSnO2 (12) and AgSnO2 (8) etc.
- Brass and Copper
- Main Materials:
Plate and punched materials
Content(wt.%)
≥
Density(g/cm3)
≤
Resistance Rate μ(Ω·cm)
Tensile Strength
N / mm²
Elongating %
≥
Hardness HV (MPa) ≥
AgNi (10) (P.E)
10
10.10
2.00
220~380
8
700~900
AgNi (15) (P.E)
15
9.90
2.20
320~410
6
800~1100
AgCdO(10) (P)
10
10.10
2.10
250~360
12
250~360
AgCdO(15) (P)
15
9.90
2.40
260~400
8
260~400
AgSnO2 (8) (P.E)
8
9.90
2.20
260~380
8
700
AgSnO2( 12) (P.E)
12
9.80
2.60
260~420
6
750
Ag soft
100
10.50
1.67
200
30
300
Ag hard
100
10.50
1.67
360
2
450
AgCu(10)
10
10.30
2.00
280
15
Characteristic of Electrical Silver Contacts:
- Silver contacts and Ag/Cu bimetal silver contacts:Pure silver has a high level of electrical and thermal conductivity, good plasticity and arc corrosion resistance, as well as a very low contact resistance.
- AgCu silver contacts:This contact has good electrical conductivity and its surface is not liable to oxidization.
- AgNi/Cu bimetal silver contact:In low voltage engineering, this contact is widely used in AC switches as an electrical contact.
- AgCdO/Cu bimetal rivet silver contact:This contact includes AgCdO10, AgCdO12, AgCdO15, and this kind of electrical contact has one of the most important materials in silver - metal oxide contact material.
- AgZnO rivet and AgZnO/Cu bimetal rivet contact:The oxide of this contactor is more thermally stable than CdO.
- AgSnO2 and AgSnO2 In2O3 and bimetal rivet contact:AgSnO2 and AgSnO2In2O3 are the ideal environment-protecting materials for substituting AgCdO.
Applications of electrical silver contacts:
Mainly used in various switches, push button switches, rotary switches, limited switches, rocker switches, clocks, relays, contactors, miniature circuit breakers and small switches and temperature controllers.
Production workshop
VARIOUS Electrical Silver Contacts CAN BE PRODUCED IN YOUR REQUIREMENT
We look forward to build a long term relationships with you. If you have any questions, Please feel free to contact us! Also FREE SAMPLE can be sent for your evaluation!
Contact Us
- Wenzhou Saijin Electrical Alloy Co., Ltd.
- Contact namevivian ruan Chat Now
- Phone86-577-85210099
- AddressNo 47,Yushan Road ,haicheng town ,Wenzhou Economy&technology development zone, Wenzhou, Zhejiang
