14*9*1.8 ABB 85% AgW Fixing silver contact tips have rail on it

  14*9*1.8 ABB 85% AgW Fixing silver contact tips have rail on it

Product Overview:
Silver-based contact tips are available in many different versions, with different designs and material contents, using the method of welding and brazing at the bottom side. They are wildly used in various kinds of contactors, relays, circuit breaks and switches, etc.
Main Materials:
AgNi, AgSnO2, AgCu, AgZnO, AgCdO, etc.
Main Applications:
Contactors, Circuit Breakers, Temperature Controllers, Intelligent Switches, etc.

Features of Silver contact tips:

Pure silver sheet:

Features:

(1) Pure silver has extremely high electrical conductivity

(2) Very low contact resistance

(3) Easy to solder

(4) It is easy to produce, so silver is an ideal contact material

(5) It is one of the most widely used materials in small capacity and voltage

AgNi sheet:

Features:

(1) AgNi contact material contains 10% to 40% Ni

(2) Produced by powder metallurgical production, with low and stable contact resistance,
high hardness and mechanical strength
(3) Material transfer in case of DC is very low

(4) High electrical and thermal conductivity

(5) With very low arc erosion. On making higher current, normally asymmetric pairs
with AgC contact materials are applied(

6) Wire of solid and composite rivets produced by powder Sintering-extruding methods

AgSnO2 sheet:

Features:

(1) AgSnO2 is the ideal material of AgCdO and has excellent properties of contacts
(2) AgSnO2 has higher thermal stability

(3) AgSnO2 has higher resistance against welding and erosion than AgCdO material
(4) Non-poisonous. So it is a new material which is empoldered and developed actively over the world

(5) For AgSnO2 contact material, the contact resistance can be controlled within
thelimited range by putting in a small amount of additive of special metal-oxide
(6) In this aspect, contact materials produced by powder metallurgy processing method have higher resistance against arc erosion and less arc bumming than those produced by oxidation processing method

AgZnO sheet:

Features:

(1) ZnO, one type of material in AgznO contact, has comparatively higher thermalstability

(2) The welding resistant and resistance against arc erosion of the contact making
ZnO material a higher product

(3) The AgZnO contact material has higher welding resistance and low arc erosion
with strong magnetic arc blowing under large switching capacity

(4) AgZnO contact material is innocuous and has no pollution to the environment

(5) AgZnO contact material is mostly suitable for contactors and circuit breakerswith

AgCdO sheet:

Features:

(1) AgCdO is a kind of most important contact material among silver metal-oxide materials, and it is widely used for low-voltage devices

(2) When the temperature is higher than 900oC, CdO is sublimated and the contact surface is cooled down in order to reduce and even extinguish
the arc energy. This method can increase the resistance against welding

(3) Contact materials produced by powder sintering-extruding methods have higher
density and low resistance rate.

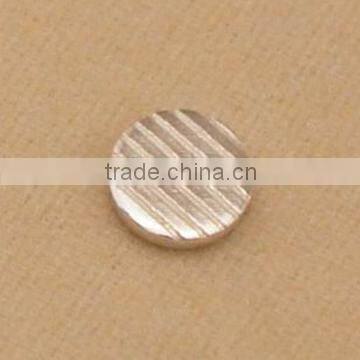

Silver Contact Tips Show:
