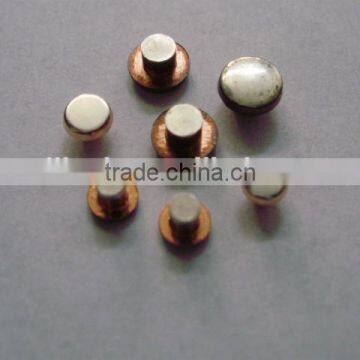

high quality silver electrical contact/contact points/birmetal
- 45000000 Piece / Pieces per Month
- shanghai mingbo
- T/T Credit Card
You May Like
-
contact tip with pretty competitive price
-
ellectric Silver copper bimetal contact rivets for relays
-
relays and contactors bimetal rivets approved RHOS
-
competitive price Bimetal Contact Rivet
-
Chinese factory price silver head copper rivets
-
AgCdO AgCu rivet-type contacts trimetal rivets used in relays and contactors,ect
Product Details
| Place of Origin | China | Brand Name | Saijin | |
| Model Number | Drawing |
Product Description
Specifications
switch contact/contact point/silver alloy contact used in all kinds switches, we are a manufacturer with 15 years experience..
switch contact/contact point/silver alloy contact
Main Application Scope:
Plate and punched materials | Content(wt.%) ≥ | Density(g/cm3) ≤ | Resistance Rate μ(Ω·cm) | Tensile Strength N / mm² | Elongating % ≥ | Hardness HV (MPa) ≥ |
AgNi (10) (P.E) | 10 | 10.10 | 2.00 | 220~380 | 8 | 700~900 |
AgNi (15) (P.E) | 15 | 9.90 | 2.20 | 320~410 | 6 | 800~1100 |
AgCdO(10) (P) | 10 | 10.10 | 2.10 | 250~360 | 12 | 250~360 |
AgCdO(15) (P) | 15 | 9.90 | 2.40 | 260~400 | 8 | 260~400 |
AgSnO2 (8) (P.E) | 8 | 9.90 | 2.20 | 260~380 | 8 | 700 |
AgSnO2( 12) (P.E) | 12 | 9.80 | 2.60 | 260~420 | 6 | 750 |
Ag soft | 100 | 10.50 | 1.67 | 200 | 30 | 300 |
Ag hard | 100 | 10.50 | 1.67 | 360 | 2 | 450 |
AgCu(5) | 5 | 10.40 | 1.96 | 270 | 17 | 600 |
AgCu(10) | 10 | 10.30 | 2.00 | 280 | 15 | 700 |
Thank you for clicking our product, And if this product couldn’t meet your requirements or if you have any other needs, Please visit our website ( ), Also you can click the trademanage to contact us.
